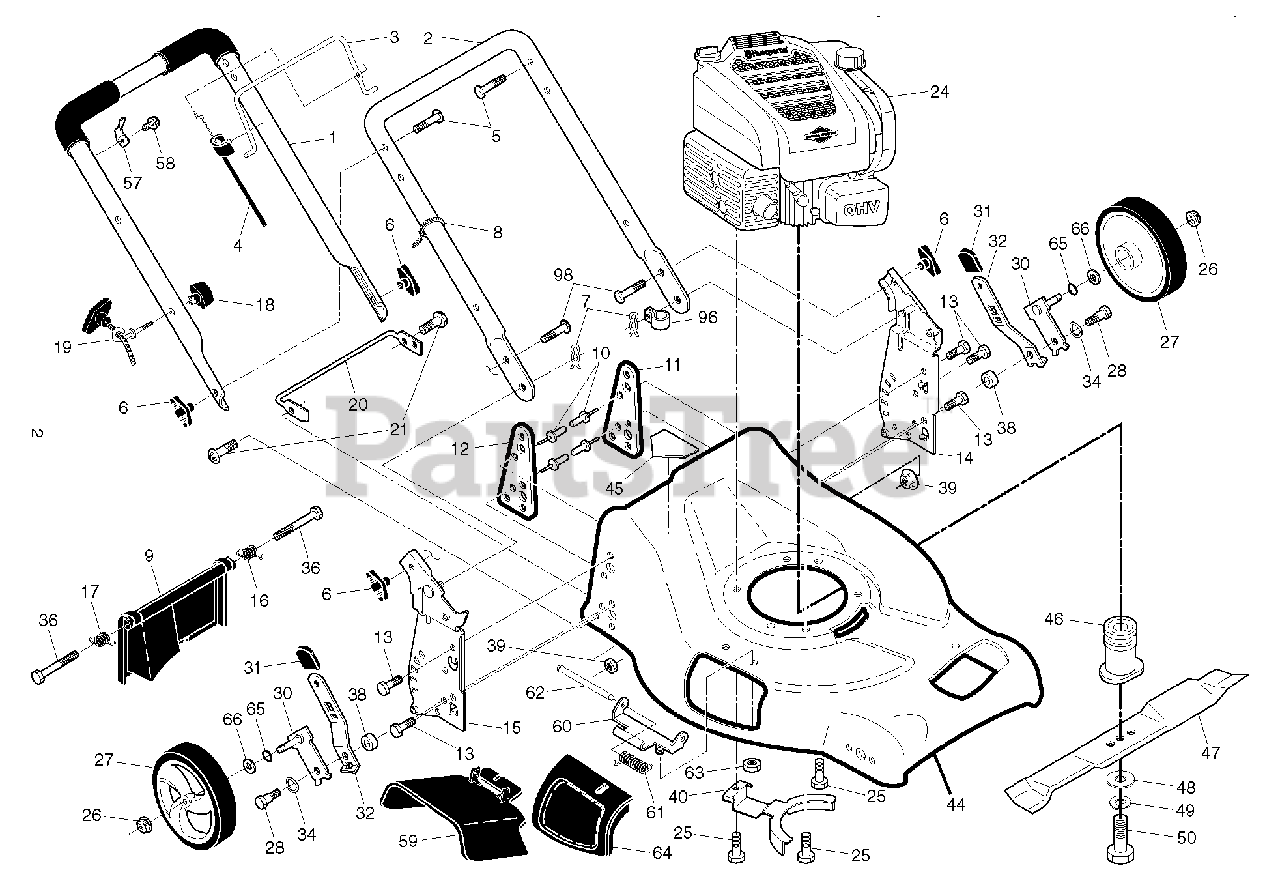

LM 2153 CMDA (961410316-00) - Jonsered Walk-Behind Mower (2015-11) FRAME ENGINE Parts Diagram

Walk-Behind Mower

FRAME ENGINE Parts Diagram

  • Title
1

Jonsered 580638714

HANDLE.ASM.UP.BS.AW2.GRIP.479

Note: . 69

$

$

Not available

2

Jonsered 532434514

HANDLE.LOWER.D-STRAIT.BLACK

$

$

Not available

3

Jonsered 532426505

No Description Available

$46.99

$

Usually ships in 3-10 days

0

4

Jonsered 532415350

CABLE.ASM.ZONE.CONTROL

$17.99

$

In Stock, Qty 16

0

5

Jonsered 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

6

Jonsered 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 13

0

7

Jonsered 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

8

Jonsered 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

9

Jonsered 532406985

REAR DOOR ASSEMBLY
(Superseded to 532401812)

$34.99

$

Usually ships in 3-10 days

0

10

Jonsered 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 532410540

SUPPORT BRACKET LH
(Superseded to 532406573)

Note: LH

$7.49

$

Usually ships in 3-10 days

0

12

Jonsered 532410542

BRACKET.SUPRT.RH.21.FWGD

Note: RH

$7.49

$

Usually ships in 3-10 days

0

13

Jonsered 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

14

Jonsered 532434563

Handle Bracket Assembly, LH 21 Fwgd

Note: LH

$27.99

$

Usually ships in 3-10 days

0

15

Jonsered 532434562

BRACKET.ASM.HANDLE.RT.21.FWGD

Note: RH

$

$

Not available

16

Jonsered 532405417

SPRING.REAR.DOOR.EZ.21.LT

Note: LH

$9.49

$

Usually ships in 3-10 days

0

17

Jonsered 532405418

SPRING.REAR.DOOR.EZ.21.RT

Note: RH

$4.99

$

Usually ships in 3-10 days

0

18

Jonsered 581912601

T-Knob, New Rope Guide

$4.99

$

In Stock, only 2 left!

0

19

Jonsered 581902101

Rope Guide, Blk Zinc Chrom

$

$

Not available

20

Jonsered 532436119

No Description Available

$15.99

$

Usually ships in 3-10 days

0

21

Jonsered 817490416

SCREW
(Superseded to 817640416)

$

$

Not available

24

Jonsered 000000000

No Description Available

Note: B S 103M02-0027-H1 FOR SERVICE PARTS 1-800-233-3723

$

$

Not available

25

Jonsered 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

26

Jonsered 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

27

Jonsered 532402566

No Description Available

$

$

Not available

28

Jonsered 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, only 4 left!

0

30

532412174

$

$

Not available

31

Jonsered 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

32

Jonsered 532410888

SPRING.SELECTOR.21RD.HTTRT.BZP
(Superseded to 532401623)

$4.99

$

Usually ships in 3-10 days

0

34

Jonsered 532401630

WASHER FLAT

$4.99

$

In Stock, only 3 left!

0

$

$

Not available

38

Jonsered 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

39

Jonsered 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

40

Jonsered 532435059

BRACKET.ENG/BELTKEEPER
(Superseded to 532425711)

$

$

Not available

44

Jonsered 532439057

No Description Available

Note: . 10 11 12 45

$

$

Not available

45

Jonsered 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

46

Jonsered 532432279

No Description Available
(Superseded to 583478001)

$34.99

$

Usually ships in 3-10 days

0

47

Jonsered 532199377

BLADE.21.PUSH
(Superseded to 539113233)

$27.99

$

In Stock, only 2 left!

0

48

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

49

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

50

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

57

Jonsered 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

$7.49

$

In Stock, Qty 20+

0

59

Jonsered 532175071

DISCHARGE DEFLECTOR

$20.99

$

Usually ships in 3-10 days

0

60

Jonsered 532175735

HINGE BRACKET ASSEMBLY

$

$

Not available

61

Jonsered 532193000

SPRING.TORSION

$7.49

$

In Stock, only 3 left!

0

62

Jonsered 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 10

0

63

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

64

Jonsered 532175066

DOOR.MULCH.21.REAR

$11.99

$

In Stock, only 1 left!

0

65

Jonsered 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

66

Jonsered 532088348

WASHER PM

$7.49

$

In Stock, Qty 6

0

96

Jonsered 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

98

Jonsered 586212501

Carriage Bolt, 5/16-18 X 5/8

$4.99

$

In Stock, Qty 8

0

Jonsered 532182191

No Description Available

Note: NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0

Jonsered 581006701

BAG.OF.PARTS.21.FWGD.BLK

Note: NOT SHOWN

$

$

Not available
