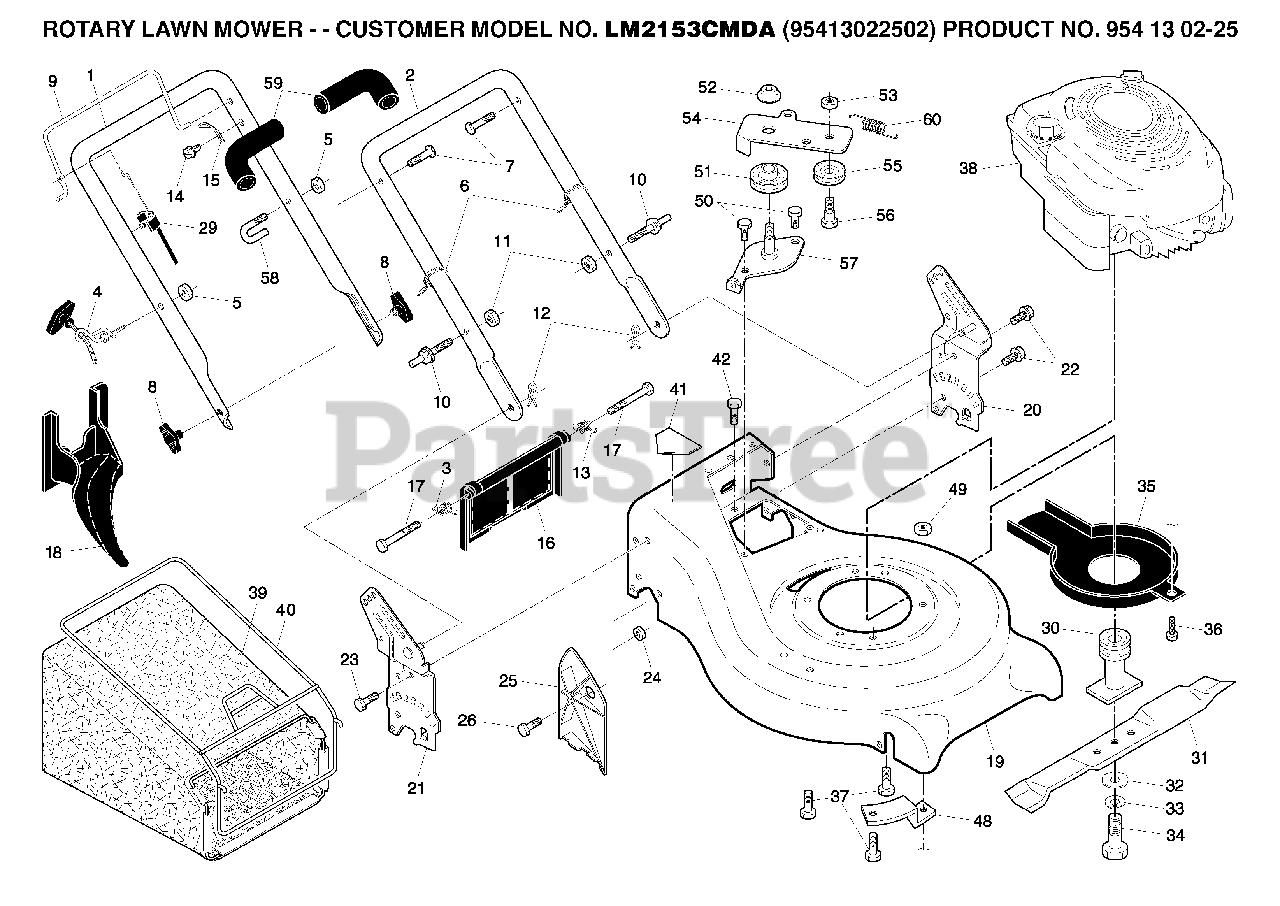

LM 2153 CMDA (954130225-02) - Jonsered Walk-Behind Mower (2005-08) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title
1

Jonsered 532189746

No Description Available

$

$

Not available

2

Jonsered 532196005

HANDLE LOWER
(Superseded to 532193664)

$

$

Not available

3

Jonsered 532186053

SPRING, REAR DOOR, RH

$10.99

$

Usually ships in 3-10 days

0

4

Jonsered 532179585

ROPE, GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

5

Jonsered 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

6

Jonsered 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

7

Jonsered 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

8

Jonsered 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 13

0

9

Jonsered 532196182

No Description Available
(Superseded to 532196177)

$

$

Not available

$6.49

$

In Stock, only 1 left!

0

11

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

12

Jonsered 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

13

Jonsered 532186052

SPRING.LH.REAR.DOOR.21.RWGD

$5.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 5

0

15

Jonsered 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

16

Jonsered 532190574

DOOR.REAR.PLASTIC.21.RWGD.BLAC

$44.99

$

In Stock, only 1 left!

0

$

$

Not available

18

Jonsered 532187535

PLUG, MULCHER
(Superseded to 532198170)

$37.99

$

Usually ships in 3-10 days

0

19

Jonsered 532195830

No Description Available
(Superseded to 583265401)

$122.99

$

Usually ships in 3-10 days

0

20

Jonsered 532194029

BRKT.ASM HNDL
(Superseded to 532193917)

$

$

Not available

21

Jonsered 532194031

BRKT.ASM.HNDL
(Superseded to 532418251)

$20.99

$

Usually ships in 3-10 days

0

22

Jonsered 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

23

Jonsered 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

25

Jonsered 532161333

CLIPPING DEFLECTOR

$11.99

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, Qty 6

0

29

Jonsered 532191221

SNAP-ON.ZONE.CABLE.ASS

$22.99

$

In Stock, only 1 left!

0

30

Jonsered 532189179

BLADE ADAPTOR / PULLEY
(Superseded to 532421176)

$28.99

$

In Stock, only 1 left!

0

31

Jonsered 532175052

No Description Available
(Superseded to 532406712)

$20.99

$

In Stock, only 2 left!

0

32

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

33

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

34

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

35

Jonsered 532188786

DEBRIS SHEILD

$7.99

$

Usually ships in 3-10 days

0

36

Jonsered 532192325

SCREW.HEX.WSH

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

39

Jonsered 532195172

No Description Available

$

$

Not available

40

Jonsered 532188817

GRASS CATCHER FRAME
(Superseded to 532194644)

$60.99

$

Usually ships in 3-10 days

0

41

Jonsered 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

$

$

Not available

48

Jonsered 532190939

BRACKET
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

51

Jonsered 532184543

PULLEY ASSY
(Superseded to 532195326)

$34.99

$

Usually ships in 3-10 days

0

52

Jonsered 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

53

Jonsered 532155552

No Description Available
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

54

Jonsered 532185898

IDLER ARM
(Superseded to 532179719)

$

$

Not available

55

Jonsered 532166043

IDLER PULLEY

$31.99

$

In Stock, only 1 left!

0

56

Jonsered 532160829

No Description Available

$7.49

$

In Stock, only 2 left!

0

57

Jonsered 532185899

BRACKET ASSEMBLY
(Superseded to 532179783)

$6.99

$

In Stock, Qty 5

0

$6.99

$

Usually ships in 3-10 days

0

59

Jonsered 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

--

Jonsered 532182134

No Description Available
(Superseded to 583119801)

$14.99

$

Usually ships in 3-10 days

0

--

Jonsered 532195827

No Description Available

$

$

Not available

--

Jonsered 532195828

No Description Available

$

$

Not available

--

Jonsered 532199439

No Description Available

$

$

Not available

--

Jonsered 532199440

No Description Available

$

$

Not available
