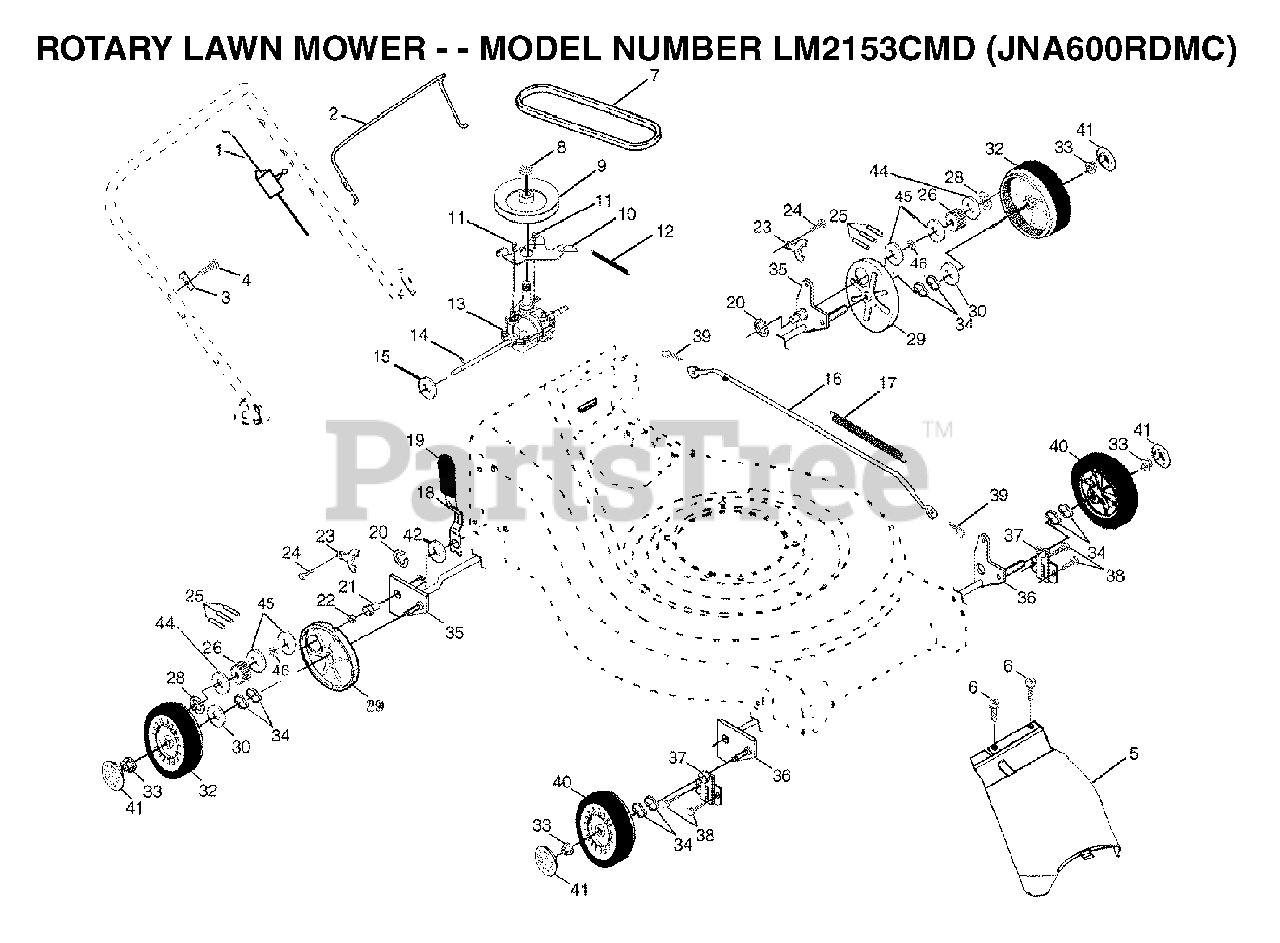

LM 2153 CMD (JNA600RDMC) - Jonsered Walk-Behind Mower (2003-05) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title
1

Jonsered 532187626

DRIVE CABLE
(Superseded to 532405995)

$44.99

$

Usually ships in 3-10 days

0

2

Jonsered 532161473

BAIL.CONT.DR.21.RWGD.BLACK

$20.99

$

In Stock, only 3 left!

0

3

Jonsered 532164557

DOWNSTOP BRACKET
(Superseded to 532161478)

$6.49

$

Usually ships in 3-10 days

0

4

Jonsered 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

5

Jonsered 532161537

DRIVE COVER
(Superseded to 532194730)

$12.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 5

0

$27.99

$

Usually ships in 3-10 days

0

8

Jonsered 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

$20.99

$

Usually ships in 3-10 days

0

10

Jonsered 532164553

No Description Available
(Superseded to 584370901)

$7.49

$

Usually ships in 3-10 days

0

$

$

Not available

12

Jonsered 532187627

No Description Available

$

$

Not available

13

Jonsered 532169611

TRANSMISSION ASM. (WALK)
(Superseded to 532188295)

$121.99

$

Usually ships in 3-10 days

0

14

Jonsered 532145354

PIN.SPRING.THRUST

$3.99

$

Usually ships in 3-10 days

0

15

Jonsered 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 10

0

16

Jonsered 532161584

ROD CONNECTING
(Superseded to 532414284)

$40.99

$

Usually ships in 3-10 days

0

17

Jonsered 532161602

SPRING
(Superseded to 532404942)

$7.49

$

In Stock, only 2 left!

0

18

Jonsered 532164554

SPRING
(Superseded to 532160477)

$

$

Not available

19

Jonsered 532161961

KNOB
(Superseded to 532189808)

$

$

Not available

20

$4.99

$

Usually ships in 3-10 days

0

21

Jonsered 532163365

RP BEARING SUPPORT
(Superseded to 532169920)

$

$

Not available

22

Jonsered 532169911

BEARING, BALL

$

$

Not available

23

Jonsered 532164555

BRACKET
(Superseded to 532161118)

$4.99

$

In Stock, only 1 left!

0

$

$

Not available

25

Jonsered 532170011

No Description Available

$

$

Not available

26

Jonsered 532166450

DRIVE PINION

$9.99

$

In Stock, only 1 left!

0

28

Jonsered 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

29

Jonsered 532180504

DUST COVER, WHEEL
(Superseded to 532189403)

$6.99

$

In Stock, only 3 left!

0

30

Jonsered 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

32

Jonsered 532180753

WHEEL, 9 X 2
(Superseded to 532193139)

$66.99

$

In Stock, Qty 5

0

33

Jonsered 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Jonsered 532057143

WAVE WASHER
(Superseded to 532428450)

$6.99

$

In Stock, only 2 left!

0

35

Jonsered 532164552

SHAFT ASSY
(Superseded to 532160785)

$36.99

$

Usually ships in 3-10 days

0

36

Jonsered 532164550

SHAFT ASSY
(Superseded to 532160786)

$27.99

$

Usually ships in 3-10 days

0

37

Jonsered 532161463

RETAINER.FRONT.SHAFT

$

$

Not available

$7.49

$

In Stock, Qty 6

0

39

Jonsered 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

40

Jonsered 532143593

WHEEL ASMBLY FRONT
(Superseded to 532435276)

$

$

Not available

41

Jonsered 532150182

CAP.HUB.ARC.SPOKE.8".LP

$

$

Not available

42

$6.49

$

Usually ships in 3-10 days

0

44

Jonsered 532052160

WASHER
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

45

Jonsered 532062335

BELLEVILLE WASHER

$9.99

$

Usually ships in 3-10 days

0

46

$6.49

$

Usually ships in 3-10 days

0
