LM 2153 CMD (954130220) - Jonsered Walk-Behind Mower (2004-01) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

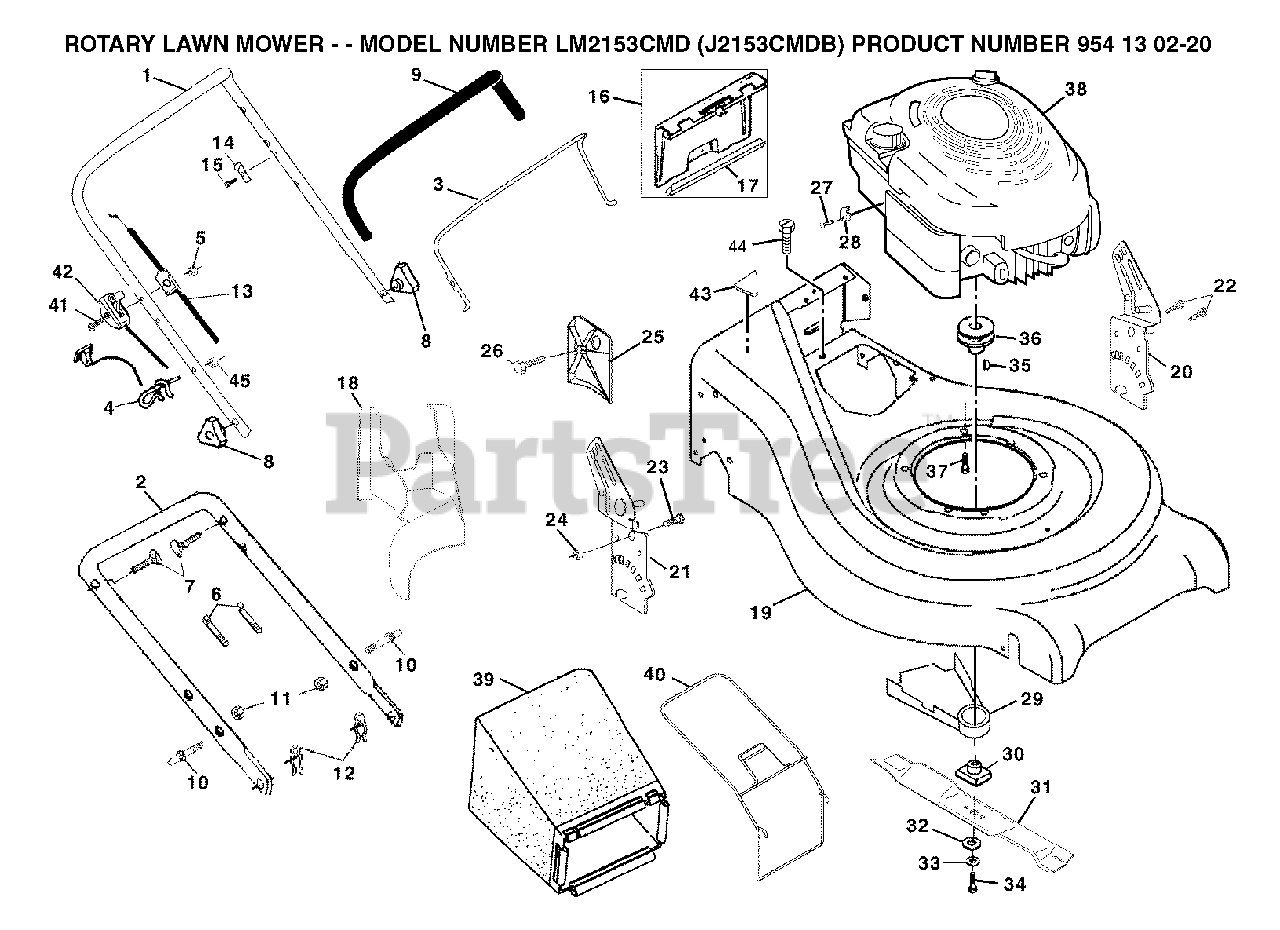

PRODUCT COMPLETE Parts Diagram

  • Title

1

Jonsered 532167163

No Description Available

$46.99

$

Usually ships in 3-10 days

0

2

Jonsered 532164556

HANDLE
(Superseded to 532161105)

$

$

Not available

3

Jonsered 532188768

No Description Available

$

$

Not available

4

Jonsered 532179585

ROPE, GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

5

Jonsered 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

6

Jonsered 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

7

Jonsered 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

8

Jonsered 532087692

KNOB

$10.99

$

Usually ships in 3-10 days

0

9

Jonsered 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

10

Jonsered 532161551

BOLT
(Superseded to 532188821)

$6.49

$

In Stock, only 1 left!

0

11

Jonsered 873990500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

12

Jonsered 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

13

Jonsered 532133107

ENGINE ZONE CONTROL

$20.99

$

In Stock, only 1 left!

0

14

Jonsered 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

15

Jonsered 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

16

Jonsered 532162085

REAR DOOR KIT

$

$

Not available

17

Jonsered 532189059

SEAL DOOR 21

$4.99

$

Usually ships in 3-10 days

0

18

Jonsered 532182778

MULCHER PLUG
(Superseded to 532187535)

$37.99

$

Usually ships in 3-10 days

0

19

Jonsered 532163424

No Description Available

$

$

Not available

20

Jonsered 532164548

.RACKET
(Superseded to 532161568)

$8.99

$

Usually ships in 3-10 days

0

21

Jonsered 532169306

No Description Available
(Superseded to 532181020)

$21.99

$

Usually ships in 3-10 days

0

22

Jonsered 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

23

Jonsered 532163183

BOLT, HEX HEAD 5/16-18

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

25

Jonsered 532161333

CLIPPING DEFLECTOR

$11.99

$

Usually ships in 3-10 days

0

26

Jonsered 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

27

Jonsered 532750634

SCREW

$6.49

$

In Stock, Qty 5

0

28

Jonsered 532111190

CABLE CLAMP(ENGINE)

$

$

Not available

29

Jonsered 532182002

SHIELD.DEBRIS.21.RWGD.EZ

$12.99

$

In Stock, only 1 left!

0

30

Jonsered 532184590

BLADE ADAPTER
(Superseded to 532193707)

$11.99

$

In Stock, Qty 20+

0

31

Jonsered 532175052

No Description Available
(Superseded to 532406712)

$20.99

$

In Stock, only 2 left!

0

32

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

33

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

34

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

35

Jonsered 532184941

PULLEY.ENG.25MMM

$

$

Not available

36

Jonsered 532187723

HI-PRO KEY

$

$

Not available

37

Jonsered 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

39

Jonsered 532183632

GBAG.300N2.BLACK.GENERIC
(Superseded to 581002901)

$47.99

$

Usually ships in 3-10 days

0

40

Jonsered 532180026

FRAME.GRASS.CATCHER.21.RGD

$

$

Not available

41

Jonsered 532183365

SCREW

$6.49

$

Usually ships in 3-10 days

0

42

Jonsered 532182154

CONTRL.THROTTLE.

$

$

Not available

43

Jonsered 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

44

Jonsered 532054583

SCREW

$

$

Not available

45

Jonsered 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

--

Jonsered 532182134

No Description Available
(Superseded to 583119801)

$14.99

$

Usually ships in 3-10 days

0

--

Jonsered 532190666

No Description Available

$

$

Not available

--

Jonsered 532190667

No Description Available

$

$

Not available
