LM 2152 CMDA (961410194-04) - Jonsered Walk-Behind Mower (2011-11) DRIVE Parts Diagram

Walk-Behind Mower

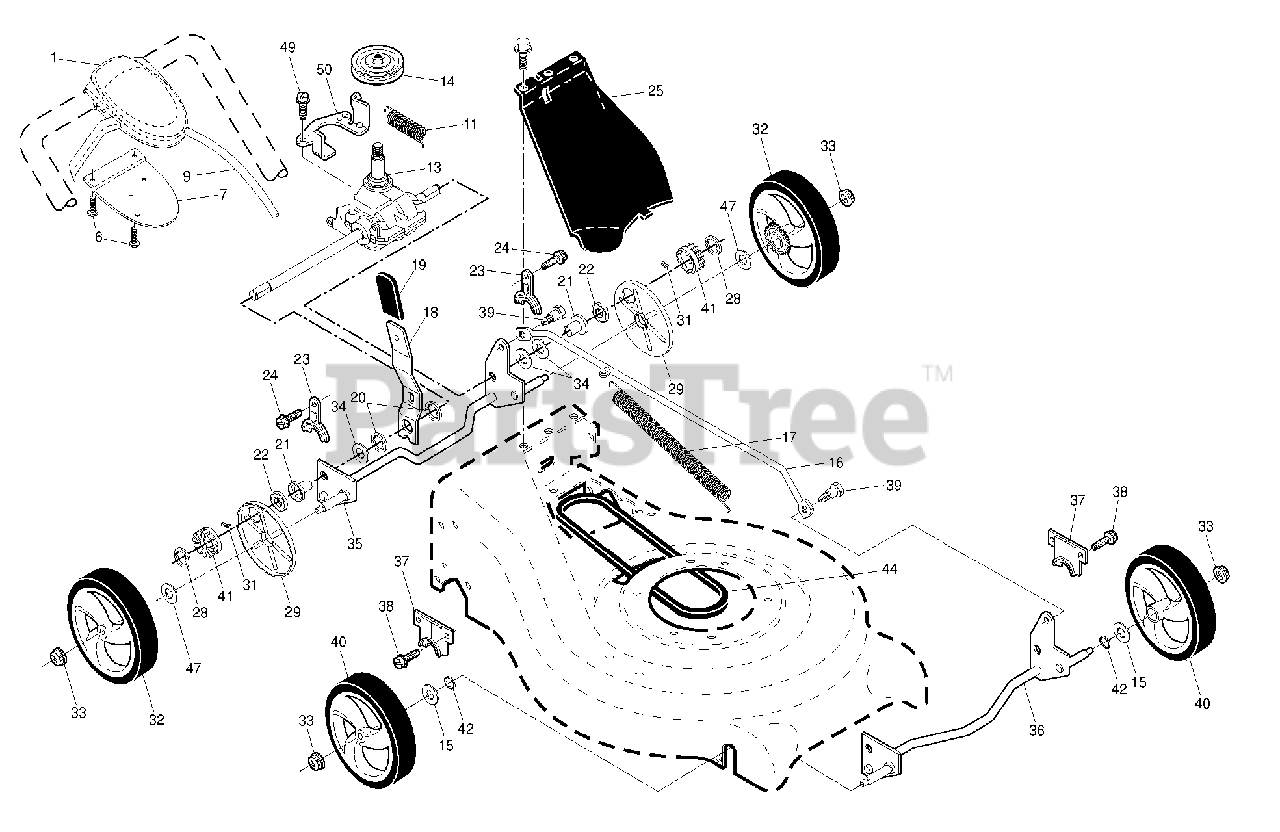

DRIVE Parts Diagram

  • Title
1

Jonsered 532433160

No Description Available
(Superseded to 583487501)

$66.99

$

Usually ships in 3-10 days

0

6

Jonsered 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

7

Jonsered 532400723

BRACKET.DRIVE.CONTROL.MOUNT

$

$

Not available

9

Jonsered 532406258

CABLE.ASSY.RGD.EZ.AUTO

$53.99

$

In Stock, only 1 left!

0

11

$8.99

$

In Stock, Qty 7

0

13

Jonsered 532419213

TRANSMISSION.21.RWGD

$

$

Not available

14

Jonsered 532193443

PULLEY.1.PIECE

$17.99

$

Usually ships in 3-10 days

0

15

Jonsered 532088348

WASHER PM

$7.49

$

In Stock, Qty 6

0

16

Jonsered 532407147

ROD.CONNECTING.SPT.BLACK

$

$

Not available

17

Jonsered 532409616

SPRING EXTENSION

$7.49

$

In Stock, only 2 left!

0

18

Jonsered 532418866

SPRING.SELECTOR.
(Superseded to 532418835)

$7.49

$

In Stock, only 1 left!

0

19

Jonsered 532190069

KNOB, SELECTOR SPRING

$7.49

$

Usually ships in 3-10 days

0

20

$4.99

$

Usually ships in 3-10 days

0

21

Jonsered 532412450

BEARING SUPPORT
(Superseded to 532404838)

$

$

Not available

22

Jonsered 532191039

BEARING
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

23

Jonsered 532164555

BRACKET
(Superseded to 532161118)

$4.99

$

In Stock, only 1 left!

0

24

Jonsered 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

25

Jonsered 532432671

No Description Available
(Superseded to 583483501)

$10.99

$

Usually ships in 3-10 days

0

28

Jonsered 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

29

Jonsered 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, Qty 5

0

31

Jonsered 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 5

0

32

Jonsered 532413570

No Description Available

$

$

Not available

33

Jonsered 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

$4.99

$

In Stock, only 1 left!

0

35

Jonsered 532410922

SHAFT ASSY REAR
(Superseded to 532403102)

$34.99

$

Usually ships in 3-10 days

0

36

Jonsered 532410933

SHAFT ASSY, FRONT
(Superseded to 532407175)

$27.99

$

Usually ships in 3-10 days

0

37

Jonsered 532161463

RETAINER.FRONT.SHAFT

$

$

Not available

$7.49

$

In Stock, Qty 6

0

39

Jonsered 532407059

SHOULDER BOLT SEMI GIMLET PT.

$6.49

$

In Stock, only 1 left!

0

40

Jonsered 532411324

No Description Available

$

$

Not available

41

Jonsered 532404835

PINIION.14.TOOTH.RGD

$6.99

$

Usually ships in 3-10 days

0

42

Jonsered 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

44

Jonsered 532406580

BELT.RGD.VS

$30.99

$

In Stock, only 3 left!

0

47

Jonsered 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

50

Jonsered 532413104

BELT KEEPER
(Superseded to 532404832)

$6.49

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, Qty 6

0
