LM 2150 SM (96111002408) - Jonsered Walk-Behind Mower (2015-01) FRAME ENGINE Parts Diagram

Walk-Behind Mower

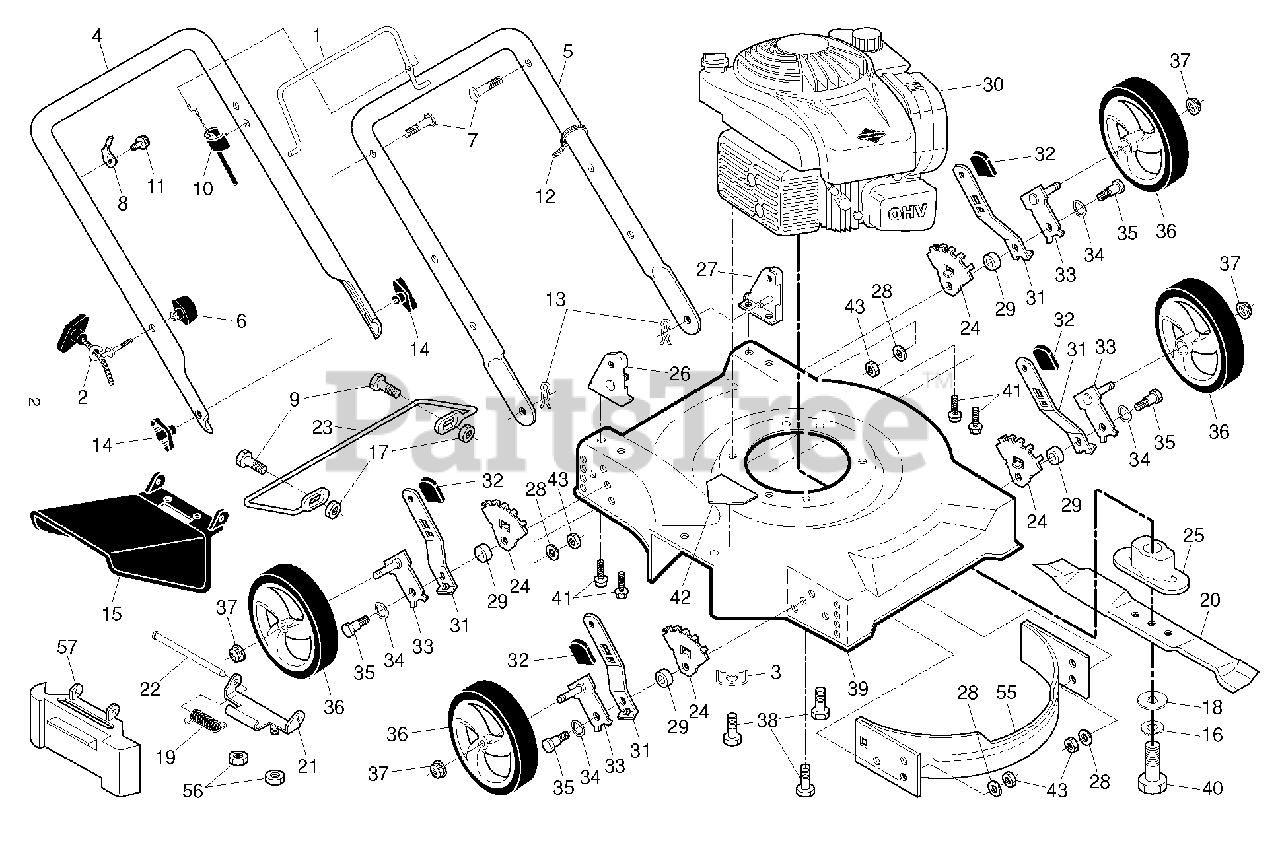

FRAME ENGINE Parts Diagram

  • Title
1

Jonsered 532196025

BAIL.CONT.D.STRAIGHT.PUSH.BLK

$

$

Not available

2

Jonsered 581902101

Rope Guide, Blk Zinc Chrom

$

$

Not available

3

Jonsered 532125078

No Description Available

$5.99

$

Usually ships in 3-10 days

0

4

Jonsered 532448263

HANDLE.UPPER.ECONOMY.BLACK

$30.99

$

Usually ships in 3-10 days

0

5

Jonsered 532434514

HANDLE.LOWER.D-STRAIT.BLACK

$

$

Not available

6

Jonsered 581912601

T-Knob, New Rope Guide

$4.99

$

In Stock, only 2 left!

0

7

Jonsered 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

8

Jonsered 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

9

Jonsered 871191012

No Description Available
(Superseded to 583610901)

$2.99

$

Usually ships in 3-10 days

0

10

Jonsered 532440934

CABLE.MZR.RATO.22"LOW.

$17.99

$

In Stock, only 3 left!

0

$7.49

$

In Stock, Qty 20+

0

12

Jonsered 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

13

Jonsered 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

14

Jonsered 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 20+

0

15

Jonsered 532432040

No Description Available
(Superseded to 596215201)

$11.99

$

In Stock, only 1 left!

0

16

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

17

$6.49

$

Usually ships in 3-10 days

0

18

Jonsered 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 7

0

19

Jonsered 532411832

No Description Available

$5.99

$

In Stock, only 4 left!

0

20

Jonsered 532145106

BLADE.20.MULCH.(50DK,6020MD)

$20.99

$

In Stock, only 1 left!

0

21

Jonsered 532088602

HINGE DEFLECTOR

$4.99

$

Usually ships in 3-10 days

0

22

Jonsered 532150215

HINGE ROD

$6.49

$

Usually ships in 3-10 days

0

23

Jonsered 532431995

No Description Available

$

$

Not available

24

Jonsered 532410594

WHEEL ADJ BRACKET FRONT
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

25

Jonsered 581547901

Blade Adapter, 7/8

$17.99

$

In Stock, Qty 20+

0

26

Jonsered 532170975

HANDLE BRACKET ASM. RH
(Superseded to 532170345)

$7.49

$

In Stock, only 1 left!

0

27

Jonsered 532170977

HANDLE BRACKET ASM. LH
(Superseded to 532170346)

$7.49

$

In Stock, only 1 left!

0

28

Jonsered 532061537

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

29

Jonsered 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

30

Jonsered 000000000

No Description Available

Note: B S 8P502-0014-H1 FOR SERVICE PARTS 1-800-233-3723

$

$

Not available

31

Jonsered 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

32

$6.49

$

In Stock, only 1 left!

0

33

Jonsered 532407871

AXLE ARM ASSY.
(Superseded to 532401179)

$7.49

$

In Stock, only 1 left!

0

34

Jonsered 532401630

WASHER FLAT

$4.99

$

In Stock, only 1 left!

0

35

Jonsered 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

36

Jonsered 532197025

No Description Available

$

$

Not available

37

Jonsered 532409148

NUT.HEX.FLANGE.3/8-16.LOCKNUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

38

Jonsered 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

39

Jonsered 581708348

KIT.HSG.20.SD.PU.W/HB.MS667.CE

$

$

Not available

40

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

41

Jonsered 532149741

SCREW 5/16-18
(Superseded to 532171877)

$7.49

$

In Stock, Qty 6

0

42

Jonsered 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

43

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

55

Jonsered 532141519

No Description Available
(Superseded to 583675101)

$8.99

$

Usually ships in 3-10 days

0

56

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

57

Jonsered 532412400

No Description Available
(Superseded to 583337601)

$9.99

$

Usually ships in 3-10 days

0

Jonsered 532182191

No Description Available

Note: NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0

Jonsered 532141520

REAR BAFFLE
(Superseded to 532133379)

Note: NOT SHOWN

$

$

Not available
