LM 2148 CMDE - Jonsered Walk-Behind Mower (2003-01) HANDLE CONTROLS Parts Diagram

Walk-Behind Mower

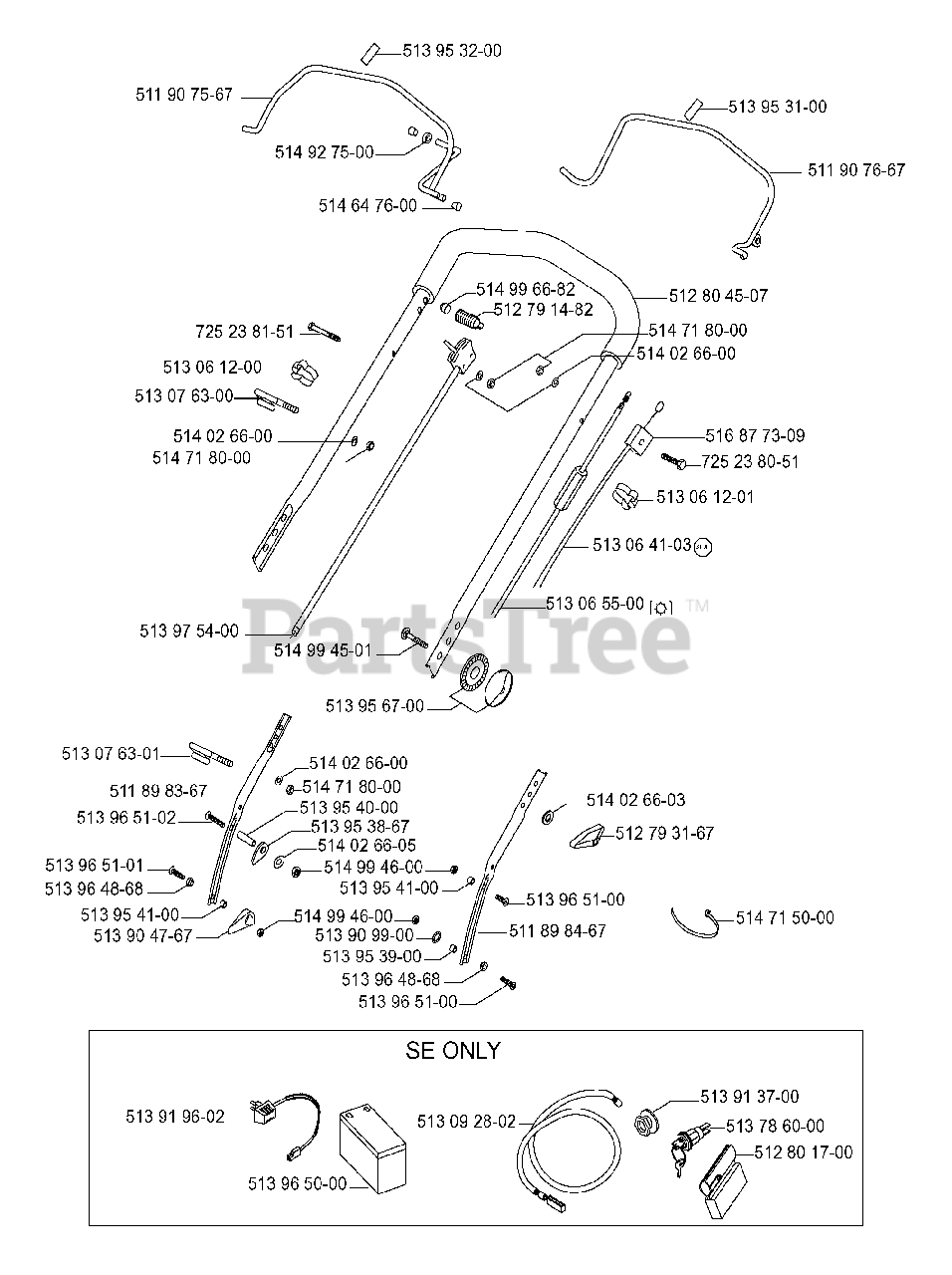

HANDLE CONTROLS Parts Diagram

  • Title
5139532-00

$

$

Not available

5119075-67

Jonsered 511907567

No Description Available

$

$

Not available

5149275-00

$

$

Not available

5146476-00

$

$

Not available

7252381-51

Jonsered 725238151

SCREW M6X55

$4.99

$

In Stock, only 2 left!

0

5130612-00

Jonsered 513061200

CABLE CLIP STANDARD

$

$

Not available

5130763-00

$

$

Not available

5140266-00

$5.99

$

Usually ships in 3-10 days

0

5147180-00

$

$

Not available

5139754-00

Jonsered 513975400

THROTTLE TRIGGER

$

$

Not available

5130763-01

Jonsered 513076301

No Description Available

$

$

Not available

5118983-67

Jonsered 511898367

No Description Available

$

$

Not available

5139651-02

Jonsered 513965102

No Description Available

$

$

Not available

5139651-01

Jonsered 513965101

No Description Available

$

$

Not available

5139648-68

Jonsered 513964868

No Description Available

$

$

Not available

5139541-00

$

$

Not available

5139047-67

Jonsered 513904767

No Description Available

$

$

Not available

5139196-02

Jonsered 513919602

BATTERY CHARGER

$

$

Not available

5139650-00

Jonsered 513965000

No Description Available

$

$

Not available

5130928-02

Jonsered 513092802

No Description Available

$

$

Not available

5139651-00

Jonsered 513965100

No Description Available

$

$

Not available

5139648-68

Jonsered 513964868

No Description Available

$

$

Not available

5139539-00

$

$

Not available

5139099-00

$

$

Not available

5149946-00

$

$

Not available

5139541-00

$

$

Not available

5149946-00

$

$

Not available

5140266-05

$

$

Not available

5139538-67

Jonsered 513953867

No Description Available

$

$

Not available

5139540-00

$

$

Not available

5147180-00

$

$

Not available

5140266-00

$5.99

$

Usually ships in 3-10 days

0

5139567-00

$

$

Not available

5149945-01

$

$

Not available

5140266-03

$

$

Not available

5127931-67

$4.99

$

Usually ships in 3-10 days

0

5139651-00

Jonsered 513965100

No Description Available

$

$

Not available

5118984-67

Jonsered 511898467

No Description Available

$

$

Not available

5128017-00

Jonsered 512801700

No Description Available

$

$

Not available

5137860-00

Jonsered 513786000

IGNITION SWITCH

$

$

Not available

5139137-00

Jonsered 513913700

No Description Available

$

$

Not available

5147150-00

Jonsered 514715000

CABLE TIE

$

$

Not available

5130655-00

Jonsered 513065500

No Description Available

$

$

Not available

5130641-03

Jonsered 513064103

No Description Available

$

$

Not available

5130612-01

Jonsered 513061201

No Description Available

$

$

Not available

7252380-51

Jonsered 725238051

SCREW M6X50

$3.49

$

In Stock, only 1 left!

0

5168773-09

$

$

Not available

5140266-00

$5.99

$

Usually ships in 3-10 days

0

5147180-00

$

$

Not available

5128045-07

Jonsered 512804507

No Description Available

$

$

Not available

5127914-82

$

$

Not available

5149966-82

Jonsered 514996682

REGULATOR KNOB (RED)

$

$

Not available

5119076-67

Jonsered 511907667

No Description Available

$

$

Not available

5139531-00

$

$

Not available
