LL-217 - Toro Royale IV Walk-Behind Mower (1968) HANDLE ASSEMBLY Parts Diagram

Royale IV Walk-Behind Mower

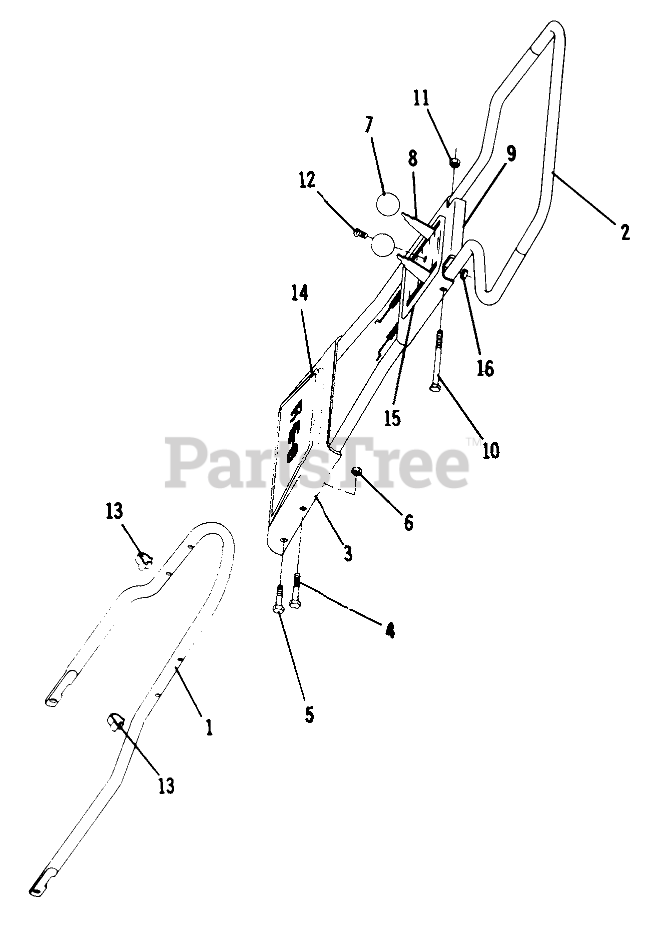

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 7247

Handle, Lower

$

$

Currently unavailable

2

Toro 7099

Handle, Upper

$

$

Currently unavailable

3

Toro 7101

Shield-Handle

$

$

Currently unavailable

4

Toro 908007-4

Bolt 1/4-20 x 1 1/2

$

$

Currently unavailable

5

Toro 908006-4

Bolt 1/4 20 x 1 1/4

$

$

Currently unavailable

6

Toro 960008-4

Nut Hex 5/4-20 Nylok

$

$

Currently unavailable

7

Toro 7248

Knob, Control

$

$

Currently unavailable

8

Toro 7249

Control, Dual

$

$

Currently unavailable

9

Toro 7250

Cover, Control

$

$

Currently unavailable

10

Toro 908148-4

Bolt Hex 1/4-20 x 4 1/2

$

$

Currently unavailable

11

Toro 960008-4

Nut Hex 5/4-20 Nylok

$

$

Currently unavailable

12

Toro 910775-4

Screw #2 Phillips #8-32 x 3/8

$

$

Currently unavailable

13

Toro 7098

Clip-Control

$

$

Currently unavailable

14

Toro 7179

Decal, "Royale IV"
(Superseded to 83-3410)

$

$

Not available

15

Toro 7180

Decal, Control Lever

$

$

Currently unavailable

16

Toro 915537-4

Nut Hex #8-32

$

$

Currently unavailable
