LL-217 - Toro Royale IV Walk-Behind Mower (1968) DECK-CROSS SHAFT-CLUTCH Parts Diagram

Royale IV Walk-Behind Mower

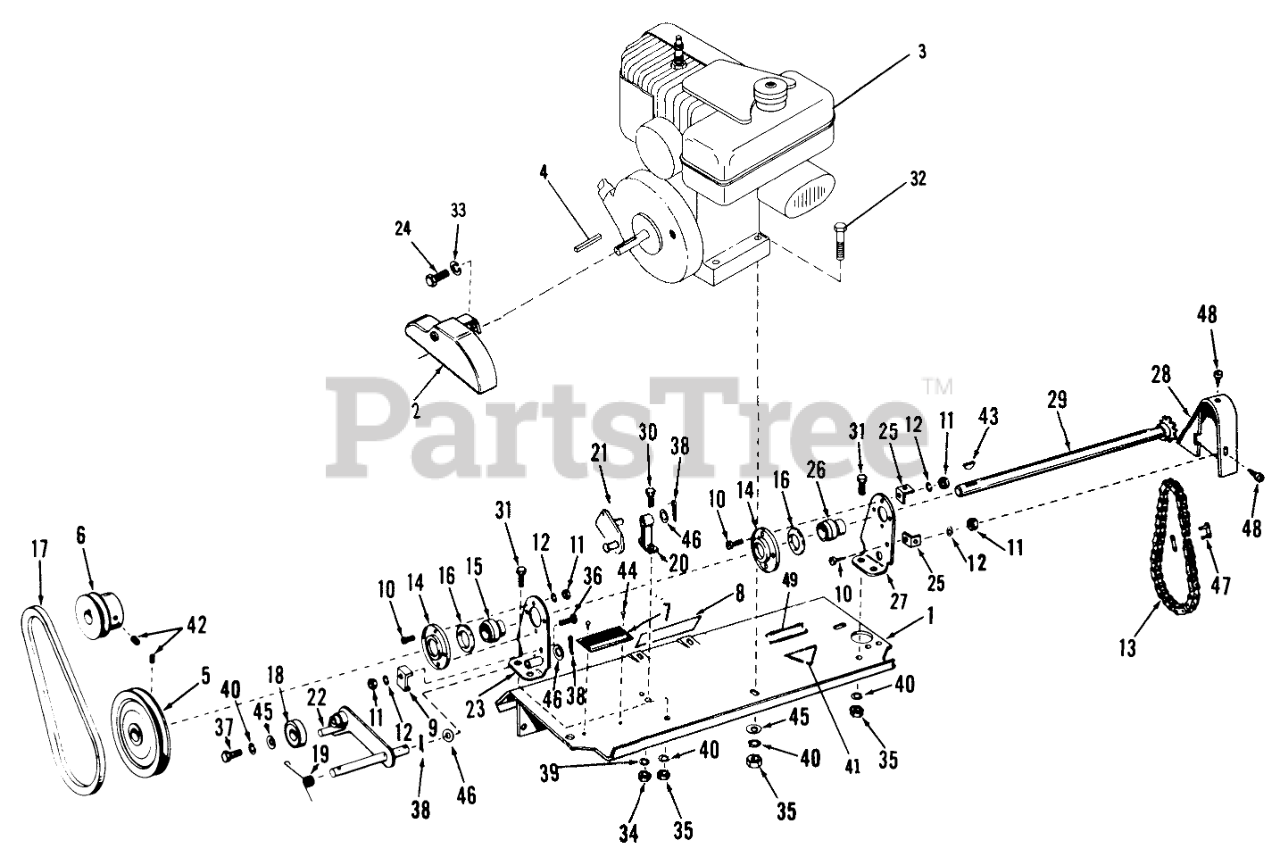

DECK-CROSS SHAFT-CLUTCH Parts Diagram

  • Title

1

Toro 7274

Deck Assembly

$

$

Currently unavailable

2

Toro 7275

RUBBER BOOT

$

$

Currently unavailable

3

Toro 7246

Engine Assembly

$

$

Currently unavailable

4

Toro MW-8331

Key, Crankshaft Pulley

$

$

Currently unavailable

5

Toro 7277

Pulley, Cross Shaft

$

$

Currently unavailable

6

Toro 7279

Pulley, Crankshaft

$

$

Currently unavailable

7

Plate, Serial Number

$

$

Not available

8

Toro 7172

MANUAL

$3.23

$

Usually ships in 3-6 days

0

9

Toro 7280

Clamp, Clutch Cable

$

$

Currently unavailable

10

Toro 909017-4

Screw-Rd. Hd. #10-24 x 3/8

$

$

Currently unavailable

11

Toro 915538-4

Nut #10-24

$

$

Currently unavailable

12

Toro 920152-4

Lockwasher, #10 Type 12

$

$

Currently unavailable

13

Toro 7288

T96-16G MAIN DRIVE GEAR

$

$

Currently unavailable

14

Toro 7281

Cover, Cross Shaft Bearing

$

$

Currently unavailable

15

Toro 7282

Bearing Cross Shaft, L.H.

$

$

Currently unavailable

16

Toro 7283

Felt, Oil Retaining

$

$

Currently unavailable

17

Toro 7236

Belt, Drive

$

$

Not available

18

Toro 7284

Bearing, Idler

$

$

Currently unavailable

19

Toro 7285

Spring, Belt Tightener

$

$

Currently unavailable

20

Toro 7286

Bracket, Bell Crank

$

$

Currently unavailable

21

Toro 7287

Crank, Bell

$

$

Currently unavailable

22

Toro 7291

Shaft & Arm, Clutch

$

$

Currently unavailable

23

Toro 7278

Cross Shaft Brkt. Assembly

$

$

Currently unavailable

24

Toro 908286-4

Screw 1/2 20 x 5/8

$

$

Currently unavailable

25

Toro 7297

Clip, Upper Chain Guard

$

$

Currently unavailable

26

Toro 7290

PILOT BRG ROLLER

$

$

Currently unavailable

27

Toro 7292

Bracket, Bearing, Cross Shaft

$

$

Currently unavailable

28

Toro 7295

Guard, Chain, Upper

$

$

Currently unavailable

29

Toro 7289

Shaft, Cross w/Sprocket

$

$

Currently unavailable

30

Toro 908002-4

Bolt-1/4-20 x 5/8

$

$

Currently unavailable

31

Toro 908016-4

Bolt Hex 5/16-18

$

$

Currently unavailable

32

Toro 908021-4

Bolt 5/16-18 x 1/2

$

$

Currently unavailable

33

Toro 920085-4

Lockwasher

$

$

Currently unavailable

34

Toro 915111-4

Nut 1/4-20

$

$

Currently unavailable

35

Toro 915112-4

Nut, 5/16-18

$

$

Currently unavailable

36

Toro 909022-4

Screw, #10-24 x 3/4 Rd. Hd. Machine

$

$

Currently unavailable

37

Toro 909068-4

Bolt-Round Head 5/16-18 x 1/2

$

$

Currently unavailable

38

Toro 932001-4

Cotter Pin

$

$

Currently unavailable

39

Toro 920081-4

Lockwasher

$

$

Currently unavailable

40

Toro 920082-4

Lockwasher

$

$

Currently unavailable

41

Toro 7299

Decal, Safety, ASA

$

$

Currently unavailable

42

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

43

Toro 937085-1

Key, #6 Woodruff

$

$

Currently unavailable

44

Toro 926408-4

Screw, #2 x 1/4, Type U-Drive

$

$

Currently unavailable

45

Toro 7293

Washer, 5/16 Burr

$

$

Currently unavailable

46

Toro 920009-4

Washer

$

$

Currently unavailable

47

Toro 7294

Link, Master-Drive Chain

$

$

Currently unavailable

48

Toro 7296

Screw, #10 x 1/2 Truss Hd.

$

$

Currently unavailable

49

Toro 7339

Decal Caution

$

$

Currently unavailable
