LHS-4050 - Lesco Hedge Trimmer Intake, Exhaust, Air Cleaner Parts Diagram

Hedge Trimmer

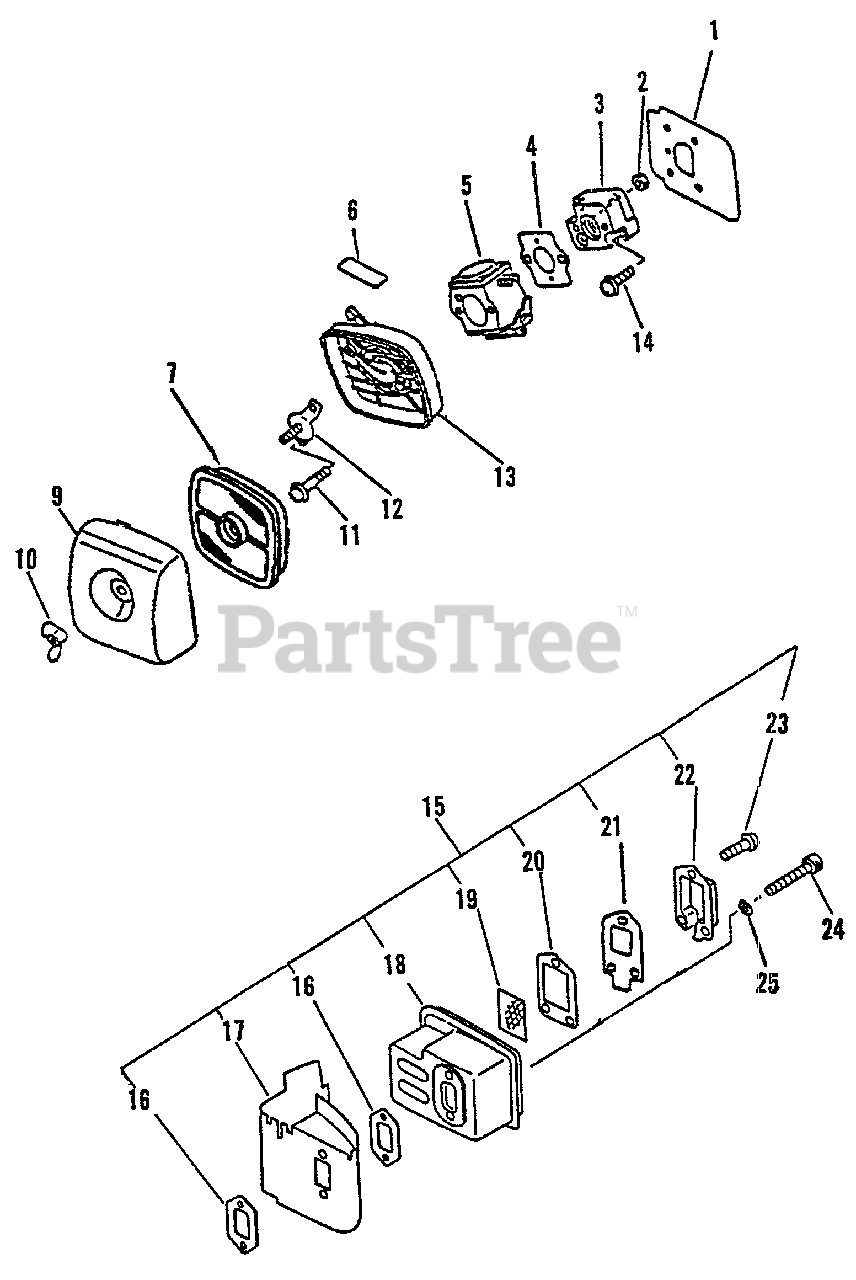

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title
1

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, only 2 left!

0

2

$0.99

$

In Stock, Qty 20+

0

3

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

4

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

5

Echo 12520008962

CARBURETOR C1U-K31A
(Superseded to 12520008963)

$

$

Not available

6

Echo 89012105360

LABEL - CHOKE

$1.99

$

In Stock, Qty 16

0

7

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

9

Echo 13031305863

COVER, AIR FILTER - BLACK

$6.49

$

In Stock, Qty 20+

0

10

Echo 90052800005

WINGNUT - 6

$1.49

$

In Stock, Qty 15

0

11

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, only 2 left!

0

12

Echo 12901112620

PLATE, PREVENT

$7.49

$

Usually ships in 2-4 days

0

13

Echo 13030706761

AIR FILTER CASE ASSY
(Superseded to 13030706960)

$19.99

$

In Stock, only 4 left!

0

14

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

15

Echo 14580042031

MUFFLER ASSY
(Superseded to 14580642030)

Note: Includes ITEMS 16-23

$46.99

$

In Stock, only 1 left!

0

16

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

17

Echo 14587144330

COVER, EXHAUST
(Superseded to 14587144331)

$4.99

$

In Stock, Qty 14

0

18

$46.99

$

In Stock, only 1 left!

0

19

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

20

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

21

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 6

0

22

Echo 14586306960

GUIDE, EXHAUST - OUTER
(Superseded to 14586311520)

$4.49

$

Usually ships in 2-4 days

0

23

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

24

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 14

0

25

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0
