LHS-3050 - Lesco Hedge Trimmer Fuel System, Throttle Control Parts Diagram

Hedge Trimmer

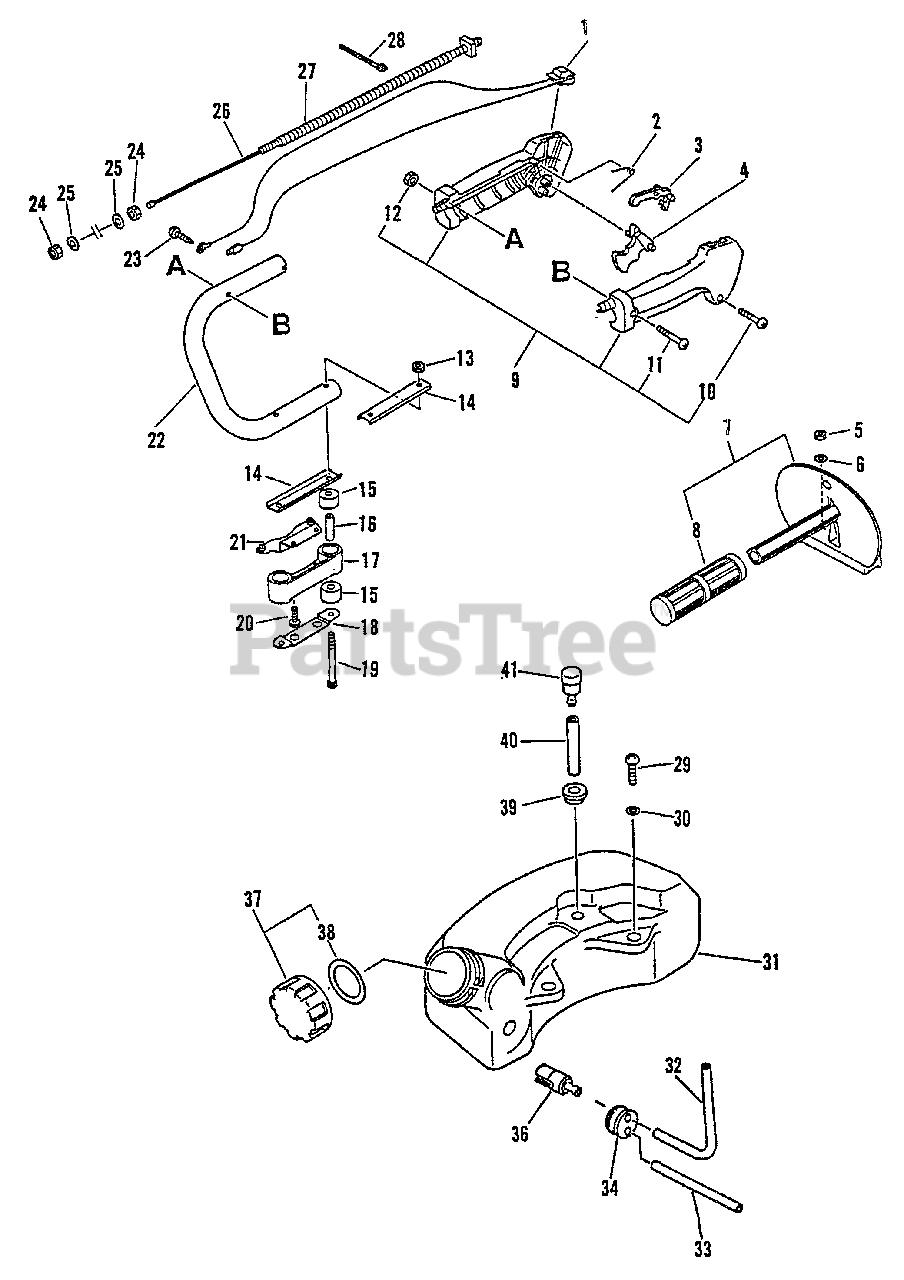

Fuel System, Throttle Control Parts Diagram

  • Title

1

Echo 16340105960

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 17801335631

SPRING, LOCKOUT LEVER

$2.49

$

In Stock, Qty 10

0

3

Echo 17801205960

LOCKOUT, THROTTLE

$5.99

$

In Stock, only 1 left!

0

4

Echo 17801005960

TRIGGER, THROTTLE

$5.49

$

In Stock, Qty 5

0

5

Echo 90056000006

LOCKNUT

$1.49

$

In Stock, Qty 20+

0

6

Echo 90060300006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

7

Echo 35120002060

HANDLE ASSY - FRONT

Note: Includes ITEM 8

$54.99

$

Usually ships in 2-4 days

0

8

Echo 35101201260

GRIP, HANDLE

$8.99

$

Usually ships in 2-4 days

0

9

Echo 35110247530

THROTTLE CONTROL ASSY

Note: Includes ITEMS 10-12

$34.99

$

In Stock, only 1 left!

0

10

Echo 90024603025

SCREW - 3X25

$0.99

$

Usually ships in 2-4 days

0

11

Echo 90022005030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

12

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

14

Echo 35124301260

BRACKET, HANDLE - LOWER

$2.99

$

Usually ships in 2-4 days

0

15

Echo 35122801260

CUSHION

$4.49

$

Usually ships in 2-4 days

0

16

Echo 35124101260

SPACER
(Superseded to 35124101261)

$2.99

$

In Stock, Qty 18

0

17

Echo 35121705960

BRACKET, HANDLE

$8.99

$

Usually ships in 2-4 days

0

18

Echo 35124201261

PLATE, CUSHION

$2.99

$

Usually ships in 2-4 days

0

19

Echo 90010505060

SCREW - 5X60

$2.49

$

In Stock, Qty 17

0

20

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

21

Echo 61043801260

BRACKET

$4.99

$

Usually ships in 2-4 days

0

22

Echo 35120508961

HANDLE - REAR

$43.99

$

Usually ships in 2-4 days

0

23

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

24

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 6

0

25

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

26

Echo 17800105960

CABLE, THROTTLE

$19.99

$

Usually ships in 2-4 days

0

27

Echo 17812705960

TUBE

$2.49

$

Usually ships in 2-4 days

0

28

Echo 17812110050

TIE, CABLE

$0.99

$

In Stock, Qty 8

0

29

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

30

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

31

Echo 13100208960

TANK, FUEL
(Superseded to 13100208961)

$

$

Not available

32

Echo 13201002160

PIPE, FUEL - CORRUGATED

$6.99

$

In Stock, only 4 left!

0

33

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 14

0

34

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

36

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

37

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

Note: Includes ITEM 38

$7.49

$

In Stock, only 4 left!

0

38

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 18

0

39

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 17

0

40

Echo 13201021160

PIPE - 3X6X35 -- BLACK
(Superseded to V471001180)

Note: RePower BULK OPTION: 90015

$1.99

$

In Stock, Qty 13

0

41

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 10

0
