LHS-3050 - Lesco Hedge Trimmer Engine, Crankcase, Cover Parts Diagram

Hedge Trimmer

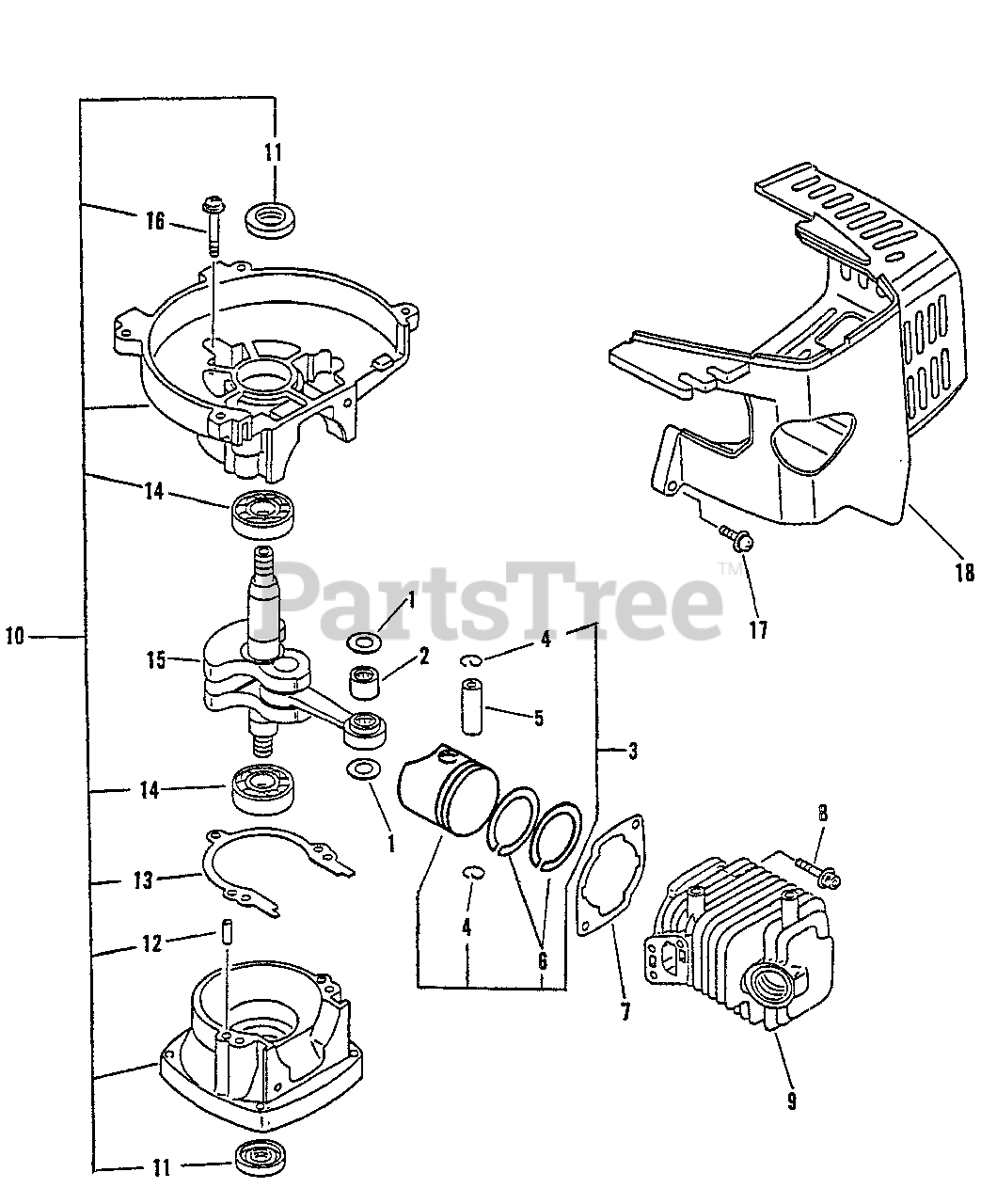

Engine, Crankcase, Cover Parts Diagram

  • Title
1

$3.49

$

Usually ships in 2-4 days

0

2

Echo 10011305930

BEARING, NEEDLE - 8

$11.99

$

Usually ships in 2-4 days

0

3

Echo 10000009560

PISTON KIT
(Superseded to 10000009561)

Note: Includes Items 4 - 6

$70.99

$

In Stock, only 1 left!

0

4

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

5

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

6

Echo 10001109560

RING, PISTON

$8.49

$

Usually ships in 2-4 days

0

7

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: Use Gasket Kit 88900008460

$3.99

$

In Stock, Qty 6

0

8

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

9

Echo 10101152130

CYLINDER
(Superseded to 10101109560)

$

$

Not available

10

Echo 10020442030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes 11 - 14 & 16

$131.99

$

Usually ships in 2-4 days

0

11

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

12

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

13

------------------

GASKET, CRANKCASE

Note: Use Gasket Kit 88900008460

$

$

Not available

14

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

15

Echo 10010008960

CRANKSHAFT ASSY
(Superseded to Discontinued)

Note: Includes ITEM 2

$

$

Not available

16

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

17

Echo 90023804022

SCREW - 4X22

$0.99

$

In Stock, Qty 5

0

18

Echo 10151405960

COVER, ENGINE
(Superseded to 10151408960)

$

$

Not available

Echo SB1023

SHORT BLOCK -- SB1023
(Superseded to SB1034)

$

$

Not available

Echo 88900008460

GASKET KIT

Note: Includes The Following Items

$18.99

$

Usually ships in 2-4 days

0

Echo 61041401260

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 12

0

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

$3.99

$

In Stock, Qty 6

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, only 1 left!

0

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0
