LHS-3000 - Lesco Hedge Trimmer (SN: 001001 - 002501) Intake, Exhaust, Air Cleaner Parts Diagram

Hedge Trimmer

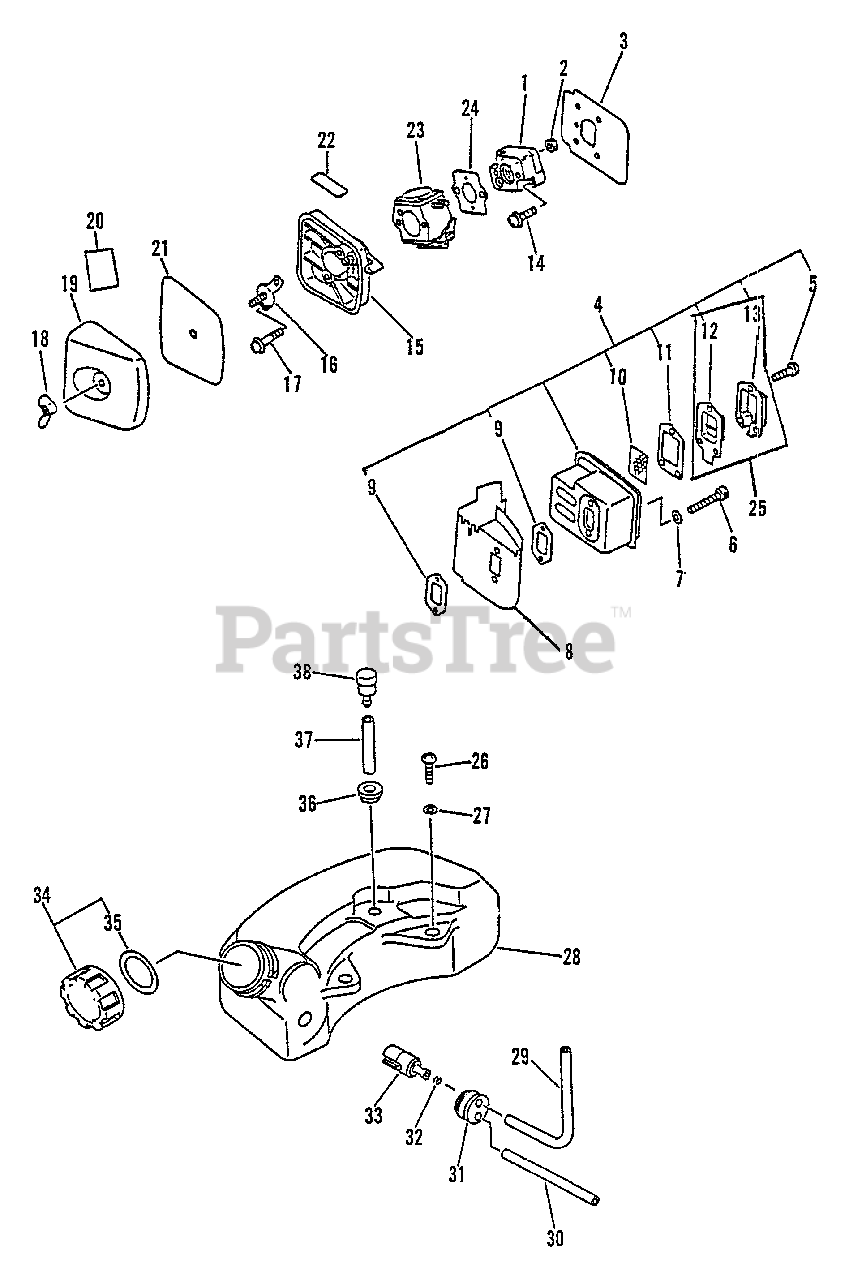

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

2

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 7

0

4

Echo 14580005960

MUFFLER ASSY
(Superseded to 14580642030)

Note: Includes Items 5, 9 -13

$46.99

$

In Stock, only 1 left!

0

5

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 13

0

6

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 12

0

7

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$4.99

$

In Stock, Qty 14

0

9

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

10

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, only 2 left!

0

11

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

12

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 6

0

13

Echo 14586306960

GUIDE, EXHAUST - OUTER
(Superseded to 14586311520)

$4.49

$

Usually ships in 2-4 days

0

14

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

15

Echo 13030705660

AIR FILTER CASE ASSY
(Superseded to Discontinued)

$

$

Not available

16

Echo 12901105060

PLATE, PREVENT

$5.99

$

In Stock, Qty 9

0

17

Echo 90024205064

SCREW - 5X64

$1.49

$

In Stock, Qty 9

0

18

Echo 90052800005

WINGNUT - 6

$1.49

$

In Stock, Qty 15

0

19

Echo 13031344331

COVER, AIR FILTER

$4.49

$

Usually ships in 2-4 days

0

20

Echo 89018706960

LABEL - TOP

$3.49

$

Usually ships in 2-4 days

0

21

Echo 13031006560

FILTER, AIR

$3.99

$

In Stock, Qty 9

0

22

Echo 89012105360

LABEL - CHOKE

$1.99

$

In Stock, Qty 16

0

23

Echo 12520006960

CARBURETOR C1U-K18
(Superseded to 12520006962)

$63.99

$

In Stock, only 1 left!

0

24

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

25

Echo 14580942030

GUIDE, EXHAUST - OUTER

Note: Includes ITEMS 12-13

$7.49

$

In Stock, only 1 left!

0

26

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

27

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

28

Echo 13100507160

TANK, FUEL
(Superseded to 13100208960)

$

$

Not available

29

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

30

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 16

0

31

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

32

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

33

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

34

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

Note: Includes ITEM 35

$7.49

$

In Stock, only 4 left!

0

35

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 19

0

36

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 9

0

37

Echo 13201021160

PIPE - 3X6X35 -- BLACK
(Superseded to V471001180)

Note: RePower BULK OPTION: 90015

$1.99

$

In Stock, Qty 14

0

38

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 10

0
