LHS-3000 - Lesco Hedge Trimmer (SN: 001001 - 002501) Engine, Crankcase, Cover, Starter, Ignition, Clutch Parts Diagram

Hedge Trimmer

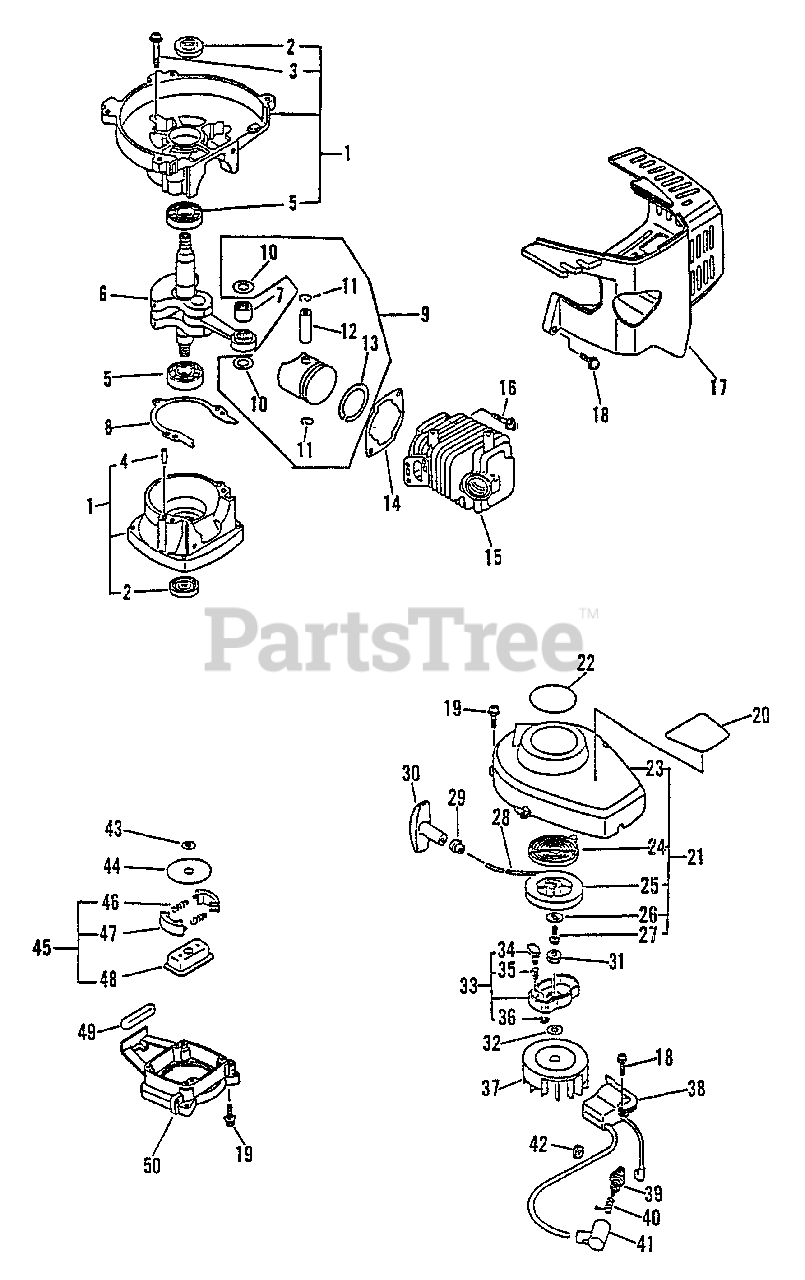

Engine, Crankcase, Cover, Starter, Ignition, Clutch Parts Diagram

  • Title

1

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes Items 2 - 5 & 8

$131.99

$

Usually ships in 2-4 days

0

2

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

3

Echo 90023805028

SCREW - 5X28

$0.99

$

Usually ships in 2-4 days

0

4

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

5

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

6

Echo 10010005961

CRANKSHAFT ASSY
(Superseded to 10010005962)

Note: Includes ITEM 7

$

$

Not available

7

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

8

------------------

GASKET, CRANKCASE

Note: Use Gasket Kit 88900008460

$

$

Not available

9

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: Includes ITEMS 10-13

$65.99

$

Usually ships in 2-4 days

0

10

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

11

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

12

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

13

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

14

Echo 10101044330

GASKET, CYLINDER
(Superseded to 10101044331)

Note: Use Gasket Kit 88900008460

$3.99

$

In Stock, only 4 left!

0

15

Echo 10101145230

CYLINDER

$127.99

$

Usually ships in 2-4 days

0

16

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

17

Echo 10151405960

COVER, ENGINE
(Superseded to 10151408960)

$

$

Not available

18

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

19

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

20

Echo 89011208860

LABEL - MODEL LHS-3000
(Superseded to Discontinued)

$

$

Not available

21

Echo 17720008862

STARTER ASSY
(Superseded to Discontinued)

Note: Includes Items 22 - 30

$

$

Not available

22

Echo 89011507960

LABEL - LESCO

$6.49

$

Usually ships in 2-4 days

0

23

Echo 17723208861

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

24

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 16

0

25

Echo 17721505960

REEL, ROPE

$13.99

$

In Stock, only 1 left!

0

26

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

27

Echo 17723644330

SCREW

$3.49

$

In Stock, only 1 left!

0

28

------------------

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$

$

Not available

29

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

30

Echo 17722805530

GRIP, STARTER
(Superseded to 17722806530)

$4.99

$

In Stock, Qty 18

0

31

Echo 90051200008

NUT - LEFT HAND

$1.49

$

Usually ships in 2-4 days

0

32

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

33

Echo 17720207360

STARTER PAWL ASSY
(Superseded to 17720207361)

Note: Includes Items 34 - 36

$13.99

$

In Stock, only 1 left!

0

34

Echo 17721842030

PAWL, STARTER

$3.49

$

Usually ships in 2-4 days

0

35

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 9

0

36

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

37

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$105.99

$

Usually ships in 2-4 days

0

38

Echo 15660106960

COIL, IGNITION
(Superseded to 15660144730)

$

$

Not available

39

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

40

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

41

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

42

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 5

0

43

Echo 17501405360

WASHER, CLUTCH

$1.99

$

Usually ships in 2-4 days

0

44

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

45

Echo 17500002961

CLUTCH ASSY
(Superseded to 17500002962)

Note: Includes Items 46 - 48

$62.99

$

Usually ships in 2-4 days

0

46

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

47

Echo 17500905131

SHOE, CLUTCH

$21.99

$

In Stock, only 2 left!

0

48

Echo 17501607330

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

49

Echo 13192028230

CUSHION, FUEL TANK

$1.49

$

In Stock, only 1 left!

0

50

Echo 61022305960

CASE, CLUTCH

$58.99

$

Usually ships in 2-4 days

0

Echo SB1004

SHORT BLOCK -- SB1004
(Superseded to SB1022)

$

$

Not available

Echo 88900008460

GASKET KIT

$18.99

$

Usually ships in 2-4 days

0

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$29.99

$

In Stock, Qty 7

0
