LHPUVD4448 - Exmark Ultra Vac QDS Bagger for 44" & 48" Lazer HP Mower (SN: 720000 - 789999) (2008) 52" Deck Components And Front Weights Parts Diagram

Ultra Vac QDS Bagger for 44" & 48" Lazer HP Mower

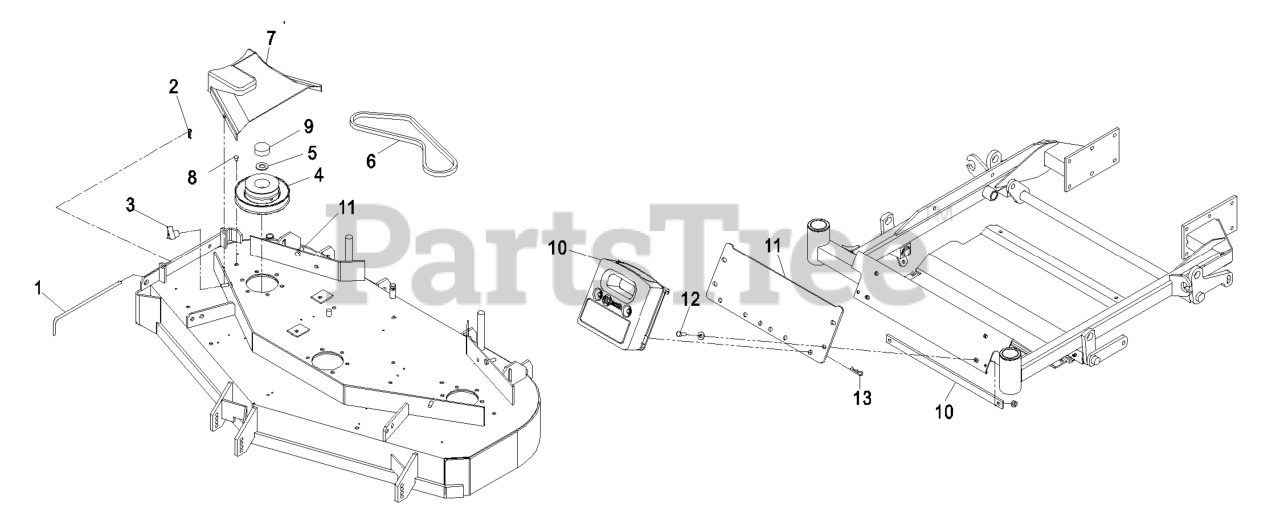

52" Deck Components And Front Weights Parts Diagram

  • Title

1

Exmark 1-653363

PIN, CHUTE PIVOT PLTD

$

$

Not available

2

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

3

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

4

Exmark 1-653439

SHEAVE, BLOWER DRIVE 52"

Note: (52)

$192.99

$

In Stock, only 1 left!

0

5

Washer, 5/8 SAE

Note: (not used)

$

$

Not available

6

Exmark 1-653438

BELT, BLOWER 52"DECK
(Superseded to 1-653438-SL)

Note: (46 & 52)

$43.99

$

In Stock, Qty 20+

0

7

Exmark 103-1318

COVER, BELT 52

Note: (52)

$231.99

$

Usually ships in 3-6 days

0

8

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$13.99

$

Usually ships in 3-6 days

0

10

Strap, Weight Mount

Note: (not used)

$

$

Not available

11

Bolt, Carriage 5/16-18 X 1

Note: (not used)

$

$

Not available

12

Exmark 103-6363

ASM,CAST WEIGHT

Note: (103-6364-01) Front Weight Components: (Used on all units)

$405.99

$

Usually ships in 3-6 days

0

13

Exmark 103-6368-01

PLATE,WEIGHT ASM MOUNT

Note: Front Weight Components: (Used on all units)

$90.99

$

In Stock, only 1 left!

0

14

Exmark 322-5

SCREW-HH

Note: Front Weight Components: (Used on all units)

$0.99

$

In Stock, Qty 20+

0

Exmark 322-7

SCREW-HH

Note: Front Weight Components: (Used on all units) 52" units with standard weight plate bolted to the front of the floor pan only.

$1.49

$

In Stock, Qty 20+

0

15

Exmark 9335124

PIN-HAIR

Note: Front Weight Components: (Used on all units)

$2.99

$

In Stock, Qty 5

0

Exmark 109-1185

52" Deck Components And Front Weights

$

$

Currently unavailable
