LHPUVD4448 - Exmark Ultra Vac QDS Bagger for 44" & 48" Lazer HP Mower (SN: 600000 - 669999) (2006) 44" Deck Components and Front Weights - 103-1315 Parts Diagram

Ultra Vac QDS Bagger for 44" & 48" Lazer HP Mower

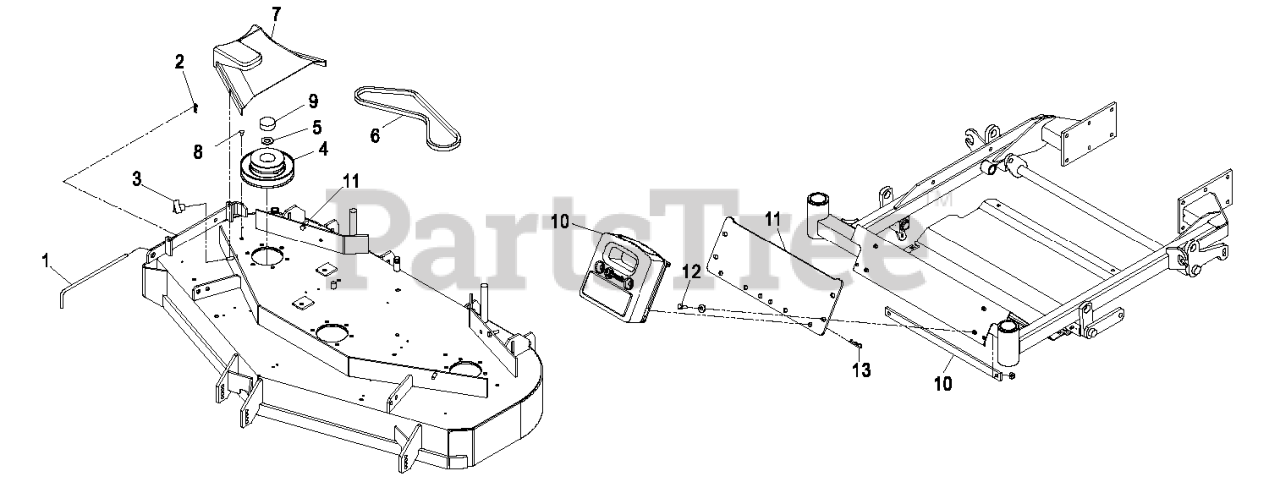

44" Deck Components and Front Weights - 103-1315 Parts Diagram

  • Title

1

Exmark 1-653363

PIN, CHUTE PIVOT PLTD

$8.49

$

Usually ships in 3-6 days

0

Exmark 103-0453

PIN, CHUTE PIVOT

$8.49

$

Usually ships in 3-6 days

0

2

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

3

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

4

Exmark 1-653309

SHEAVE, BLOWER DRIVE

$298.99

$

Usually ships in 3-6 days

0

5

Exmark 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

6

Exmark 1-653332

BELT-BLOWER
(Superseded to 1-653332-SL)

$29.99

$

In Stock, only 4 left!

0

7

Exmark 103-1316

COVER, BELT 44/48

$197.99

$

Usually ships in 3-6 days

0

8

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

9

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$11.99

$

Usually ships in 3-6 days

0

10

Exmark 109-1022-03

STRAP,WEIGHT MOUNT

$

$

Not available

11

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

12

Exmark 103-6363

ASM,CAST WEIGHT

$344.99

$

Usually ships in 3-6 days

0

13

Exmark 103-6368-01

PLATE,WEIGHT ASM MOUNT

$76.99

$

In Stock, only 1 left!

0

14

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

Exmark 322-7

SCREW-HH

Note: 52" units with standard weight plate bolted to the front of the floor pan only.

$1.49

$

In Stock, Qty 20+

0

15

Exmark 9335124

PIN-HAIR

$2.99

$

In Stock, Qty 5

0
