LHPUV4650 - Exmark Ultra Vac Bagger for 46" & 50" Lazer HP Mower (SN: 790000 - 849999) (2009) Blower Assembly 46", 50", 52" and 56" (cont.) Parts Diagram

Ultra Vac Bagger for 46" & 50" Lazer HP Mower

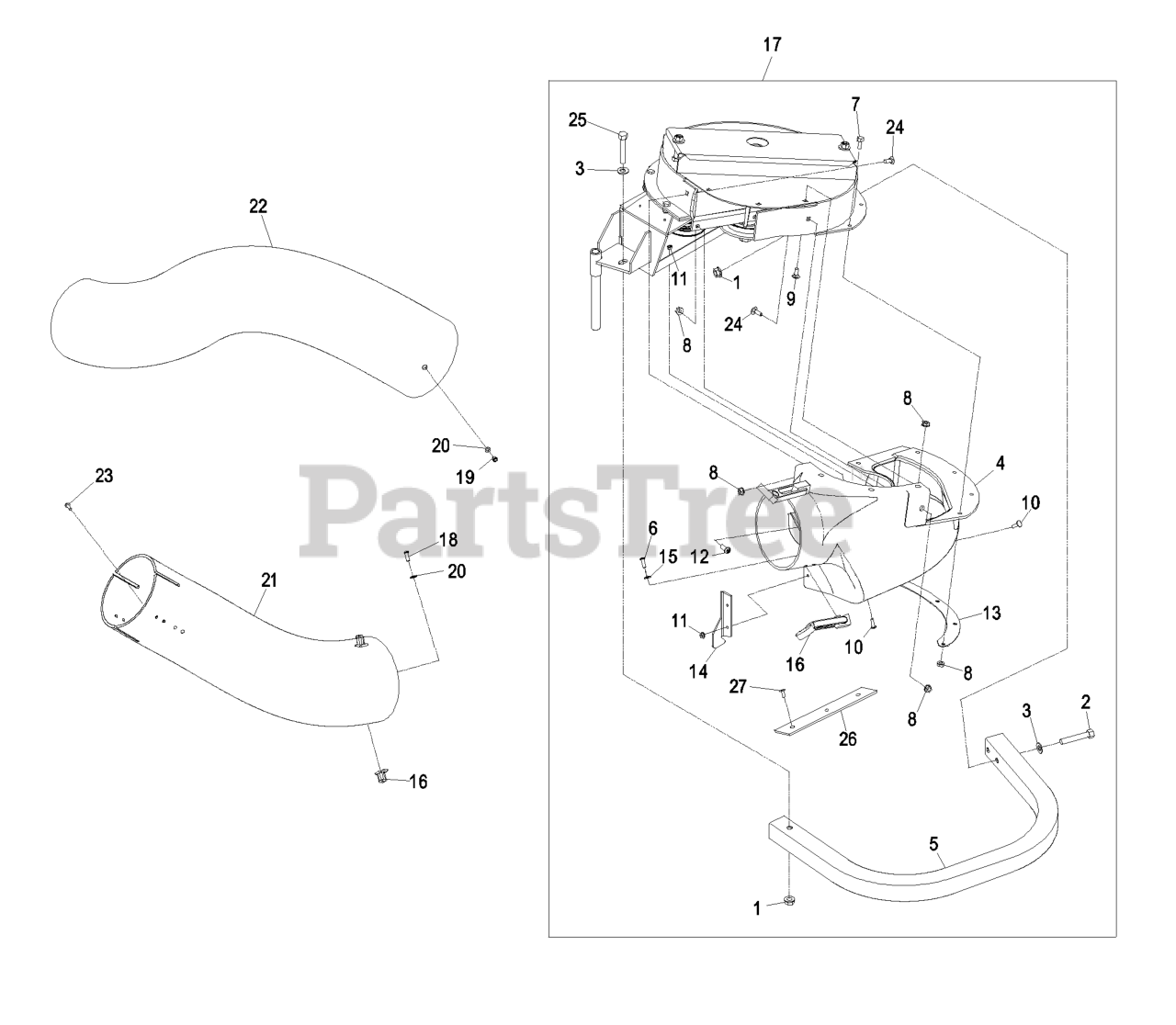

Blower Assembly 46", 50", 52" and 56" (cont.) Parts Diagram

  • Title

1

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 12

0

3

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

4

Exmark 109-1985

ASM,BLOWER CHUTE LHP

Note: (46, 50 & 56)

$536.99

$

Usually ships in 3-6 days

0

Exmark 103-4764

ASM,BLOWER CHUTE SMALL

Note: (52)

$444.99

$

In Stock, only 1 left!

0

5

Exmark 109-1122-01

BUMPER

$126.99

$

In Stock, only 1 left!

0

6

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

9

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 9

0

10

Exmark 1-803075

SCREW-HEAD, TRUSS

Note: (46,50&56)

$1.49

$

In Stock, Qty 5

0

Exmark 1-803075

SCREW-HEAD, TRUSS

Note: (52)

$1.49

$

In Stock, Qty 5

0

11

Exmark 3290-148

NUT-HF

Note: (46, 50 & 56)

$0.99

$

In Stock, Qty 8

0

Exmark 3290-148

NUT-HF

Note: (52)

$0.99

$

In Stock, Qty 8

0

12

Exmark 1-803076

SCREW

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 1-653596-03

PLATE-BACKING, BLOWER

$53.99

$

In Stock, only 1 left!

0

14

Exmark 1-653443-03

PLATE, FILLER

Note: (52)

$55.99

$

In Stock, only 1 left!

0

15

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

16

Exmark 1-653429

LATCH DRAW

$83.99

$

In Stock, only 2 left!

0

17

Exmark 109-1024

ASM,BLOWER

Note: (46, 50 & 56) (Includes All Items From Pg 7 & Items 1-16 & Decals)

$

$

Not available

Exmark 103-0400

ASM,BLOWER 52 SERVICE ONL

Note: (52) (Includes All Items From Pg 7 & Items 1-16 & Decals)

$2125.99

$

Usually ships in 3-6 days

0

18

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

21

Exmark 109-2040

KIT,LOWER TUBE

Note: (46 & 50)

$233.99

$

Usually ships in 3-6 days

0

Exmark 109-2041

KIT,LOWER TUBE

Note: (52 & 56)

$206.99

$

Usually ships in 3-6 days

0

22

Exmark 109-2034

TUBE,UPPER 46/50

Note: (46 & 50)

$265.99

$

Usually ships in 3-6 days

0

Exmark 109-2035

TUBE-UPPER

Note: (52 & 56)

$307.99

$

Usually ships in 3-6 days

0

23

Exmark 32105-13

SCREW-HWH

$1.99

$

In Stock, only 2 left!

0

24

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

25

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

26

Exmark 103-4752-03

PLATE-REINFORCEMENT

$14.99

$

Usually ships in 3-6 days

0

27

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0
