LHPUV4448 - Exmark Ultra Vac Bagger for 44" & 48" Lazer HP Mower (SN: 720000 - 789999) (2008) Blower Assembly 44" and 48" (cont.) Parts Diagram

Ultra Vac Bagger for 44" & 48" Lazer HP Mower

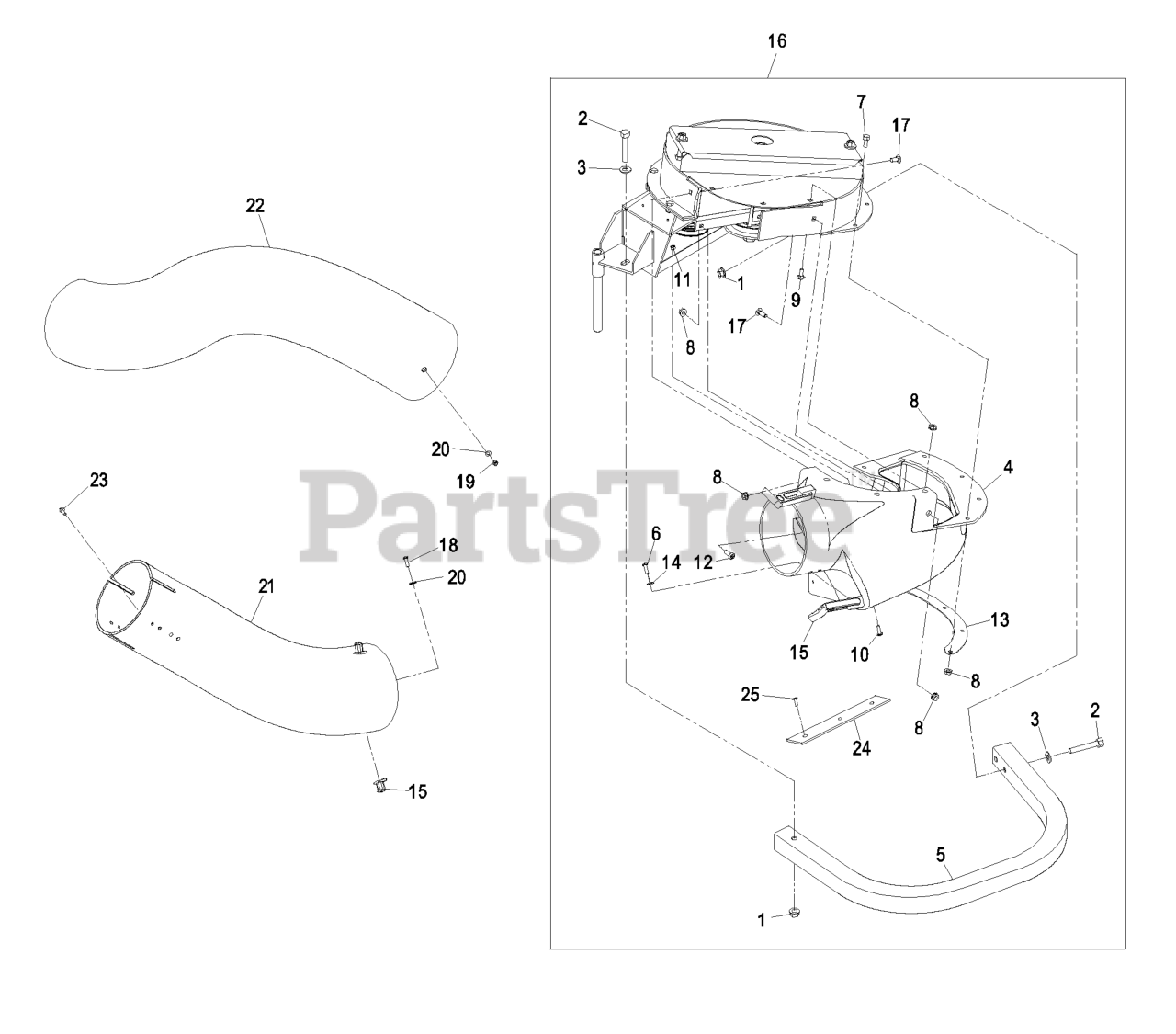

Blower Assembly 44" and 48" (cont.) Parts Diagram

  • Title
1

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

3

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

4

Exmark 103-4764

ASM,BLOWER CHUTE SMALL

$377.99

$

In Stock, only 1 left!

0

$

$

Not available

6

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

$0.99

$

In Stock, Qty 6

0

9

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

11

$0.99

$

In Stock, Qty 11

0

12

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 1-653596-03

PLATE-BACKING, BLOWER

$49.99

$

In Stock, only 1 left!

0

14

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Exmark 1-653429

LATCH DRAW

$70.99

$

In Stock, only 2 left!

0

16

Exmark 103-0401

ASM,BLOWER 44/48 - SERVIC

Note: (44 & 48) (Includes All Items From Blower Assembly 44" and 48" & Items 1-15 & Decals)

$1757.99

$

Usually ships in 3-6 days

0

17

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

18

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Exmark 109-2040

KIT,LOWER TUBE

$213.99

$

Usually ships in 3-6 days

0

22

Exmark 109-2033

TUBE,UPPER 44/48

$230.99

$

Usually ships in 3-6 days

0

23

Exmark 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

24

Exmark 103-4752-03

PLATE-REINFORCEMENT

$13.99

$

Usually ships in 3-6 days

0

25

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0
