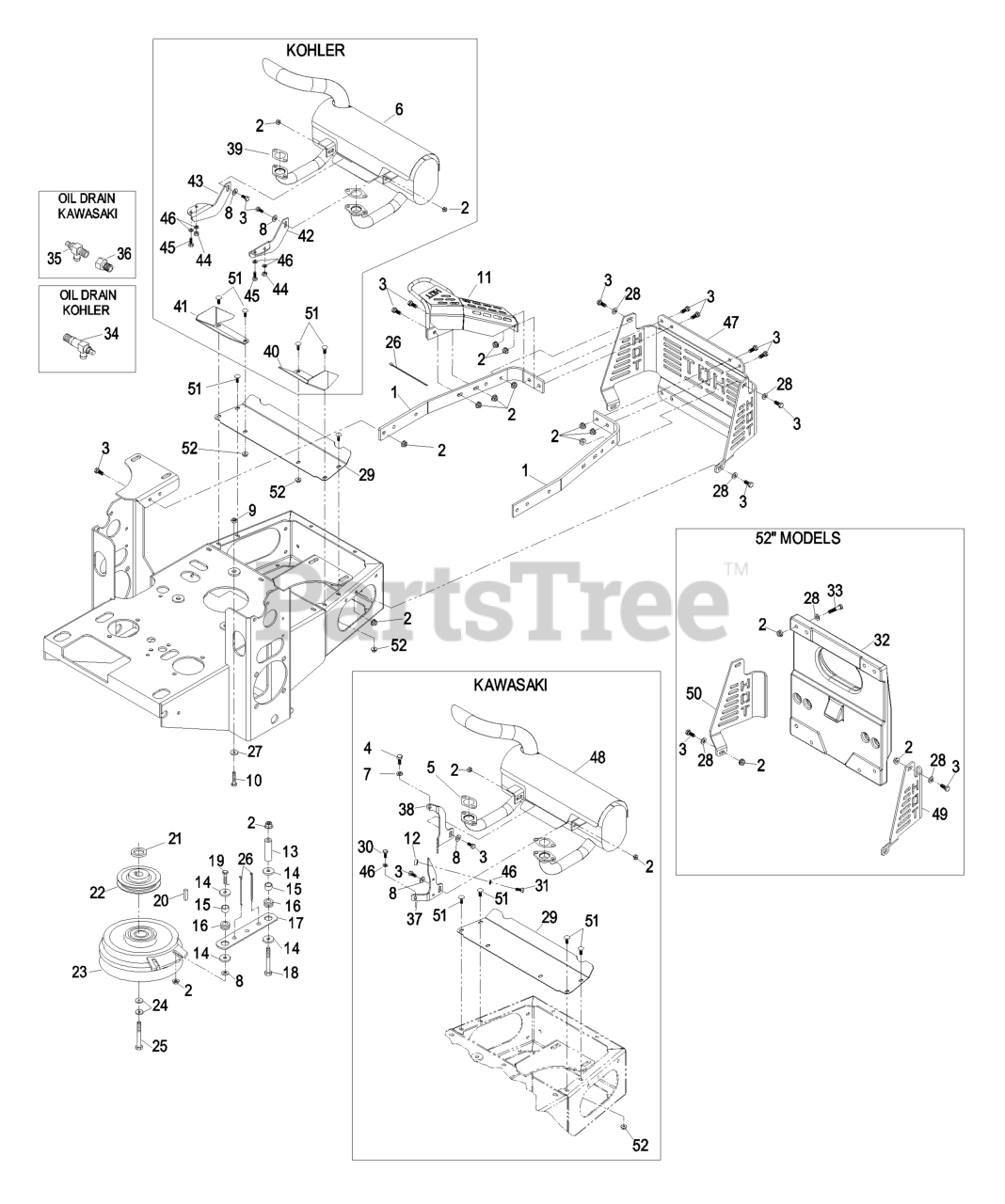

LHP5223KC - Exmark 52" Lazer Z HP Zero-Turn Mower, 23hp Kohler (SN: 540000 - 599999) (2005) Engine Group Parts Diagram

52" Lazer Z HP Zero-Turn Mower, 23hp Kohler

Engine Group Parts Diagram

  • Title

1

Exmark 103-3078-03

STRAP-GUARD, RH

$

$

Not available

2

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

4

Exmark 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

5

Exmark 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

Exmark 1-653290

GASKET-EXHAUST

$21.99

$

Usually ships in 3-6 days

0

6

Exmark 103-3426

KIT,MUFFLER (18-23 KOH)

$445.99

$

Usually ships in 3-6 days

0

7

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

8

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

11

Exmark 103-3218-03

GUARD-TAILPIPE

$

$

Not available

12

Exmark 103-3096

SPACER

$

$

Not available

13

Exmark 103-2614

SPACER

$

$

Not available

14

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

15

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

16

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 8

0

17

Exmark 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 1 left!

0

18

Exmark 322-22

SCREW-HH

$4.49

$

In Stock, Qty 12

0

19

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

20

Exmark 1-807259

KEY

$2.99

$

In Stock, only 2 left!

0

21

Exmark 103-2308

SPACER-CRANKSHAFT

$9.49

$

In Stock, Qty 5

0

22

Exmark 1-653035

PULLEY

$68.99

$

In Stock, only 2 left!

0

Exmark 103-3913

PULLEY

$66.99

$

In Stock, only 4 left!

0

23

Exmark 103-0690

109-9276
(Superseded to 109-9276)

$591.99

$

In Stock, only 1 left!

0

Exmark 103-3012

KIT,MS200 CLUTCH BRAKE

$138.99

$

Usually ships in 3-6 days

0

24

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

25

Exmark 3212-12

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$3.49

$

In Stock, Qty 14

0

Exmark 3212-10

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$6.49

$

In Stock, only 1 left!

0

26

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

27

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

28

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Exmark 103-2740-03

DEFLECTOR-SHORT

$27.99

$

Usually ships in 3-6 days

0

30

Exmark 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

31

Exmark 33113-025

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

32

Exmark 103-3107-03

107-8421-03
(Superseded to 107-8421-03)

$

$

Not available

33

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Exmark 103-1963

VALVE-DRAIN, OIL

Note: Use a Teflon Pipe Sealant or equivalent on threads of drain valve.

$85.99

$

Usually ships in 3-6 days

0

35

Exmark 103-1965

VALVE-DRAIN, OIL

Note: Use a Teflon Pipe Sealant or equivalent on threads of drain valve.

$55.99

$

In Stock, only 1 left!

0

36

Exmark 103-1966

ADAPTER

$18.99

$

In Stock, only 1 left!

0

37

Exmark 103-2993-03

BRACKET-MUFFLER, LH

$56.99

$

Usually ships in 3-6 days

0

Exmark 103-4477-03

BRACKET-MUFFLER, LH

$

$

Not available

38

Exmark 103-2994-03

BRACKET-MUFFLER, RH

$30.99

$

Usually ships in 3-6 days

0

Exmark 103-4478-03

BRACKET-MUFFLER, RH

$

$

Not available

39

Exmark 1-653291

110-6697
(Superseded to 110-6697)

$

$

Not available

40

Exmark 103-3094-03

DEFLECTOR-AIR, LH,KC

$

$

Not available

41

Exmark 103-3095-03

DEFLECTOR-AIR, RH,KC

$

$

Not available

42

Exmark 103-2987-03

BRACKET-MUFFLER, LH

$30.99

$

Usually ships in 3-6 days

0

43

Exmark 103-2988-03

BRACKET-MUFFLER, RH

$

$

Not available

44

Exmark 33013-00

NUT-HEX

$2.49

$

In Stock, only 3 left!

0

45

Exmark 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

46

Exmark 1-805004

WASHER-LOCK

Note: Kohler units only.

$1.49

$

In Stock, only 4 left!

0

Exmark 1-805004

WASHER-LOCK

Note: Kawasaki units only.

$1.49

$

In Stock, only 4 left!

0

47

Exmark 103-3219-03

GUARD-REAR

$

$

Not available

48

Exmark 103-3427

MUFFLER KIT

$584.99

$

Usually ships in 3-6 days

0

Exmark 103-4483

MUFFLER KIT

$522.99

$

Usually ships in 3-6 days

0

49

Exmark 103-3287-03

GUARD-MUFFLER, LH

$68.99

$

In Stock, only 1 left!

0

50

Exmark 103-3288-03

GUARD-MUFFLER, RH

$

$

Not available

51

Exmark 3229-10

SCREW-CARR

Note: Kohler units only.

$1.49

$

In Stock, only 4 left!

0

Exmark 3229-10

SCREW-CARR

Note: Kawasaki units only.

$1.49

$

In Stock, only 4 left!

0

52

Exmark 32128-33

NUT-HF

Note: Kohler units only.

$0.99

$

In Stock, Qty 6

0

Exmark 32128-33

NUT-HF

Note: Kawasaki units only.

$0.99

$

In Stock, Qty 6

0

Exmark 2508301-S

Air Filter Element - Outer

Note: Kohler Replacement Part (Refer to Engine Owner's Manual)

$

$

Currently unavailable

Exmark 2508304-S

Air Filter Element - Inner

Note: Kohler Replacement Part (Refer to Engine Owner's Manual)

$

$

Currently unavailable

Exmark 11010-7004

23 Hp Air Filter Element Kit (Inner & Outer)

Note: Kawasaki Replacement Part

$

$

Currently unavailable

Exmark 11013-7028

19 Hp Air Filter Element

Note: Kawasaki Replacement Part

$

$

Currently unavailable

Exmark 1-840022

PRO-LOCK,NUT TYPE

$18.99

$

Usually ships in 3-6 days

0
