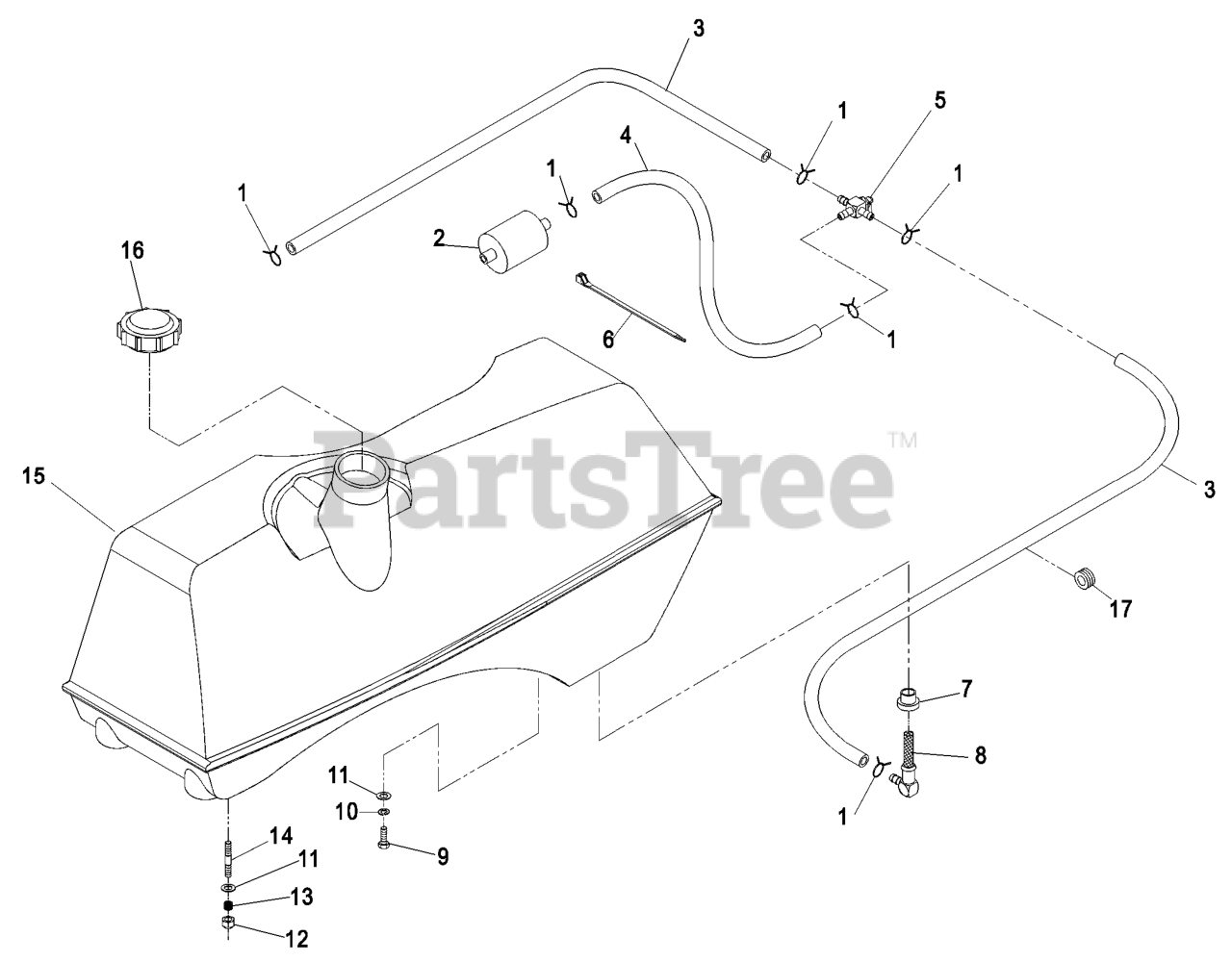

LHP5223KA - Exmark 52" Lazer Z HP Zero-Turn Mower, 23hp Kawasaki (SN: 260000 - 319999) (2001) Fuel Group Parts Diagram

52" Lazer Z HP Zero-Turn Mower, 23hp Kawasaki

Fuel Group Parts Diagram

  • Title

1

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

2

Kohler Part No. 2405002 Fuel Filter

Note: Refer to Engine Owner's Manual (Fuel filter MUST be 15 Micron or smaller).

$

$

Not available

Kawasaki Part No. 49019-7001 Fuel Filter

$

$

Not available

3

Exmark 1-543526

109-0302
(Superseded to 109-0302)

$12.99

$

In Stock, Qty 5

0

4

Exmark 103-0216

DISCONTINUED

$

$

Not available

5

Exmark 1-633347

VALVE-FUEL

$74.99

$

In Stock, only 3 left!

0

6

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

7

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 10

0

8

Exmark 1-543277

ELBOW-TANK, FUEL

$11.99

$

In Stock, Qty 5

0

9

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

10

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

11

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

12

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

13

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

14

Exmark 1-633023

STUD

Note: Use Pro-Lock, Nut Type (P/N 840022, .5ml tube) on stud threads going into tank.

$6.49

$

Usually ships in 3-6 days

0

15

Exmark 1-653568

103-2122
(Superseded to 103-2122)

Note: Not Illustrated

$493.99

$

In Stock, only 1 left!

0

Exmark 1-653569

103-2123
(Superseded to 103-2123)

$538.99

$

Usually ships in 3-6 days

0

16

Exmark 1-513508

CAP-FUEL

$27.99

$

In Stock, only 1 left!

0

17

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

Exmark 840022

Pro-Lock, Nut Type (.5ml Tube)

$

$

Currently unavailable
