LHP5220KC - Exmark 52" Lazer Z HP Zero-Turn Mower, 20hp Kohler (SN: 370000 - 439999) (2003) Engine Group - Kawasaki 17HP Parts Diagram

52" Lazer Z HP Zero-Turn Mower, 20hp Kohler

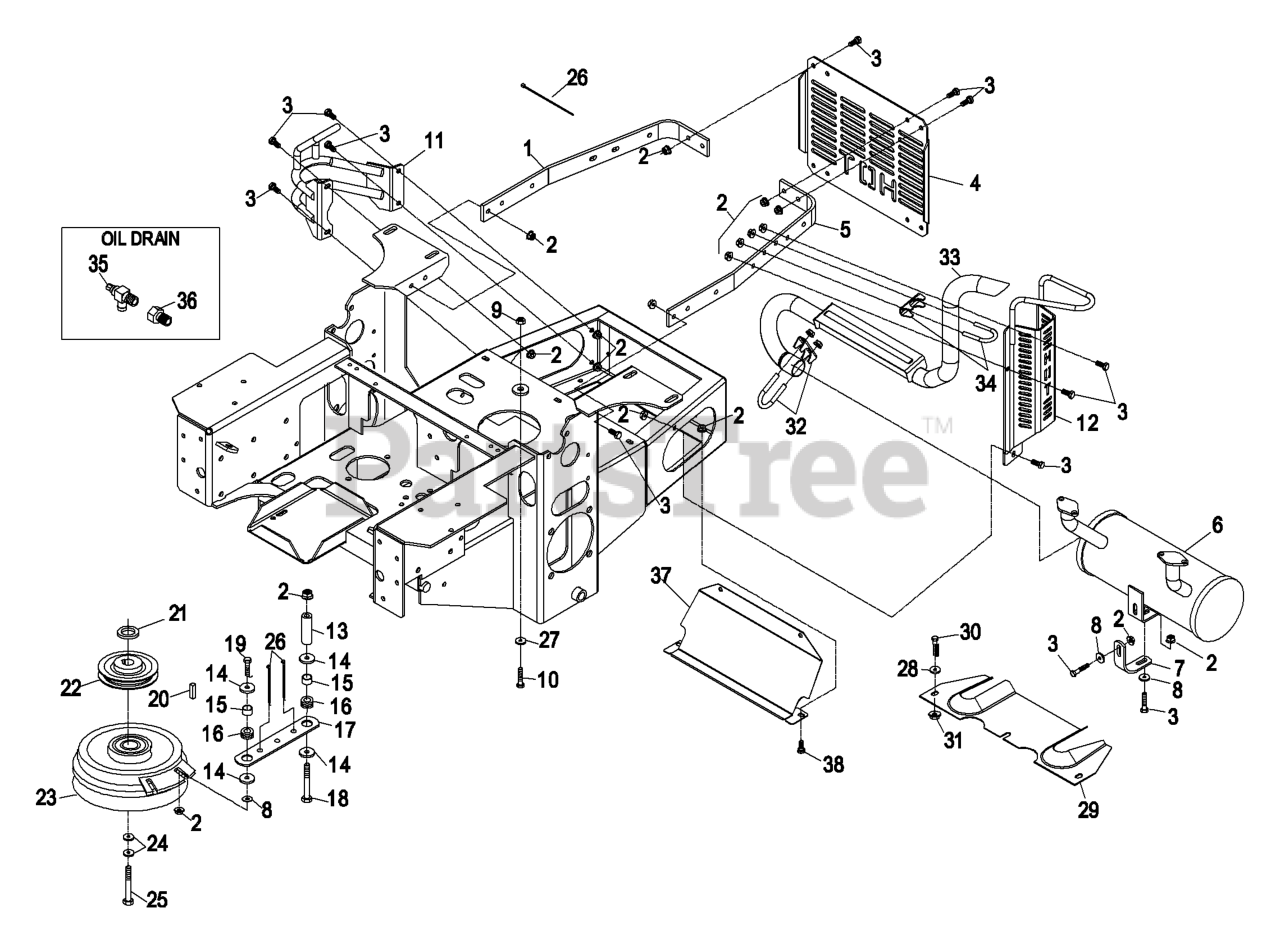

Engine Group - Kawasaki 17HP Parts Diagram

  • Title

1

Exmark 103-3078-03

STRAP-GUARD, RH

$

$

Not available

2

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Exmark 1-653095-03

Shield, Eng. Guard

$

$

Not available

5

Exmark 103-3164-03

STRAP-GUARD, LH

$

$

Not available

6

Exmark 103-2745

KIT,MUFFLER LHP17KA

$721.99

$

In Stock, only 1 left!

0

7

Exmark 1-653196

BRACKET-SUPPORT, MUFFLER

$

$

Not available

8

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

11

Exmark 103-2564-03

RH EXHAUST GUARD ASM

$179.99

$

Usually ships in 3-6 days

0

12

Exmark 103-2566-03

LH EXHAUST GUARD ASM

$179.99

$

Usually ships in 3-6 days

0

13

Exmark 103-2614

SPACER

$

$

Not available

14

Exmark 1-613235

WASHER

$1.99

$

In Stock, Qty 19

0

15

Exmark 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

16

Exmark 1-633630

GROMMET

$5.99

$

In Stock, Qty 14

0

17

Exmark 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 2 left!

0

18

Exmark 322-22

SCREW-HH

$4.99

$

In Stock, Qty 12

0

19

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

20

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

21

Exmark 103-2308

SPACER-CRANKSHAFT

$9.49

$

In Stock, Qty 5

0

22

Exmark 1-653035

PULLEY

$68.99

$

In Stock, only 1 left!

0

23

Exmark 103-0690

109-9276
(Superseded to 109-9276)

$591.99

$

In Stock, only 1 left!

0

Exmark 105-1670

HARNESS-JUMPER, CLUTCH

$69.99

$

Usually ships in 3-6 days

0

Exmark 103-3012

KIT,MS200 CLUTCH BRAKE

$153.99

$

Usually ships in 3-6 days

0

24

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

25

Exmark 3212-12

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$3.49

$

In Stock, Qty 13

0

26

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

27

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

28

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Exmark 1-653565-03

SHIELD-HEAT

$69.99

$

Usually ships in 3-6 days

0

30

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

31

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Exmark 103-2630

CLAMP

$7.99

$

Usually ships in 3-6 days

0

33

Exmark 103-2599

TAILPIPE

$164.99

$

In Stock, only 1 left!

0

34

Exmark 103-2631

CLAMP

$6.49

$

Usually ships in 3-6 days

0

35

Exmark 103-1965

VALVE-DRAIN, OIL

Note: Use a Teflon Pipe Sealant or equivalent on threads of drain valve.

$55.99

$

In Stock, only 1 left!

0

36

Exmark 103-1966

ADAPTER

$18.99

$

In Stock, only 3 left!

0

37

Exmark 103-2560-03

SHIELD-HEAT

$158.99

$

Usually ships in 3-6 days

0

38

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 15

0

39

Exmark 1-653290

GASKET-EXHAUST

$21.99

$

Usually ships in 3-6 days

0
