LHP4823KA - Exmark 48" Lazer Z HP Zero-Turn Mower, 23hp Kawasaki (SN: 510000 - 539999) (2005) Engine Group Parts Diagram
48" Lazer Z HP Zero-Turn Mower, 23hp Kawasaki

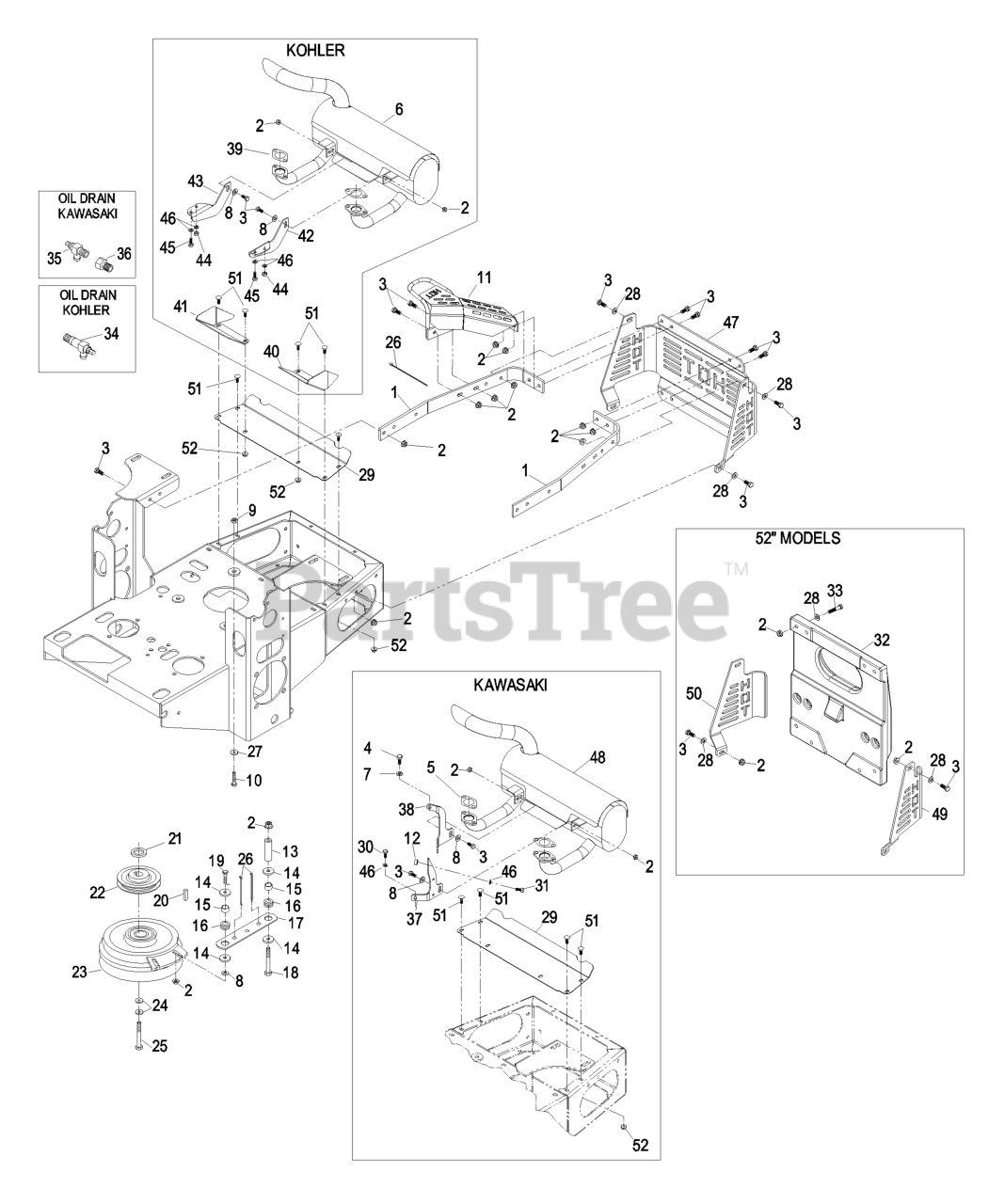

Engine Group Parts Diagram
Exmark 103-3078-03
$
$
Not available
Exmark 32128-20
$1.49
$
Exmark 322-3
$0.99
$
Exmark 322-3
$0.99
$
Exmark 33114-020
$0.99
$
Exmark 1-653313
$5.49
$
Exmark 1-653290
$22.99
$
Exmark 103-3426
$519.99
$
Exmark 1-805005
$1.49
$
Exmark 3256-3
$0.99
$
Exmark 3296-29
$2.49
$
Exmark 32128-20
$1.49
$
Exmark 322-9
$3.99
$
Exmark 103-3218-03
$
$
Not available
Exmark 103-3096
$
$
Not available
Exmark 103-2614
$
$
Not available
Exmark 1-613235
$1.99
$
Exmark 1-633545
$2.99
$
Exmark 1-633630
$5.99
$
Exmark 1-633543-03
$15.99
$
Exmark 322-22
$4.99
$
Exmark 322-6
$4.49
$
Exmark 1-807259
$2.49
$
Exmark 103-2308
$9.99
$
Exmark 1-653035
$72.99
$
Exmark 103-3913
$70.99
$
$626.99
$
Exmark 103-3012
$162.99
$
Exmark 1-603610
$5.49
$
$3.49
$
$6.99
$
$0.99
$
Exmark 1-303334
$2.99
$
Exmark 3256-23
$2.49
$
Exmark 3256-23
$2.49
$
Exmark 103-2740-03
$
$
Not available
Exmark 33113-016
$0.99
$
Exmark 33113-025
$2.99
$
$
$
Not available
Exmark 322-7
$1.49
$
Exmark 103-1963
Note: Use a Teflon Pipe Sealant or equivalent on threads of drain valve.
$90.99
$
Exmark 103-1965
Note: Use a Teflon Pipe Sealant or equivalent on threads of drain valve.
$59.99
$
Exmark 103-1966
$19.99
$
Exmark 103-2993-03
$63.99
$
Exmark 103-4477-03
$
$
Not available
Exmark 103-2994-03
$34.99
$
Exmark 103-4478-03
$
$
Not available
$
$
Not available
Exmark 103-3094-03
$
$
Not available
Exmark 103-3095-03
$
$
Not available
Exmark 103-2987-03
$33.99
$
Exmark 103-2988-03
$
$
Not available
Exmark 33013-00
$2.99
$
Exmark 33113-020
$0.99
$
$1.49
$
$1.49
$
Exmark 103-3219-03
$
$
Not available
Exmark 103-3427
$684.99
$
Exmark 103-4483
$553.99
$
Exmark 103-3287-03
$68.99
$
Exmark 103-3288-03
$
$
Not available
$1.49
$
$1.49
$
$0.99
$
$0.99
$
