LHP4821KA - Exmark 48" Lazer Z HP Zero-Turn Mower, 21hp Kawasaki (SN: 320000 - 369999) (2002) Kawasaki Electrical Group Parts Diagram

48" Lazer Z HP Zero-Turn Mower, 21hp Kawasaki

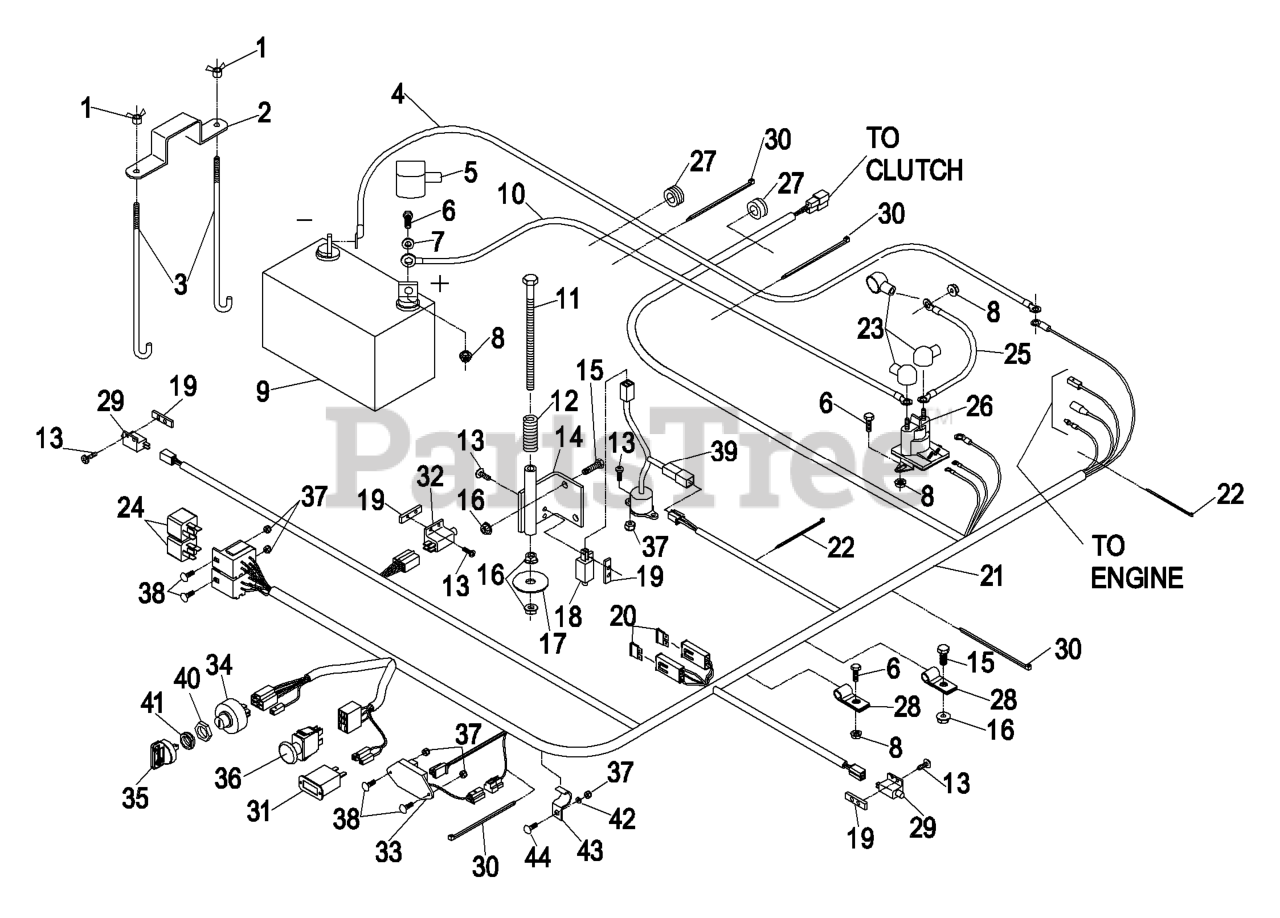

Kawasaki Electrical Group Parts Diagram

  • Title

1

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

2

Exmark 1-633652-03

STRAP-HOLDDOWN

$21.99

$

In Stock, only 3 left!

0

3

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 20+

0

4

Exmark 103-0705

CABLE-GROUND, NEGATIVE

$19.99

$

In Stock, only 2 left!

0

5

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

6

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

8

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

9

Exmark 103-0293

DISCONTINUED (EXMARK)

$

$

Not available

10

Exmark 103-0707

109-7621
(Superseded to 109-7621)

$38.99

$

Usually ships in 3-6 days

0

11

Exmark 1-800282

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

12

Exmark 1-523415

SPRING-SWITCH, SEAT

$33.99

$

In Stock, only 1 left!

0

13

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

14

Exmark 1-652072-03

BRACKET-SWITCH, SEAT

$

$

Not available

15

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Exmark 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

0

18

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 16

0

19

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

0

20

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

21

Exmark 103-0623

HARNESS-WIRE

Note: Use dielectric grease on all wiring harness connectors.

$443.99

$

Usually ships in 3-6 days

0

22

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

24

Exmark 1-643275

RELAY

$23.99

$

In Stock, Qty 20+

0

25

Exmark 1-633306

109-7620
(Superseded to 109-7620)

$27.99

$

In Stock, only 1 left!

0

26

Exmark 1-513075

117-1197
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 20+

0

27

Exmark 1-543286

GROMMET

$12.99

$

Usually ships in 3-6 days

0

28

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

29

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

30

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

31

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

32

Exmark 1-633111

SWITCH

$21.99

$

In Stock, Qty 20+

0

33

Exmark 100-6186

MODULE-DELAY, SEAT

$44.99

$

In Stock, Qty 6

0

34

Exmark 103-0206

109-4736
(Superseded to 109-4736)

$42.99

$

In Stock, Qty 20+

0

35

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

36

Exmark 1-633673

103-5221
(Superseded to 103-5221)

$58.99

$

In Stock, Qty 20+

0

37

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

39

Exmark 1-633782

109-4577
(Superseded to 109-4577)

$

$

Not available

40

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 20+

0

41

Exmark 103-0499

SEAL-SWITCH, IGNITION

$2.99

$

In Stock, only 2 left!

0

42

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Exmark 103-1193

CLIP-HALF, LOOM

$2.99

$

Usually ships in 3-6 days

0

44

Exmark 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 6

0
