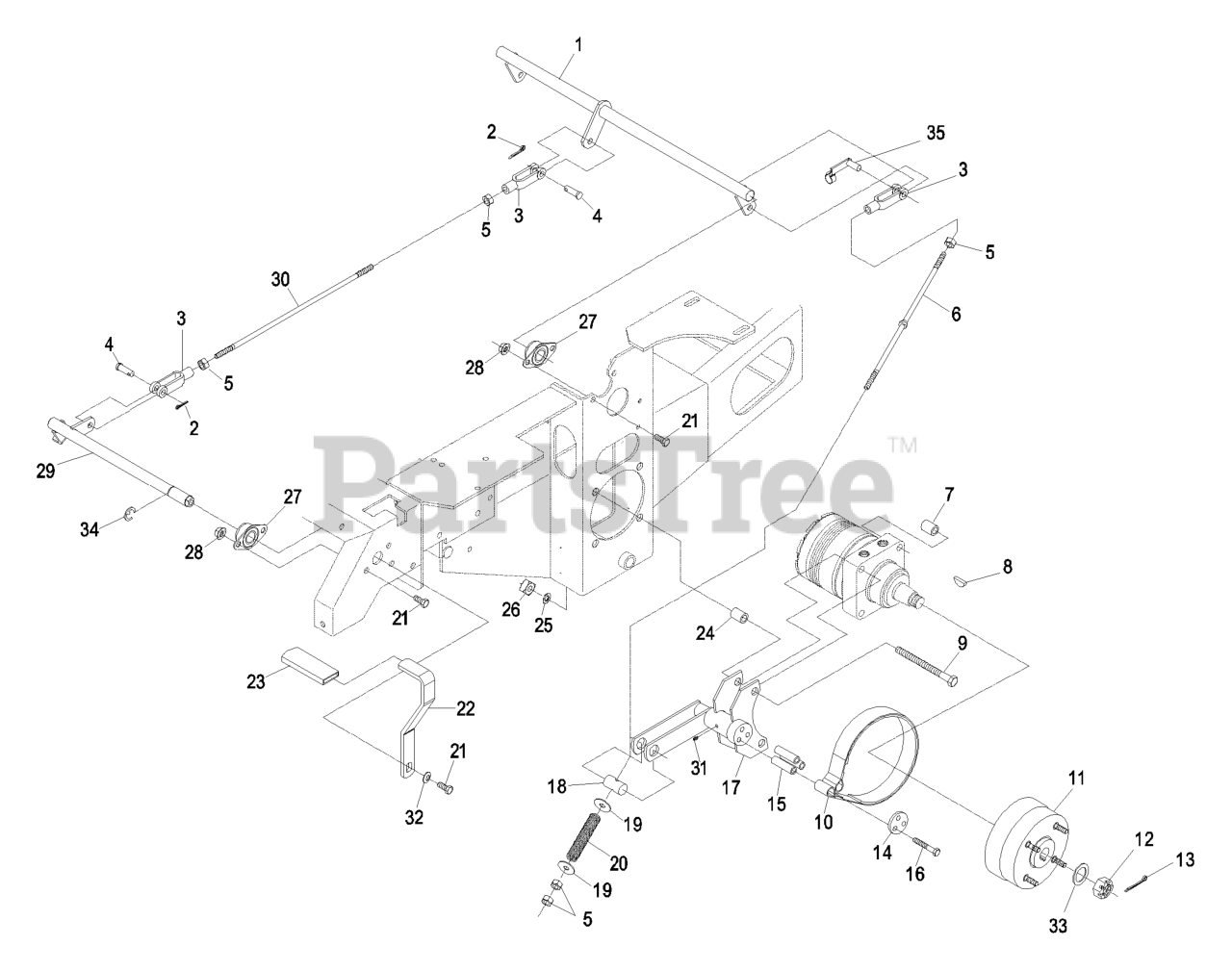

LHP4820KC - Exmark 48" Lazer Z HP Zero-Turn Mower, 20hp Kohler (SN: 440000 - 509999) (2004) Park Brake Group Parts Diagram

48" Lazer Z HP Zero-Turn Mower, 20hp Kohler

Park Brake Group Parts Diagram

  • Title

1

Exmark 1-652073-03

CRANK-BRAKE, PARK

$

$

Not available

2

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

3

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 5

0

4

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 15

0

5

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

6

Exmark 103-0356

ROD-BRAKE

$72.99

$

Usually ships in 3-6 days

0

7

Exmark 1-653068

SPACER-WHEEL

$13.99

$

Usually ships in 3-6 days

0

Exmark 1-653380

SPACER,WHEEL

Note: Not Illustrated.

$10.99

$

Usually ships in 3-6 days

0

8

Exmark 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 12

0

9

Exmark 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

Exmark 1-800348

SCREW, HH

$7.99

$

Usually ships in 3-6 days

0

10

Exmark 103-0355

103-9761
(Superseded to 103-9761)

$44.99

$

In Stock, Qty 12

0

11

Exmark 103-0590

WHEEL HUB ASM

$182.99

$

In Stock, Qty 8

0

Exmark 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 11

0

12

Exmark 1-809036

NUT-HH

$37.99

$

In Stock, Qty 5

0

13

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 18

0

14

Exmark 103-0374

RETAINER-BAND, BRAKE

$5.49

$

In Stock, only 4 left!

0

15

Exmark 103-0384

SPACER

$1.99

$

In Stock, Qty 6

0

16

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

17

Exmark 103-0352-03

BRACKET-BRAKE

$217.99

$

Usually ships in 3-6 days

0

Exmark 103-0353-03

WLD,BRAKE 52

Note: Not Illustrated.

$191.99

$

Usually ships in 3-6 days

0

18

Exmark 1-633144

PIN-TRUNION

$13.99

$

Usually ships in 3-6 days

0

19

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

20

Exmark 1-633454

SPRING-BRAKE

$10.99

$

In Stock, only 1 left!

0

21

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

22

Exmark 103-4630

ASM,BRAKE HANDLE W/ GRIP

$

$

Not available

23

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

24

Exmark 1-653069

SPACER-WHEEL

$12.99

$

Usually ships in 3-6 days

0

Exmark 1-653381

SPACER,WHEEL

Note: Not Illustrated.

$10.99

$

Usually ships in 3-6 days

0

25

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

26

Exmark 103-0131

109-5618
(Superseded to 109-5618)

$6.49

$

In Stock, Qty 17

0

27

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

28

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

29

Exmark 103-3116

SHAFT-BRAKE, PARKING

$99.99

$

Usually ships in 3-6 days

0

30

Exmark 1-653061

LINKAGE-HANDLE, BRAKE

$21.99

$

In Stock, only 1 left!

0

31

Exmark 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

32

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

33

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

34

Exmark 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

35

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 11

0

Exmark 1-653074-03

HANDLE-BRAKE, PARK

$58.99

$

Usually ships in 3-6 days

0
