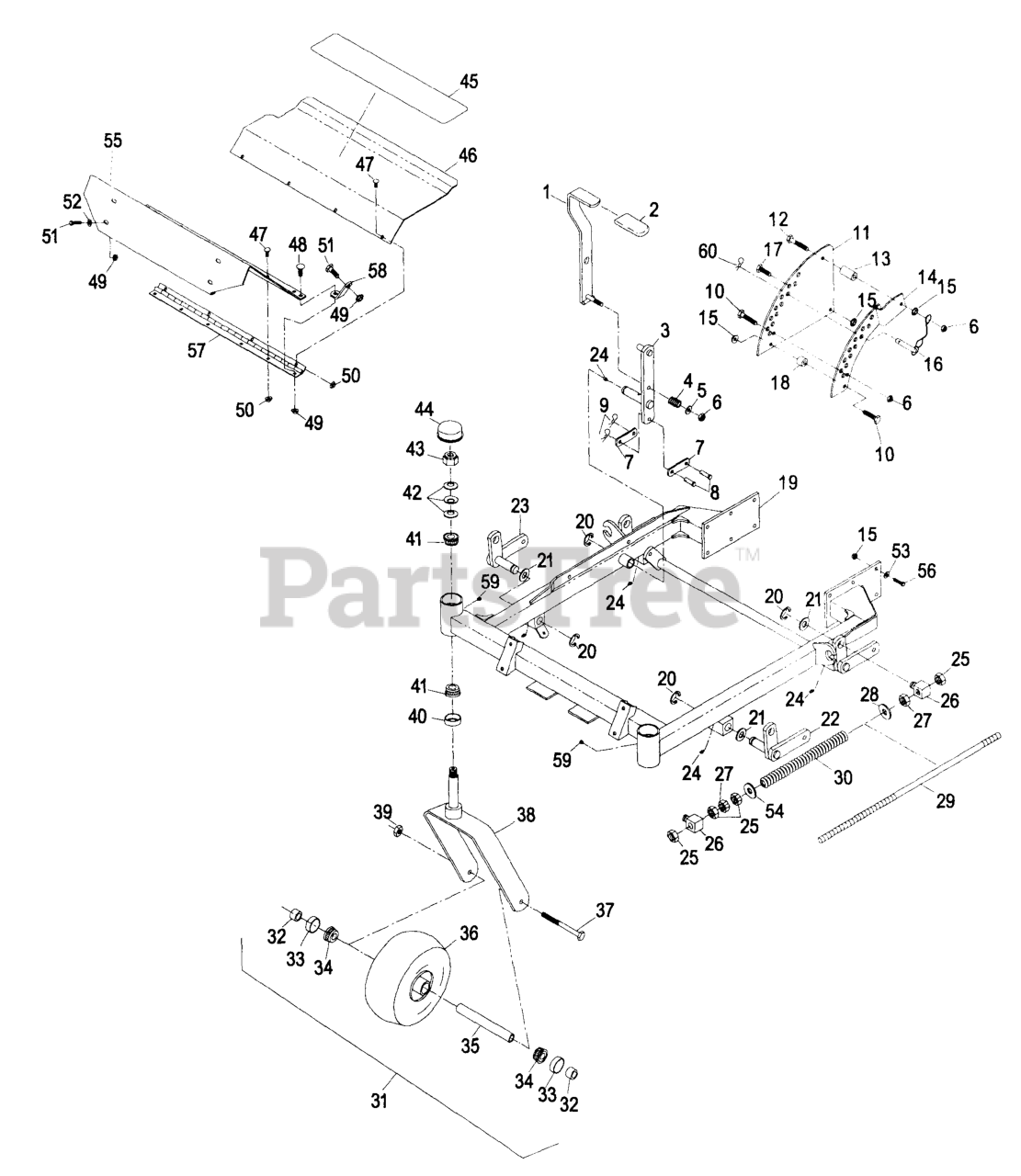

LHP4417KA - Exmark 44" Lazer Z HP Zero-Turn Mower, 17hp Kawasaki (SN: 190000 - 219999) (1999) Front Frame Group Parts Diagram

44" Lazer Z HP Zero-Turn Mower, 17hp Kawasaki

Front Frame Group Parts Diagram

  • Title

1

Exmark 1-652023-03

103-2081
(Superseded to 103-2081)

$

$

Not available

2

Exmark 1-633295

GRIP-LEVER, LIFT

$8.49

$

In Stock, Qty 10

0

3

Exmark 1-652027-03

ARM-DECK, LIFT

$

$

Not available

4

Exmark 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

6

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

7

Exmark 1-633068

ARM-LIFT, DECK

$12.99

$

Usually ships in 3-6 days

0

8

Exmark 1-808284

PIN-CLEVIS

$3.99

$

In Stock, Qty 20+

0

9

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

10

Exmark 1-800295

323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

11

Exmark 1-653230-01

PLATE-LIFT, DECK

$

$

Not available

12

Exmark 1-800299

323-13
(Superseded to 323-13)

$3.99

$

In Stock, Qty 20+

0

13

Exmark 1-633082

BUSHING-LEVER, LIFT

$12.99

$

In Stock, only 2 left!

0

14

Exmark 1-652235-01

PLATE-LIFT, DECK

$

$

Not available

15

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

16

Exmark 1-633097

PIN-HITCH (W/LANYARD)

$26.99

$

In Stock, only 2 left!

0

17

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

18

Exmark 1-633080

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

19

Exmark 1-652103-01

103-1250
(Superseded to 103-1250)

$2108.99

$

Usually ships in 3-6 days

0

20

Exmark 1-808505

32151-103
(Superseded to 32151-103)

$3.49

$

In Stock, Qty 20+

0

21

Exmark 1-805271

3256-29
(Superseded to 3256-29)

$2.99

$

In Stock, only 2 left!

0

22

Exmark 1-652013-01

WLD,SHAFT LH

$

$

Not available

23

Exmark 1-652014-01

WLD,SHAFT RH

$

$

Not available

24

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.99

$

In Stock, Qty 20+

0

25

Exmark 1-804522

3217-11
(Superseded to 3217-11)

$3.99

$

In Stock, Qty 20+

0

26

Exmark 1-633441

SWIVEL-DECK MOUNT, REAR

$28.99

$

Usually ships in 3-6 days

0

27

Exmark 1-804755

3218-6
(Superseded to 3218-6)

$6.99

$

In Stock, Qty 18

0

28

Exmark 1-805268

3256-7
(Superseded to 3256-7)

$1.99

$

In Stock, Qty 20+

0

29

Exmark 1-653011

ROD-LIFT, DECK

$

$

Not available

30

Exmark 1-653009

SPRING-COMPRESSION

$19.99

$

Usually ships in 3-6 days

0

31

Exmark 1-632586

1-634662
(Superseded to 1-634662)

$261.99

$

In Stock, only 1 left!

0

32

Exmark 1-633581

SPACER-BEARING

$4.99

$

In Stock, Qty 16

0

33

Exmark 1-633580

SEAL-BEARING

$9.49

$

In Stock, only 3 left!

0

34

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$22.99

$

In Stock, Qty 20+

0

Exmark 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 14

0

35

Exmark 1-633579

SPACER-CASTER, FRONT

$14.99

$

Usually ships in 3-6 days

0

36

Exmark 1-633582

WHEEL AND TIRE ASM

$160.99

$

In Stock, only 1 left!

0

Exmark 1-633002

TIRE

$104.99

$

Usually ships in 3-6 days

0

Exmark 1-633583

WHEEL

$

$

Not available

37

Exmark 1-800339

325-36
(Superseded to 325-36)

$0.99

$

In Stock, Qty 20+

0

38

Exmark 1-632511-01

116-8883
(Superseded to 116-8883)

$165.99

$

In Stock, only 2 left!

0

39

Exmark 1-804269

3296-45
(Superseded to 3296-45)

$4.49

$

In Stock, Qty 20+

0

40

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

41

Exmark 1-543509

Cone-Bearing Tapered Roller

$14.99

$

In Stock, Qty 20+

0

Exmark 1-543508

CUP-BEARING

$8.49

$

In Stock, Qty 12

0

42

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

43

Exmark 1-804266

3296-51
(Superseded to 3296-51)

$6.99

$

In Stock, Qty 20+

0

44

Exmark 1-543513

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

45

Exmark 1-633553

PAD-ANTISKID

$15.99

$

In Stock, Qty 6

0

46

Exmark 1-653070-01

1-654298
(Superseded to 1-654298)

$252.99

$

Usually ships in 3-6 days

0

47

Exmark 1-807528

3229-10
(Superseded to 3229-10)

$1.49

$

In Stock, only 3 left!

0

48

Exmark 1-807503

3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

49

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

50

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 20+

0

51

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

52

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

53

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

54

Exmark 1-805267

3256-27
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 15

0

55

Exmark 1-653052-01

DISCONTINUED

$

$

Not available

56

Exmark 1-800293

323-7
(Superseded to 323-7)

$3.49

$

In Stock, Qty 20+

0

57

Exmark 1-653049

HINGE-FLOORPAN

Note: (Piano)

$53.99

$

Usually ships in 3-6 days

0

58

Exmark 1-653039-01

BRACKET,FLOOR PAN

$

$

Not available

59

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 10

0

60

Exmark 1-806005

PIN-COTTER

Note: (Service only)

$2.99

$

In Stock, Qty 20+
