LHP27KC565 - Exmark 56" Lazer Z HP Zero-Turn Mower, 27hp Kohler (SN: 720000 - 789999) (2008) Spindle Assembly Parts Diagram

56" Lazer Z HP Zero-Turn Mower, 27hp Kohler

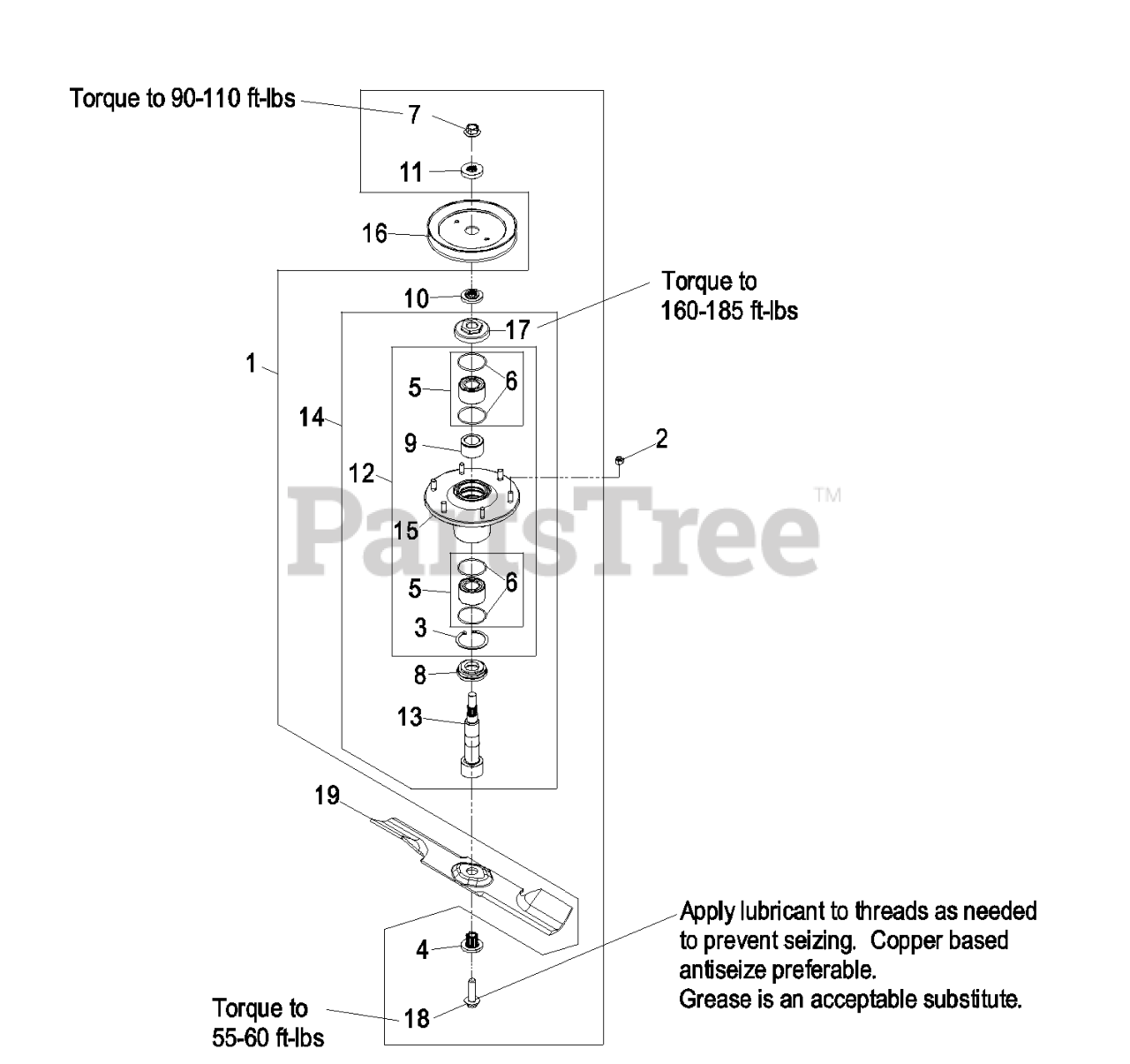

Spindle Assembly Parts Diagram

  • Title

1

Exmark 109-2102

ASM, CUTTER HSG W/MNT HRD

$747.99

$

Usually ships in 3-6 days

0

2

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

3

Exmark 92-5581

RING-RETAINING

$3.49

$

In Stock, only 1 left!

0

4

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

0

5

Exmark 109-2064

ASM, BEARING W/ORINGS

$116.99

$

In Stock, only 4 left!

0

6

Exmark 103-5895

O-RING

$1.49

$

In Stock, Qty 5

0

7

Exmark 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

8

Exmark 103-9504

GUARD,BOTTOM

$11.99

$

In Stock, only 2 left!

0

9

Exmark 103-9506

SPACER,BEARING

$10.99

$

In Stock, Qty 8

0

10

Exmark 103-9522

SPACER,SPLINED STEPPED

$6.99

$

In Stock, Qty 9

0

11

Exmark 103-9523

SPACER,SPLINED

$8.49

$

In Stock, only 2 left!

0

12

Exmark 103-9539

ASM,CUTTER HOUSING

$374.99

$

In Stock, only 2 left!

0

13

Exmark 103-9540

116-0725
(Superseded to 116-0725)

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the spindles and bearings. DO NOT use a copper or nickel based antisieze.

$155.99

$

Usually ships in 3-6 days

0

14

Exmark 103-9541

109-6917
(Superseded to 109-6917)

$521.99

$

In Stock, Qty 7

0

15

Exmark 109-0764

ASM,HOUSING W/STUDS

$95.99

$

In Stock, only 1 left!

0

16

Exmark 109-2798

116-1443
(Superseded to 116-1443)

$36.99

$

In Stock, only 3 left!

0

Exmark 109-1023

SHEAVE, BLADE DRIVE 6.13

$41.99

$

In Stock, Qty 5

0

Exmark 109-0914

SHEAVE,BLADE DRIVE 6.75

$

$

Not available

17

Exmark 109-1058

109-0916
(Superseded to 109-0916)

$24.99

$

In Stock, only 1 left!

0

18

Exmark 109-5958

109-9220
(Superseded to 109-9220)

$8.49

$

In Stock, Qty 20+

0

19

Exmark 103-8251

109-6460-S
(Superseded to 109-6460-S)

$37.99

$

In Stock, Qty 10

0

Exmark 103-8296

103-8296-S
(Superseded to 103-8296-S)

$38.99

$

In Stock, Qty 5

0

Exmark 103-8370

116-5496-S
(Superseded to 116-5496-S)

$46.99

$

In Stock, Qty 7

0

Exmark 103-8250

109-6466-S
(Superseded to 109-6466-S)

$37.99

$

In Stock, Qty 8

0

Exmark 103-8420

109-6466-S
(Superseded to 109-6466-S)

$37.99

$

In Stock, Qty 8

0

Exmark 103-8288

103-8288-S
(Superseded to 103-8288-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK465 (46"), MK505 (50"), and MK565 (56").

$45.99

$

In Stock, only 2 left!

0

Exmark 103-9605

109-6461-S
(Superseded to 109-6461-S)

$38.99

$

In Stock, only 3 left!

0

Exmark 103-9598

103-9598-S
(Superseded to 103-9598-S)

$39.99

$

Usually ships in 3-6 days

0

Exmark 103-9600

116-5497-S
(Superseded to 116-5497-S)

$49.99

$

In Stock, Qty 11

0

Exmark 103-9599

109-6467-S
(Superseded to 109-6467-S)

$37.99

$

Usually ships in 3-6 days

0

Exmark 103-9601

109-6461-S
(Superseded to 109-6461-S)

$38.99

$

In Stock, only 3 left!

0

Exmark 103-9602

109-6467-S
(Superseded to 109-6467-S)

$37.99

$

Usually ships in 3-6 days

0

Exmark 109-5876

109-5876-S
(Superseded to 109-5876-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK465 (46"), MK505 (50"), and MK565 (56").

$39.99

$

In Stock, Qty 5

0

Exmark 103-9606

109-6462-S
(Superseded to 109-6462-S)

$39.99

$

In Stock, only 3 left!

0

Exmark 103-9603

103-9603-S
(Superseded to 103-9603-S)

$39.99

$

Usually ships in 3-6 days

0

Exmark 103-9607

116-5498-S
(Superseded to 116-5498-S)

$38.99

$

In Stock, only 3 left!

0

Exmark 103-9604

109-6468-S
(Superseded to 109-6468-S)

$36.99

$

In Stock, only 3 left!

0

Exmark 103-9608

109-6462-S
(Superseded to 109-6462-S)

$39.99

$

In Stock, only 3 left!

0

Exmark 103-9609

109-6468-S
(Superseded to 109-6468-S)

$36.99

$

In Stock, only 3 left!

0

Exmark 109-5877

109-5877-S
(Superseded to 109-5877-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK465 (46"), MK505 (50"), and MK565 (56").

$43.99

$

Usually ships in 3-6 days

0
