LHP27KC505 - Exmark 50" Lazer Z HP Zero-Turn Mower, 27hp Kohler (SN: 720000 - 789999) (2008) Hydraulic Group Parts Diagram

50" Lazer Z HP Zero-Turn Mower, 27hp Kohler

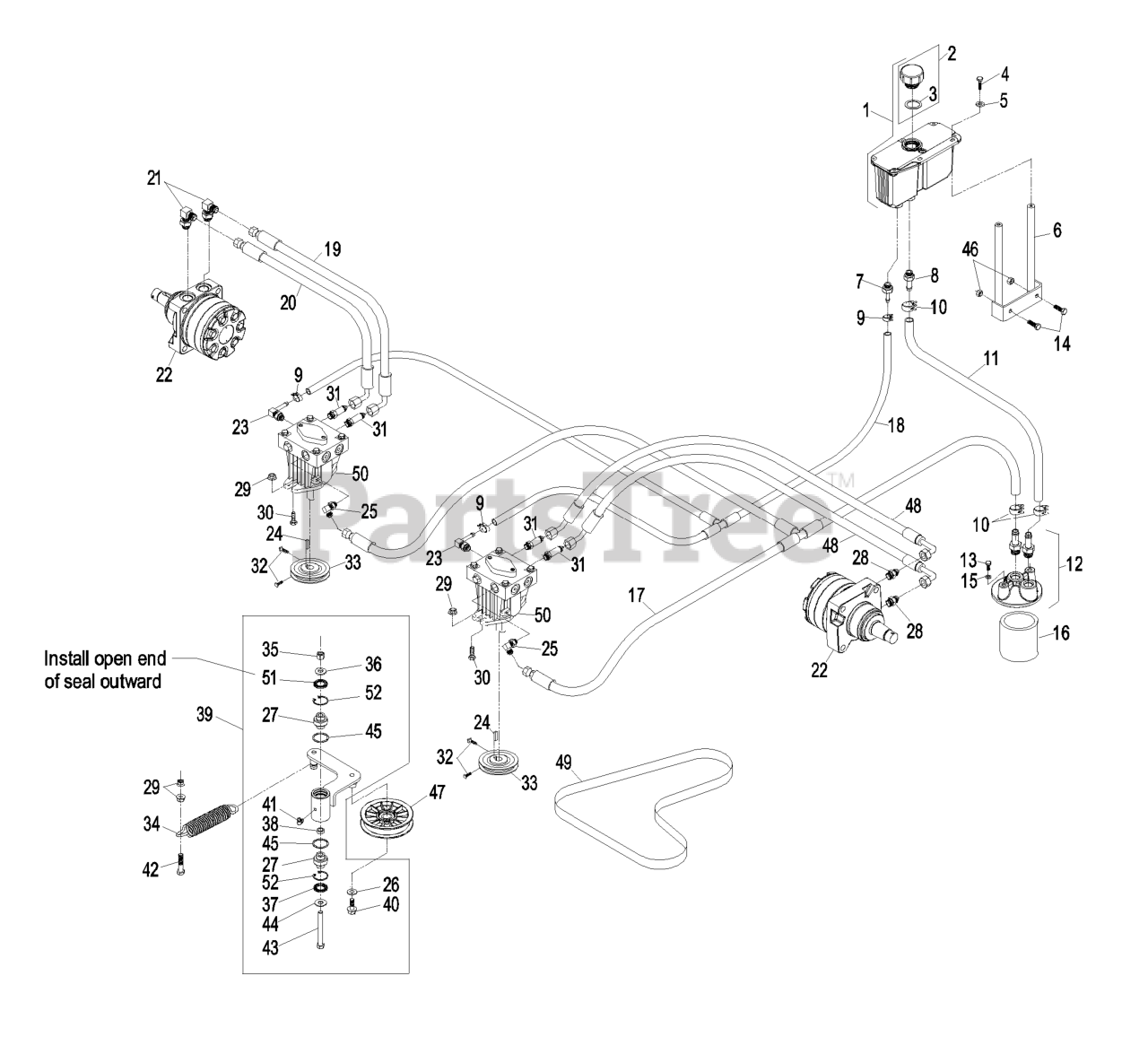

Hydraulic Group Parts Diagram

  • Title

1

Exmark 103-1947

HYD RESERVOIR ASM

$263.99

$

Usually ships in 3-6 days

0

2

Exmark 103-7615

KIT,HYD RES CAP W/GASKET

$32.99

$

In Stock, Qty 20+

0

3

Exmark 103-1949

GASKET-CAP
(Superseded to 142-2792)

$1.49

$

In Stock, Qty 20+

0

4

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Exmark 103-3071-03

STAND-RESERVOIR

$56.99

$

Usually ships in 3-6 days

0

7

Exmark 103-1801

ADAPTER-STRAIGHT

$30.99

$

In Stock, only 1 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

8

Exmark 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

9

Exmark 103-1716

CLAMP-HOSE

Note: (17/32)

$1.49

$

In Stock, Qty 8

0

10

Exmark 103-1988

CLAMP-HOSE

Note: (11/16)

$1.49

$

In Stock, Qty 20+

0

11

Exmark 103-3077

HYD HOSE ASM

$12.99

$

In Stock, only 1 left!

0

12

Exmark 103-2889

FILTER HEAD ASM

$107.99

$

Usually ships in 3-6 days

0

Exmark 103-1912

ADAPTER-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

13

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, Qty 14

0

16

Exmark 109-4180

FILTER-25 MICRON, BI-DIRE

$49.99

$

In Stock, Qty 13

0

Exmark 1-523541

ELEMENT-FILTER, WINTER

Note: (Winter) Use only for operation below 32°F (0°C).

$49.99

$

In Stock, only 1 left!

0

17

Exmark 103-2930

HYD HOSE ASM

$86.99

$

In Stock, only 3 left!

0

18

Exmark 103-2357

HYD HOSE ASM

$50.99

$

In Stock, only 1 left!

0

19

Exmark 1-653187

HOSE-REAR, RH

$83.99

$

In Stock, only 3 left!

0

Exmark 1-653437

HOSE,HYDRAULIC

$96.99

$

In Stock, only 1 left!

0

20

Exmark 109-2524

HOSE,RH FRONT 46/50

$96.99

$

In Stock, only 1 left!

0

Exmark 109-2525

HOSE,RH FRONT 56

$105.99

$

Usually ships in 3-6 days

0

21

Exmark 1-633605

FITTING-HYD, 90 DEG

Note: (RH Wheel Motor)

$49.99

$

Usually ships in 3-6 days

0

Exmark 1-603919

O-RING

$3.49

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

22

Exmark 1-523328

MOTOR-WHEEL

$1375.99

$

Usually ships in 3-6 days

0

Exmark 103-6995

OUTPUT SHAFT AND SEALS KI

$708.99

$

Usually ships in 3-6 days

0

Exmark 103-6994

SEAL KIT

$330.99

$

Usually ships in 3-6 days

0

23

Exmark 103-1799

ELBOW-90 DEG

$29.99

$

In Stock, only 2 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

24

Exmark 1-807272

KEY

$5.99

$

In Stock, Qty 9

0

25

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$23.99

$

In Stock, only 2 left!

0

Exmark 1-603921

237-42
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

26

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

28

Exmark 1-603991

FITTING-STRAIGHT

Note: (LH Wheel Motor)

$21.99

$

In Stock, only 4 left!

0

Exmark 1-603919

O-RING

$3.49

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

29

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

30

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

31

Exmark 103-1940

ADAPTER-STR, LONG

$25.99

$

In Stock, only 3 left!

0

Exmark 1-603920

O-RING

$3.99

$

In Stock, Qty 20+

0

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

32

Exmark 1-803050

SCREW-SET

Note: Use Pro-Lock, Nut Type (P/N 1-840022).

$2.99

$

In Stock, Qty 18

0

33

Exmark 1-653156

PULLEY

$68.99

$

In Stock, only 3 left!

0

34

Exmark 103-4480

116-0032
(Superseded to 116-0032)

$34.99

$

In Stock, Qty 6

0

35

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

36

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

37

Exmark 103-3505

SEAL-LIP, DOUBLE

$5.49

$

In Stock, Qty 20+

0

38

Exmark 103-5677

SPACER

$2.99

$

In Stock, Qty 13

0

39

Exmark 109-4311

KIT, PUMP IDLER LHP/LCT

$199.99

$

In Stock, only 3 left!

0

40

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

41

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

42

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

43

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

44

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

45

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

46

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

47

Exmark 109-4077

PULLEY-IDLER, FLAT

$21.99

$

In Stock, Qty 14

0

48

Exmark 109-4608

HOSE,LH 46/50

$132.99

$

Usually ships in 3-6 days

0

Exmark 109-4609

HOSE,LH 56

$132.99

$

Usually ships in 3-6 days

0

49

Exmark 103-4761

BELT
(Superseded to 103-4761-SL)

$31.99

$

Usually ships in 3-6 days

0

50

Exmark 103-1942

PUMP-HYD

$1134.99

$

In Stock, only 2 left!

0

Exmark 103-2664

INPUT SHAFT KIT

$779.99

$

Usually ships in 3-6 days

0

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

Exmark 103-2666

CYLINDER BLOCK KIT

$546.99

$

Usually ships in 3-6 days

0

Exmark 105-6184

SEAL OVERHAUL KIT

$84.99

$

In Stock, Qty 12

0

Exmark 103-2741

SHOCK VALVE KIT

$

$

Not available

51

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 20+

0

52

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0
