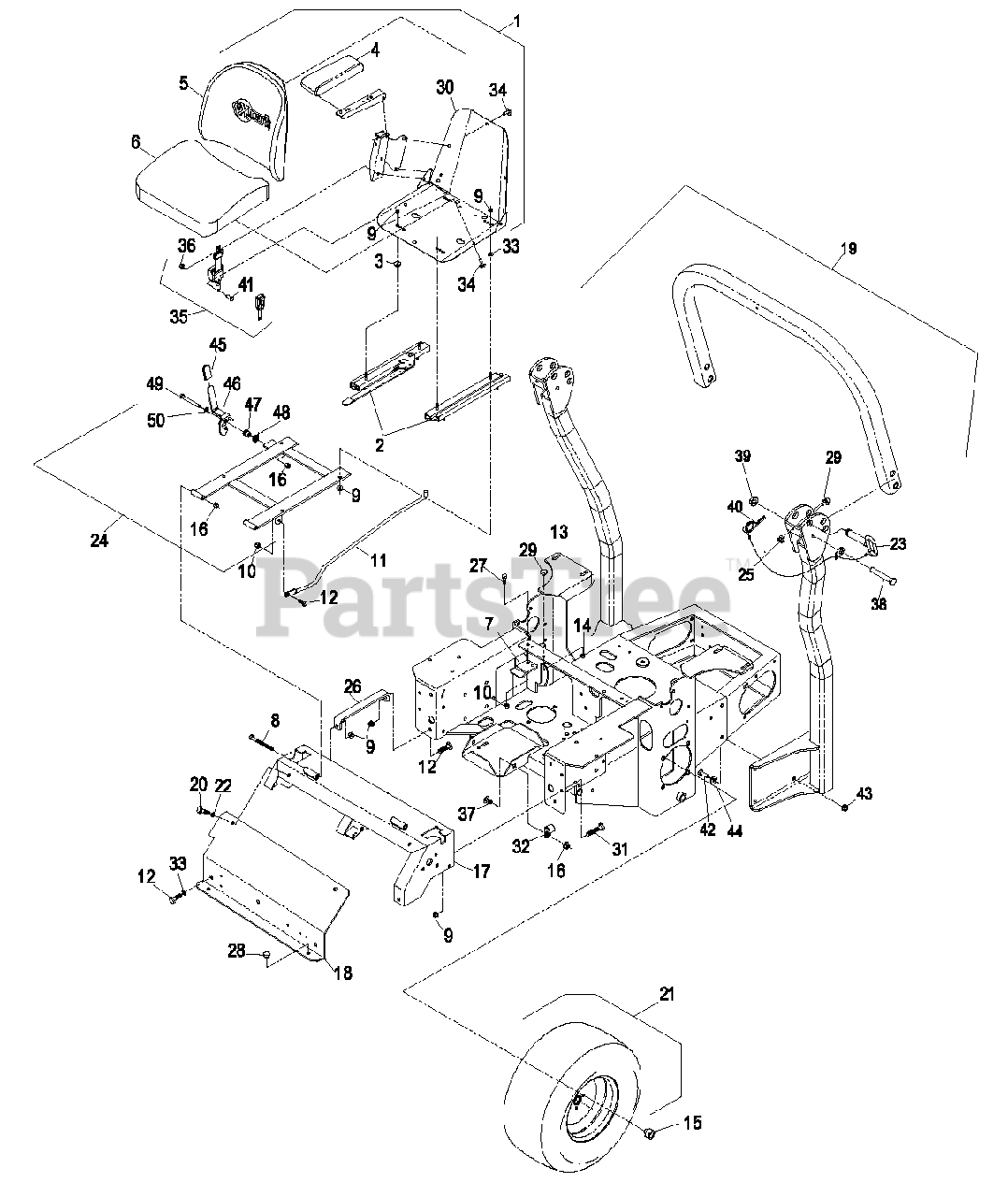

LHP27KC505 - Exmark 50" Lazer Z HP Zero-Turn Mower, 27hp Kohler (SN: 670000 - 719999) (2007) Mainframe Group Parts Diagram

50" Lazer Z HP Zero-Turn Mower, 27hp Kohler

Mainframe Group Parts Diagram

  • Title
1

Exmark 103-3524

KIT,SEAT W/ARMREST ADJ.

Note: Includes armrests and seat back decal. Does not include seat belt or tracks.

$679.99

$

In Stock, only 1 left!

0

2

Exmark 1-643255

TRACK-SEAT

$200.99

$

In Stock, only 2 left!

0

2

Exmark 103-8386

116-1685
(Superseded to 116-1685)

$34.99

$

In Stock, only 1 left!

0

3

Exmark 1-543401

SPACER-TRACK

$5.49

$

In Stock, Qty 8

0

4

Exmark 103-0292

CUSHION,ARMREST RH

$97.99

$

In Stock, only 2 left!

0

4

Exmark 103-0291

CUSHION,ARMREST LH

Note: Not Illustrated.

$97.99

$

In Stock, only 4 left!

0

5

Exmark 103-3520

CUSHION,SEAT BACK

$232.99

$

In Stock, only 2 left!

0

6

Exmark 103-3521

CUSHION,SEAT BOTTOM

$264.99

$

In Stock, Qty 5

0

7

Exmark 103-5961

CATCH-LATCH, SEAT

$

$

Not available

8

Exmark 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

9

$1.49

$

In Stock, Qty 20+

0

10

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

11

Exmark 103-1731

ROD-RETAINER, SEAT

$19.99

$

In Stock, only 1 left!

0

12

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Exmark 109-3970

ASM,MAINFRAME W/DECALS

$

$

Not available

14

$0.99

$

In Stock, Qty 6

0

15

Exmark 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

16

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Exmark 109-2164

ASM, CONSOLE W/DECALS

$

$

Not available

18

Exmark 109-2165

DISCONTINUED

$

$

Not available

19

Exmark FRPSL

KIT, LAZER HP / CT 2 POST

Note: Rollover protection frame is serviced as a complete assembly only. Includes complete ROPS frame, mounting hardware, fold pivot and locking hardware, seat frame assembly item #35.

$512.99

$

Usually ships in 3-6 days

0

20

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Exmark 103-2769

ASM,WHEEL AND TIRE

$

$

Not available

21

Exmark 103-2770

WHEEL AND TIRE ASM

$

$

Not available

21

$185.99

$

Usually ships in 3-6 days

0

21

$173.99

$

Usually ships in 3-6 days

0

21

Exmark 103-2771

TIRE
(Superseded to 127-9523)

$284.99

$

Usually ships in 3-6 days

0

22

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Exmark 103-4553

PIN-FOLD, ROPS

Note: Includes ROPS fold pin plus hairpin item #40.

$79.99

$

In Stock, only 2 left!

0

24

Exmark 103-4423

ASM,SEAT FRAME

$197.99

$

Usually ships in 3-6 days

0

25

Exmark 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

26

Exmark 103-7935-03

BRACKET-PANEL, INSTRUMENT

$

$

Not available

27

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

$6.49

$

In Stock, Qty 11

0

29

Exmark 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 13

0

30

Exmark 1-633859

FRAME-SEAT

$196.99

$

In Stock, only 3 left!

0

31

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

32

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

33

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Exmark 103-8383

BOLT-SEAT

$2.99

$

Usually ships in 3-6 days

0

35

Exmark 110-0883

RETRACTABLE SEATBELT KIT

$271.99

$

Usually ships in 3-6 days

0

36

Exmark 3296-7

NUT-LOCK

$3.99

$

Usually ships in 3-6 days

0

37

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

38

Exmark 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

39

$1.99

$

In Stock, only 2 left!

0

40

Exmark 107-3155

HAIRPIN

$6.49

$

Usually ships in 3-6 days

0

41

Exmark 3212-4

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

42

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

43

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

44

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

45

Exmark 103-4434

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

46

Exmark 107-3083

LATCH ASM

$26.99

$

Usually ships in 3-6 days

0

47

Exmark 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

48

Exmark 107-0076

SPRING-TORSION

$13.99

$

Usually ships in 3-6 days

0

49

Exmark 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

50

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+
