LHP23KC523 - Exmark 52" Lazer Z HP Zero-Turn Mower, 23hp Kohler (SN: 720000 - 789999) (2008) Park Brake Group Parts Diagram

52" Lazer Z HP Zero-Turn Mower, 23hp Kohler

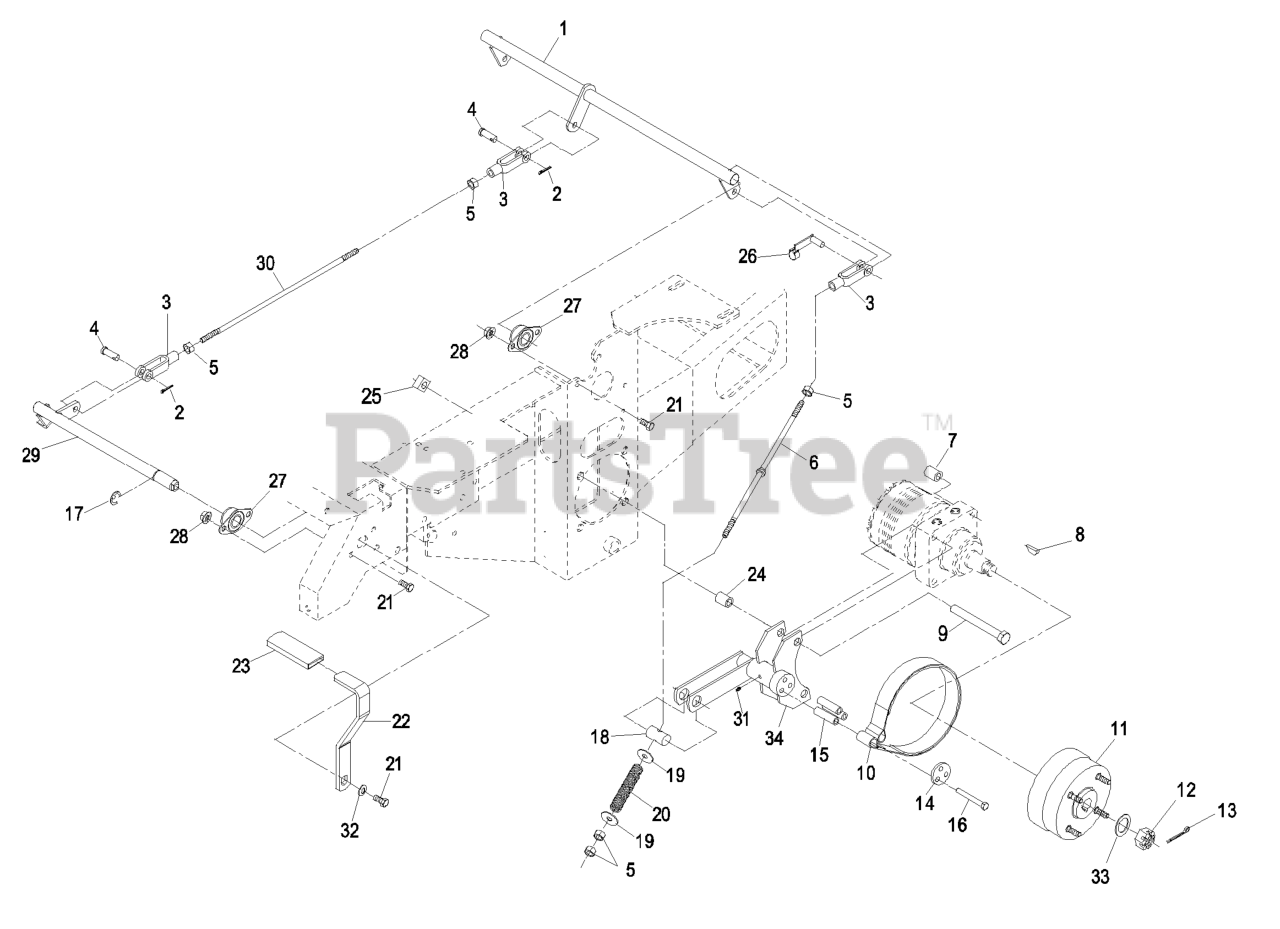

Park Brake Group Parts Diagram

  • Title
1

Exmark 1-652073-03

CRANK-BRAKE, PARK

$

$

Not available

2

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

3

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 8

0

4

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 5

0

5

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

6

Exmark 103-0356

ROD-BRAKE

$72.99

$

Usually ships in 3-6 days

0

7

Exmark 1-653380

SPACER,WHEEL

Note: (Long)

$10.99

$

Usually ships in 3-6 days

0

8

Exmark 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 12

0

9

Exmark 325-17

SCREW-HH

$5.99

$

In Stock, only 1 left!

0

10

Exmark 103-9761

BAND,BRAKE

$44.99

$

In Stock, only 4 left!

0

11

Exmark 103-0590

WHEEL HUB ASM

$182.99

$

In Stock, Qty 8

0

Exmark 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 11

0

12

$37.99

$

In Stock, Qty 5

0

13

Exmark 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 18

0

14

Exmark 103-0374

RETAINER-BAND, BRAKE

$5.49

$

In Stock, only 4 left!

0

15

$1.99

$

In Stock, Qty 6

0

16

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

17

$1.99

$

In Stock, Qty 14

0

18

Exmark 1-633144

PIN-TRUNION

$13.99

$

Usually ships in 3-6 days

0

19

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

20

Exmark 1-633454

SPRING-BRAKE

$10.99

$

Usually ships in 3-6 days

0

21

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

22

Exmark 103-4630

ASM,BRAKE HANDLE W/ GRIP

Note: (1-653074-03)

$

$

Not available

23

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

24

Exmark 1-653381

SPACER,WHEEL

Note: (Short)

$10.99

$

Usually ships in 3-6 days

0

25

Exmark 109-5618

NUT-SQUARE, SPECIAL

$6.49

$

In Stock, Qty 17

0

26

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 14

0

27

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

28

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

29

Exmark 103-3116

SHAFT-BRAKE, PARKING

$99.99

$

Usually ships in 3-6 days

0

30

Exmark 1-653061

LINKAGE-HANDLE, BRAKE

$21.99

$

In Stock, only 1 left!

0

31

Exmark 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

32

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

33

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

34

Exmark 103-0353-03

WLD,BRAKE 52

$191.99

$

Usually ships in 3-6 days

0
