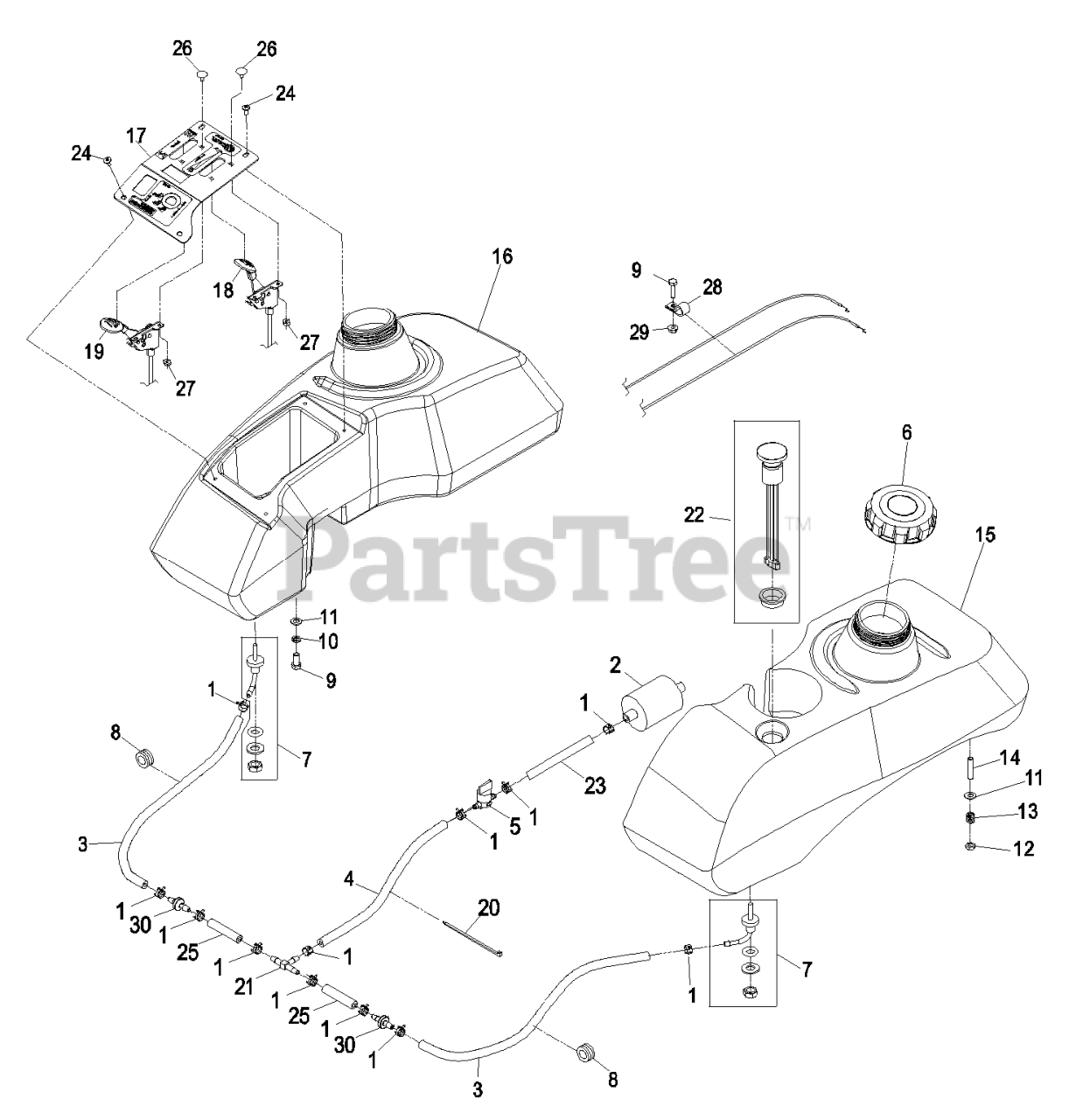

LHP23KC523 - Exmark 52" Lazer Z HP Zero-Turn Mower, 23hp Kohler (SN: 720000 - 789999) (2008) Fuel Group Parts Diagram

52" Lazer Z HP Zero-Turn Mower, 23hp Kohler

Fuel Group Parts Diagram

  • Title

1

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

2

Kohler Part No. 2405010 Fuel Filter

Note: Refer to Engine Owner's manual. (Fuel filter Must be 15 Micron or smaller).

$

$

Not available

3

Exmark 109-2225

HOSE,FUEL

$9.99

$

Usually ships in 3-6 days

0

4

Exmark 109-0275

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

5

Exmark 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 14

0

6

Exmark 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, only 2 left!

0

7

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on fuel fitting.

$35.99

$

In Stock, only 3 left!

0

Exmark 103-2784

O-RING,BULKHEAD FITTING

$13.99

$

In Stock, only 3 left!

0

8

Exmark 1-543296

GROMMET

$8.49

$

In Stock, only 4 left!

0

9

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

11

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

12

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

13

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 1-633023

STUD

Note: Use Pro-Lock, Retaining Type (P/N 1-840023, .5ml tube) on stud threads going into tank.

$6.49

$

Usually ships in 3-6 days

0

15

Exmark 103-4898

KIT,FUEL TANK LH LHP

Note: (LH) Includes tank, cap, fitting, and studs. LH tank also includes fuel gauge.

$

$

Not available

16

Exmark 109-0686

ASM, LHP RH FUEL TANK S.O

Note: (RH) Includes tank, cap, fitting, and studs. LH tank also includes fuel gauge.

$

$

Not available

17

Exmark 109-4509

PANEL,CONTROL W/DECALS

$76.99

$

Usually ships in 3-6 days

0

18

Exmark 109-3987

CONTROL-THROTTLE

Note: (Red)

$38.99

$

In Stock, only 2 left!

0

19

Exmark 109-4211

CONTROL,CHOKE

Note: (Black) (Kohler)

$44.99

$

In Stock, only 1 left!

0

Exmark 109-4210

CONTROL,CHOKE

Note: (Black) (Kawasaki)

$41.99

$

In Stock, only 4 left!

0

20

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

Note: (Large)

$0.99

$

In Stock, Qty 8

0

21

Exmark 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 2 left!

0

22

Exmark 103-6563

KIT, HP FUEL GAGE REPL.

$62.99

$

In Stock, Qty 6

0

23

Exmark 109-0660

HOSE-FUEL

$3.99

$

In Stock, only 3 left!

0

24

Exmark 109-2661

SCREW-PPH

Note: Snug fit only on slotted holes, Do Not Overtighten, tank must be able to expand.

$1.49

$

In Stock, Qty 11

0

25

Exmark 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 12

0

26

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

27

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

29

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Exmark 99-5000

VALVE-CHECK, FUEL

$9.49

$

In Stock, only 2 left!
