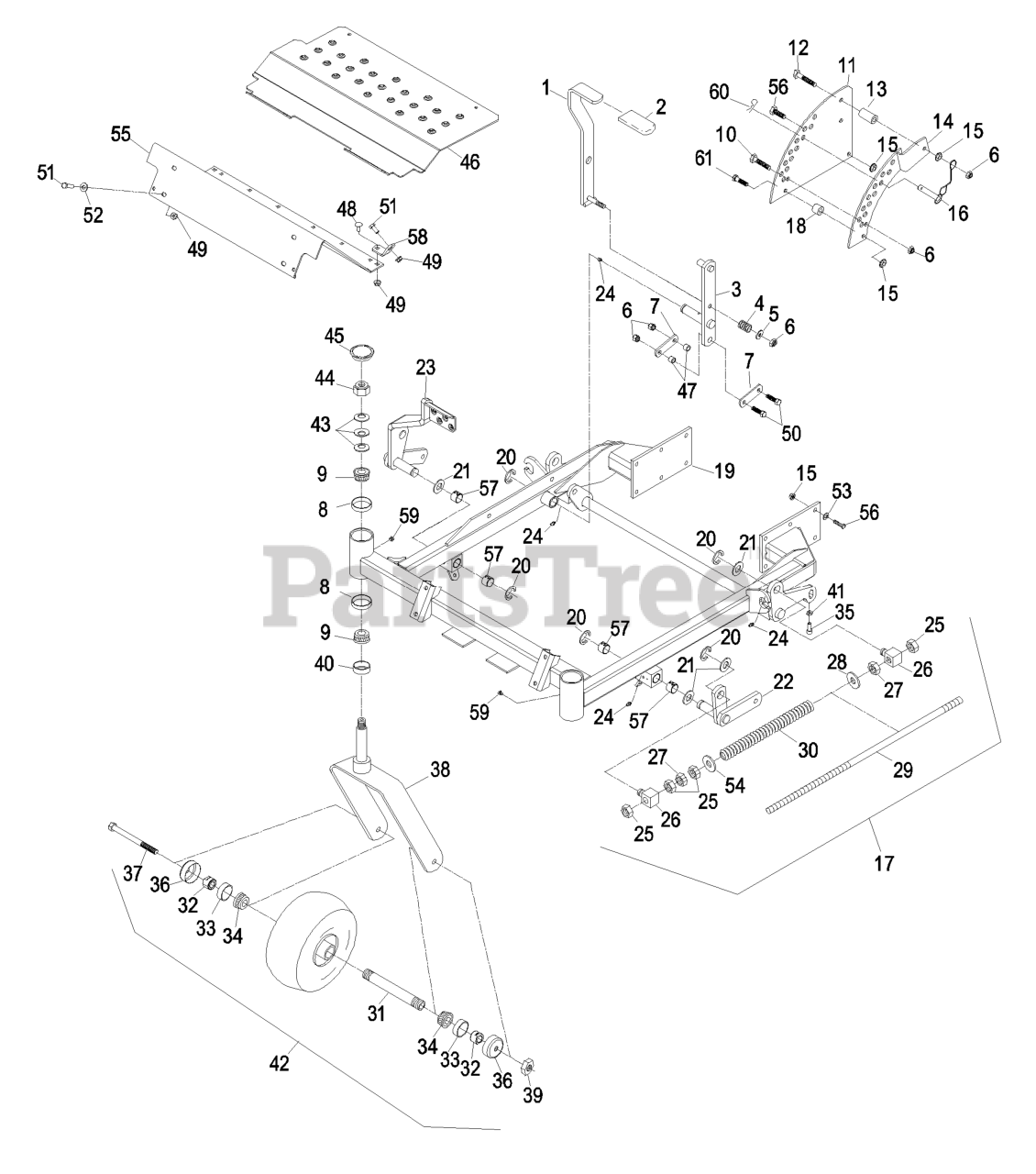

LHP23KC523 - Exmark 52" Lazer Z HP Zero-Turn Mower, 23hp Kohler (SN: 720000 - 789999) (2008) Front Frame Group Parts Diagram

52" Lazer Z HP Zero-Turn Mower, 23hp Kohler

Front Frame Group Parts Diagram

  • Title

1

Exmark 103-2081

ASM, LIFT LEVER / GRIP

Note: (103-2078-03)

$

$

Not available

2

Exmark 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, only 3 left!

0

3

Exmark 103-3718-03

WLD, DECK LIFT ARM-LHP

$112.99

$

Usually ships in 3-6 days

0

4

Exmark 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

6

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 14

0

7

Exmark 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

0

8

Exmark 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 15

0

9

Exmark 1-543509

Cone-Bearing Tapered Roller

$13.99

$

In Stock, Qty 20+

0

10

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Exmark 1-653230-01

PLATE-LIFT, DECK

$

$

Not available

12

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 5

0

13

Exmark 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

14

Exmark 109-1901

PLATE-LIFT, DECK W/DECAL

$

$

Not available

15

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

16

Exmark 1-633097

PIN-HITCH (W/LANYARD)

Note: Includes hitch pin plus hairpin, item #60.

$23.99

$

In Stock, only 2 left!

0

17

Exmark 103-1987

FRONT SPRING ASM

$88.99

$

In Stock, only 1 left!

0

18

Exmark 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

19

Exmark 103-3833

KIT, FRONT FRAME-LHP52

Note: Includes frame weldment plus items #9, #22, #23, #40, #45, and #59.

$

$

Not available

20

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

0

21

Exmark 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

22

Exmark 1-652013-01

WLD,SHAFT LH

$70.99

$

Usually ships in 3-6 days

0

23

Exmark 109-7615-01

WLD,FOOT DECK LIFT

Note: Deck lift assist kit P/N 109-5201 (includes items #20, #21, and #23).

$147.99

$

Usually ships in 3-6 days

0

24

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

25

Exmark 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 15

0

26

Exmark 1-633441

SWIVEL-DECK MOUNT, REAR

$27.99

$

Usually ships in 3-6 days

0

27

Exmark 3218-6

NUT-JAM

$6.49

$

In Stock, Qty 10

0

28

Exmark 1-805517

WASHER

$

$

Not available

29

Exmark 1-653011

ROD-LIFT, DECK

$23.99

$

Usually ships in 3-6 days

0

30

Exmark 1-653009

SPRING-COMPRESSION

$17.99

$

Usually ships in 3-6 days

0

31

Exmark 103-3155

126-5360
(Superseded to 126-5360)

$15.99

$

In Stock, only 2 left!

0

32

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5 ml tube) on spacer nut.

$9.49

$

In Stock, Qty 12

0

33

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

34

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 12

0

35

Exmark 3274-18

SCREW-HSH

$9.49

$

In Stock, Qty 7

0

36

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

37

Exmark 325-36

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Exmark 1-632511-01

116-8883
(Superseded to 116-8883)

$147.99

$

In Stock, only 2 left!

0

39

Exmark 3296-45

NUT-HEX

Note: (Light Thin)

$4.49

$

In Stock, Qty 20+

0

40

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 19

0

41

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

42

Exmark 103-5189

ASM, WHEEL AND TIRE W/ AX

Note: (Pneumatic)

$249.99

$

In Stock, only 2 left!

0

Exmark 1-633002

TIRE

Note: (Pneumatic)

$99.99

$

Usually ships in 3-6 days

0

Exmark 103-3785

109-9126
(Superseded to 109-9126)

Note: (Semi-Pneumatic)

$320.99

$

In Stock, only 4 left!

0

43

Exmark 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

44

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 10

0

45

Exmark 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

46

Exmark 109-8861-01

FLOORPAN,LIFTOUT

$168.99

$

In Stock, only 1 left!

0

47

Exmark 103-1918

BUSHING

$7.99

$

In Stock, Qty 6

0

48

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

49

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

50

Exmark 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

51

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

52

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

53

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

54

Exmark 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

55

Exmark 109-8862-01

FLOORPAN,FRONT LIFTOUT

$

$

Not available

56

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

57

Exmark 103-1982

BUSHING,SPRING

$

$

Not available

58

Exmark 99-3870-01

BRACKET-FLOORPAN

$

$

Not available

59

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

60

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

61

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
