LHP23KC523 - Exmark 52" Lazer Z HP Zero-Turn Mower, 23hp Kohler (SN: 720000 - 789999) (2008) Electrical Diagram Parts Diagram

52" Lazer Z HP Zero-Turn Mower, 23hp Kohler

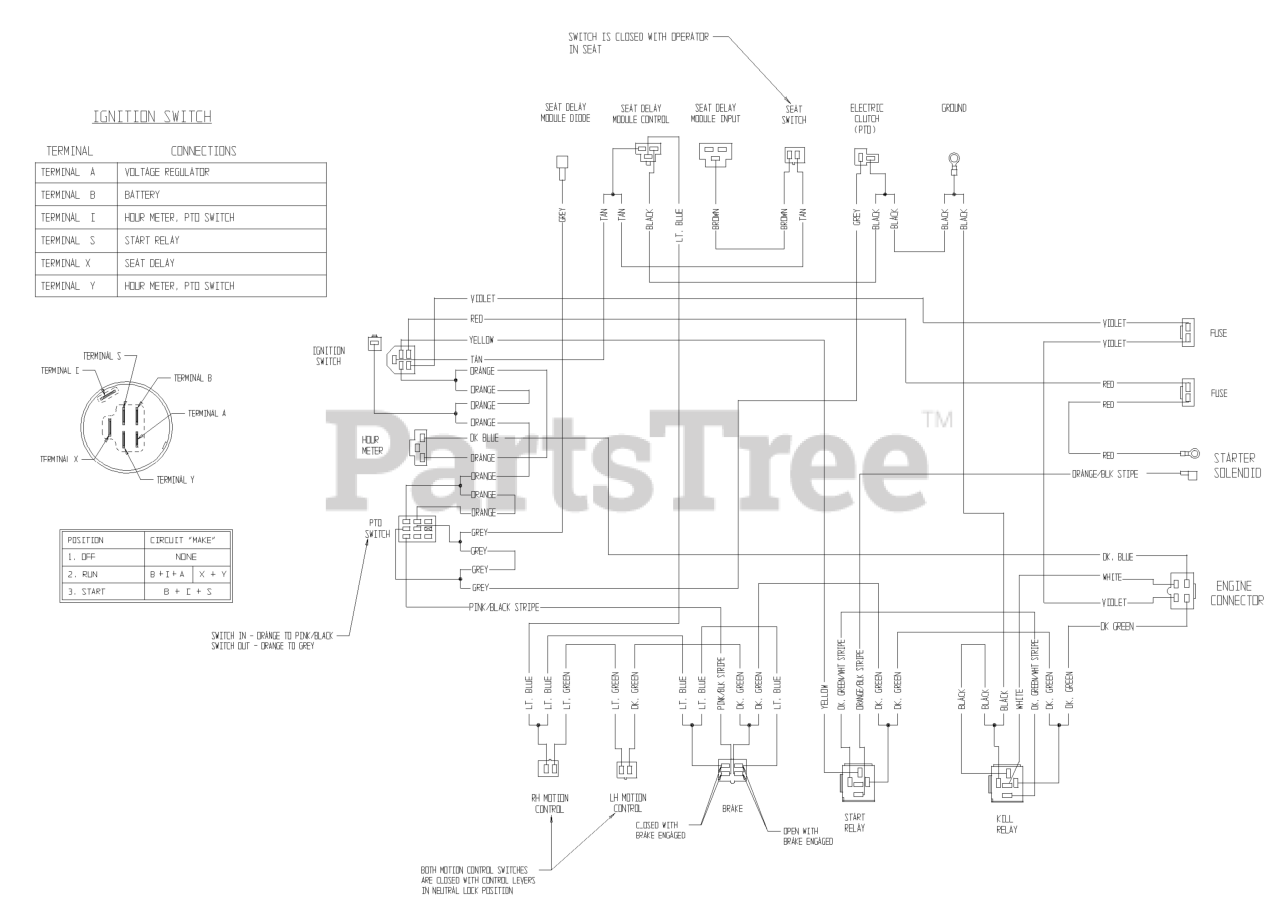

Electrical Diagram Parts Diagram

  • Title

Diagram Only, No Parts List Available

$

$

Not available
