LHP23KA505 - Exmark 50" Lazer Z HP Zero-Turn Mower, 23hp Kawasaki (SN: 720000 - 789999) (2008) Mainframe Group Parts Diagram

50" Lazer Z HP Zero-Turn Mower, 23hp Kawasaki

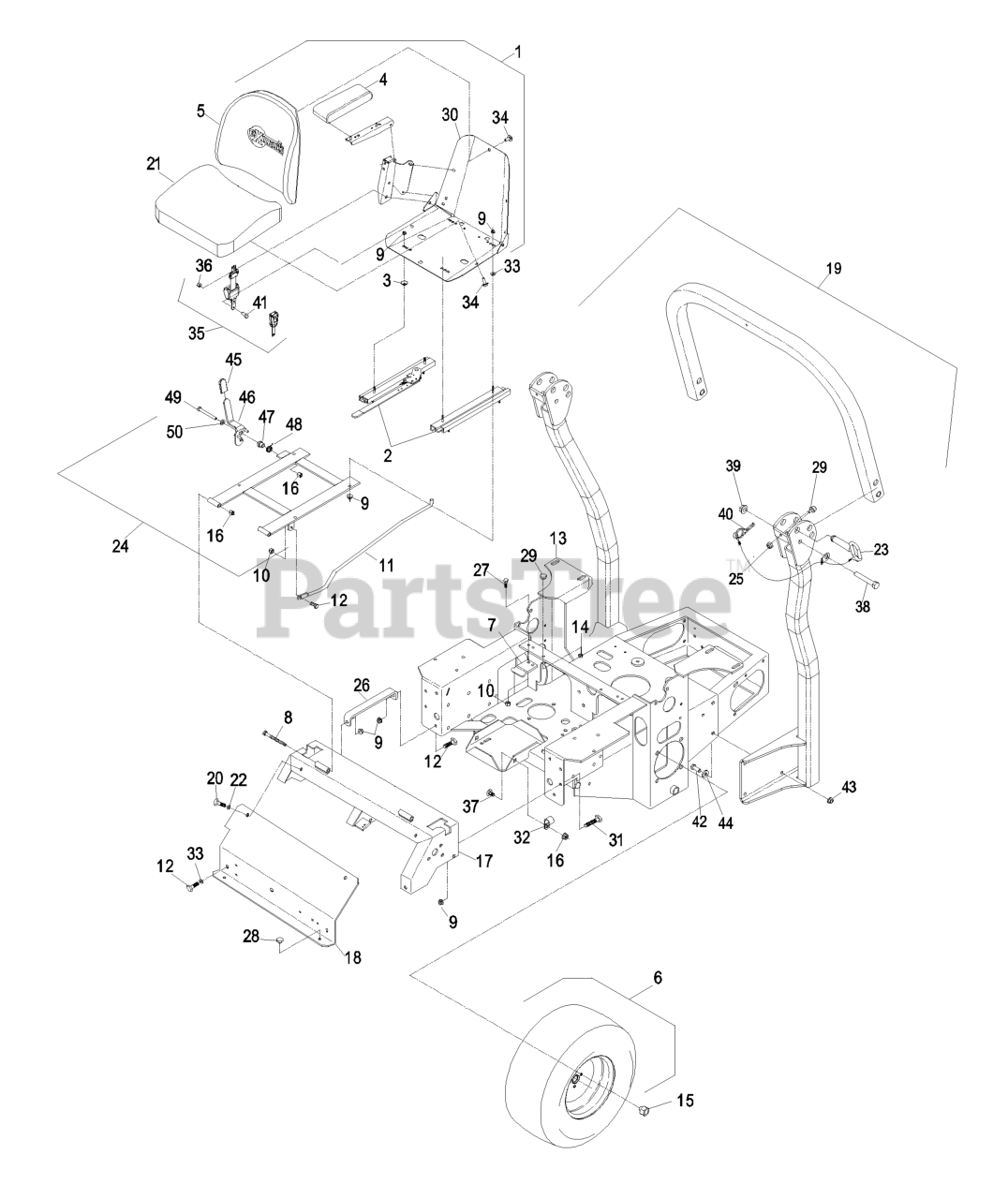

Mainframe Group Parts Diagram

  • Title

1

Exmark 103-3524

KIT,SEAT W/ARMREST ADJ.

Note: Includes armrests and seat back decal. Does not include seat belt or tracks.

$686.99

$

In Stock, only 1 left!

0

2

Exmark 1-643255

TRACK-SEAT

Note: (4" Adjust.)

$217.99

$

In Stock, only 2 left!

0

Exmark 103-8386

116-1685
(Superseded to 116-1685)

$36.99

$

In Stock, only 1 left!

0

3

Exmark 1-543401

SPACER-TRACK

$5.49

$

In Stock, Qty 8

0

4

Exmark 103-0292

CUSHION,ARMREST RH

Note: (RH)

$98.99

$

In Stock, only 2 left!

0

Exmark 103-0291

CUSHION,ARMREST LH

Note: (LH) Not Illustrated.

$98.99

$

In Stock, only 4 left!

0

5

Exmark 103-3520

CUSHION,SEAT BACK

$235.99

$

In Stock, only 1 left!

0

6

Exmark 103-2769

ASM,WHEEL AND TIRE

Note: (46" MultiTrac C/S) Standard on all models except LHP19KA465 S/N 739053 & Higher

$

$

Not available

Exmark 103-2770

WHEEL AND TIRE ASM

Note: 50"&56" MultiTrac C/S)

$

$

Not available

Exmark 1-653010

WHEEL AND TIRE ASM

Note: (46" TurfMaster) Standard on LHP19KA465 S/N 739053 & Higher

$484.99

$

Usually ships in 3-6 days

0

Exmark 1-653158

WHEEL

Note: (46" Deck)

$182.99

$

Usually ships in 3-6 days

0

Exmark 1-653161

WHEEL

Note: (50" & 56")

$183.99

$

Usually ships in 3-6 days

0

Exmark 103-2771

TIRE
(Superseded to 127-9523)

Note: (MultiTrac C/S)

$284.99

$

Usually ships in 3-6 days

0

Exmark 1-653160

TIRE
(Superseded to 135-2216)

Note: TurfMaster)

$210.99

$

Usually ships in 3-6 days

0

7

Exmark 103-5961

CATCH-LATCH, SEAT

$

$

Not available

8

Exmark 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

9

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Exmark 103-1731

ROD-RETAINER, SEAT

$21.99

$

In Stock, only 1 left!

0

12

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Exmark 109-3970

ASM,MAINFRAME W/DECALS

Note: (109-3967-03)

$

$

Not available

14

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

15

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

16

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Exmark 109-2164

ASM, CONSOLE W/DECALS

Note: (103-9843-03)

$

$

Not available

18

Exmark 109-2165

DISCONTINUED

Note: (103-7939-03)

$

$

Not available

19

Exmark FRPSL

KIT, LAZER HP / CT 2 POST

Note: Rollover protection frame is serviced as a complete assembly only. Includes complete ROPS frame, mounting hardware, fold pivot and locking hardware, seat frame assembly item #24, catch item #7, and seat belt assembly item #35.

$512.99

$

Usually ships in 3-6 days

0

20

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Exmark 103-3521

CUSHION,SEAT BOTTOM

$259.99

$

In Stock, Qty 5

0

22

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Exmark 103-4553

PIN-FOLD, ROPS

Note: Includes ROPS fold pin plus hairpin item #40.

$79.99

$

In Stock, only 2 left!

0

24

Exmark 110-5850

SEAT FRAME AND LATCH ASM

$170.99

$

Usually ships in 3-6 days

0

25

Exmark 3296-73

NUT-LOCK, NI

Note: (black)

$5.49

$

In Stock, Qty 9

0

26

Exmark 103-7935-03

BRACKET-PANEL, INSTRUMENT

$

$

Not available

27

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

29

Exmark 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 9

0

30

Exmark 1-633859

FRAME-SEAT

$191.99

$

In Stock, only 3 left!

0

31

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, Qty 15

0

32

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

33

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Exmark 103-8383

BOLT-SEAT

$2.99

$

Usually ships in 3-6 days

0

35

Exmark 110-0883

RETRACTABLE SEATBELT KIT

$274.99

$

Usually ships in 3-6 days

0

36

Exmark 3296-7

NUT-LOCK

$3.99

$

Usually ships in 3-6 days

0

37

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

38

Exmark 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

39

Exmark 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

40

Exmark 107-3155

HAIRPIN

$6.49

$

Usually ships in 3-6 days

0

41

Exmark 3212-4

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

42

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

43

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

44

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

45

Exmark 103-4434

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

46

Exmark 110-5808

Latch, Seat

$

$

Currently unavailable

47

Exmark 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

48

Exmark 110-5831

SPRING-TORSION

$10.99

$

Usually ships in 3-6 days

0

49

Exmark 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

0

50

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
