LHE-2475 - Lesco Edger (SN: 002704 - 999999) Ignition, Starter Parts Diagram

Edger

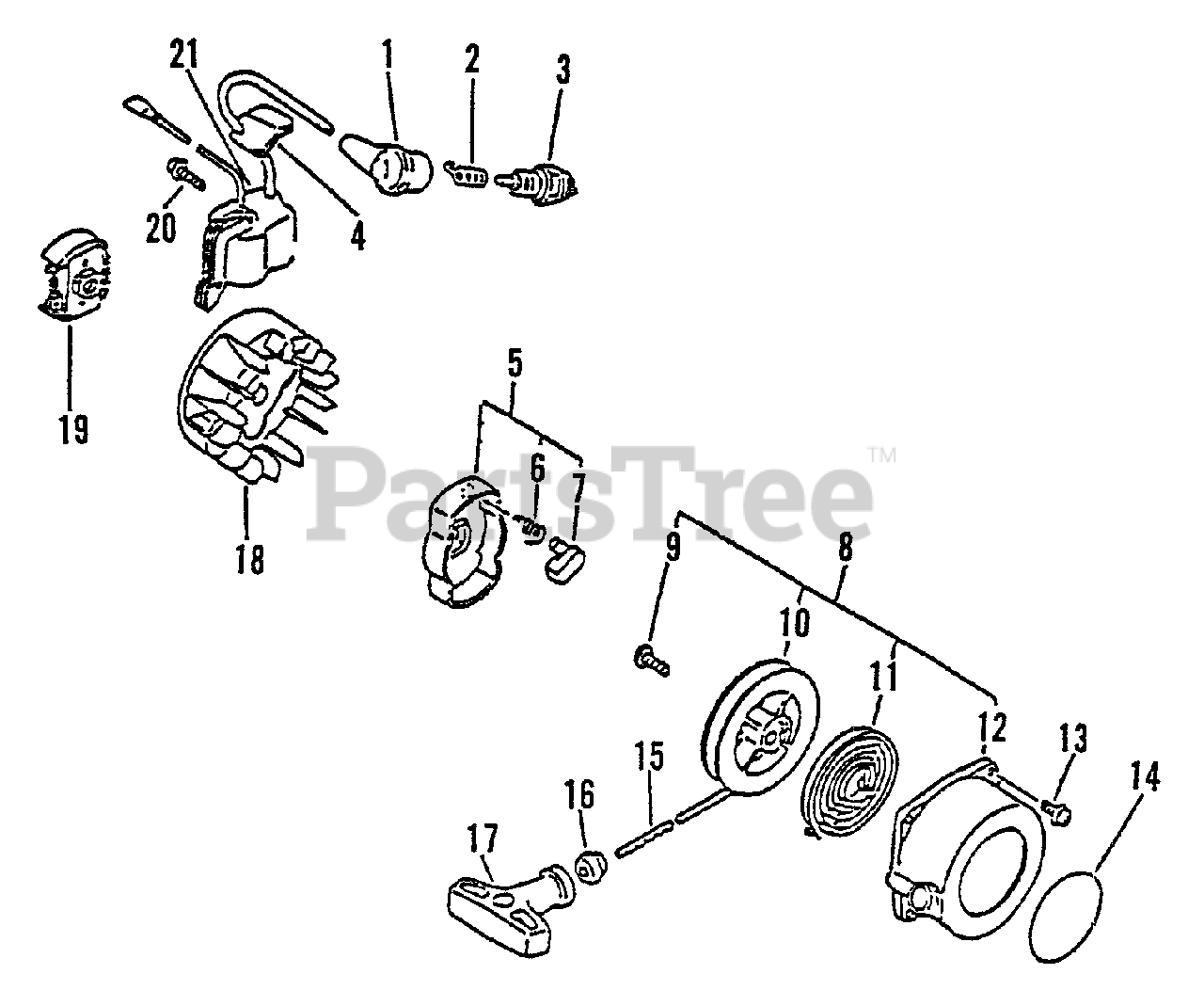

Ignition, Starter Parts Diagram

  • Title

1

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

2

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

3

Echo 99944500071

SPARK PLUG -- BPM-7Y

$3.49

$

In Stock, only 4 left!

0

4

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 3 left!

0

5

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: Includes ITEMS 6 & 7

$16.99

$

In Stock, Qty 19

0

6

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 11

0

7

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

8

Echo 17720042031

STARTER ASSY
(Superseded to 17720042032)

Note: INCLUDES ITEMS 9 - 12, 15 - 17

$49.99

$

In Stock, Qty 20+

0

9

Echo 17723644330

SCREW

$3.49

$

In Stock, only 2 left!

0

10

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$8.99

$

In Stock, Qty 17

0

11

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 14

0

12

Echo 17723242032

CASE, STARTER

$20.99

$

In Stock, only 2 left!

0

13

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

14

Echo 89011507960

LABEL - LESCO

$6.49

$

Usually ships in 2-4 days

0

15

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

16

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 15

0

17

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

18

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$105.99

$

Usually ships in 2-4 days

0

19

Echo 17500042031

CLUTCH ASSY
(Superseded to 17500056830)

$27.99

$

In Stock, Qty 6

0

20

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

21

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

$

$

Not available

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$29.99

$

In Stock, Qty 9

0
