LHE-2475 - Lesco Edger (SN: 001001 - 002703) Engine, Crankcase, Fan Housing, Cover Parts Diagram

Edger

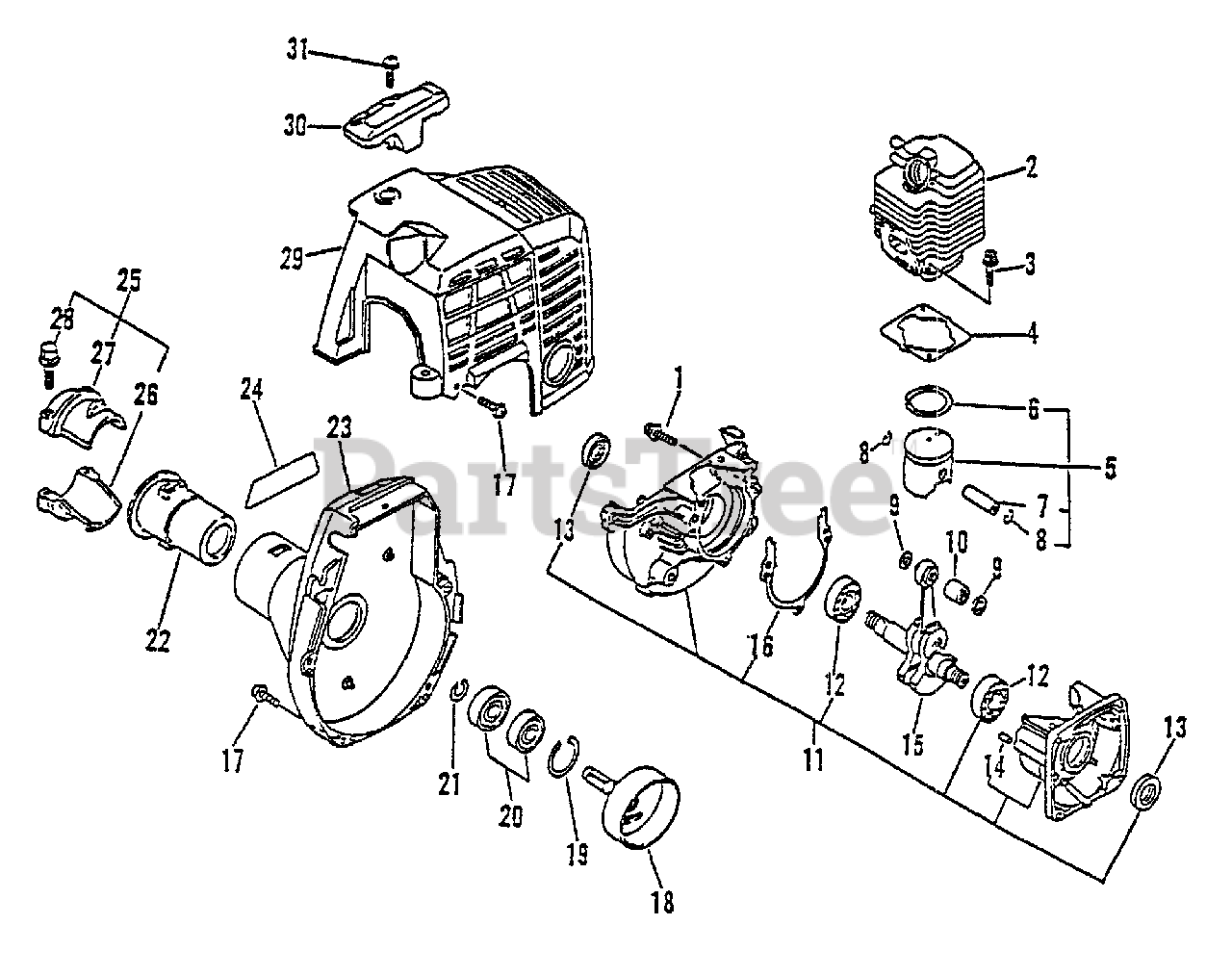

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

1

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

2

Echo 10101109560

CYLINDER
(Superseded to 10101108960)

$

$

Not available

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

4

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: USE GASKET KIT P/N 88900051030

$3.99

$

In Stock, Qty 6

0

5

Echo 10000052130

PISTON KIT

Note: Includes ITEMS 6-8

$70.99

$

In Stock, only 1 left!

0

6

Echo 10001121230

RING, PISTON

$7.49

$

Usually ships in 2-4 days

0

7

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

9

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

11

Echo 10020451030

CRANKCASE KIT
(Superseded to 10020451031)

Note: INCLUDES ITEMS 1, 12 - 14 & 16

$131.99

$

Usually ships in 2-4 days

0

12

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

13

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

Echo 10010052130

CRANKSHAFT ASSY
(Superseded to 10010052131)

$147.99

$

Usually ships in 2-4 days

0

16

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT P/N 88900051030

$

$

Not available

17

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

18

Echo 17500548930

DRUM, CLUTCH
(Superseded to 17500548931)

$13.99

$

In Stock, Qty 6

0

19

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

20

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 13

0

21

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

22

Echo 61091027832

CUSHION

$7.99

$

In Stock, only 1 left!

0

23

Echo 10150352130

FAN CASE ASSY
(Superseded to 10150452130)

$

$

Not available

24

Echo 89011554630

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

25

Echo 61090327432

HOLDER KIT
(Superseded to P021013520)

Note: INCLUDES ITEMS 26 - 28

$9.99

$

Usually ships in 2-4 days

0

26

Echo 61092327432

CLAMP, MAIN PIPE

$6.49

$

Usually ships in 2-4 days

0

27

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$5.99

$

Usually ships in 2-4 days

0

28

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, only 4 left!

0

29

Echo 10151453130

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

30

Echo 15991248930

GUARD - TOP

$6.49

$

Usually ships in 2-4 days

0

31

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

Echo SB1024

SHORT BLOCK -- SB1024
(Superseded to SB1027)

$

$

Not available

Echo 88900051030

GASKET KIT

$21.99

$

Usually ships in 2-4 days

0

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

$3.99

$

In Stock, Qty 6

0

------------------

GASKET, CRANKCASE

Note: Included in Gasket Kit P/N 88900051030

$

$

Not available

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 7

0

Echo 14586651030

GASKET, EXHAUST

$5.49

$

In Stock, only 2 left!

0

Echo 14551051030

GASKET, EXHAUST

$3.99

$

Usually ships in 2-4 days

0
