LHE-2475 - Lesco Edger (SN: 001001 - 002703) Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

Edger

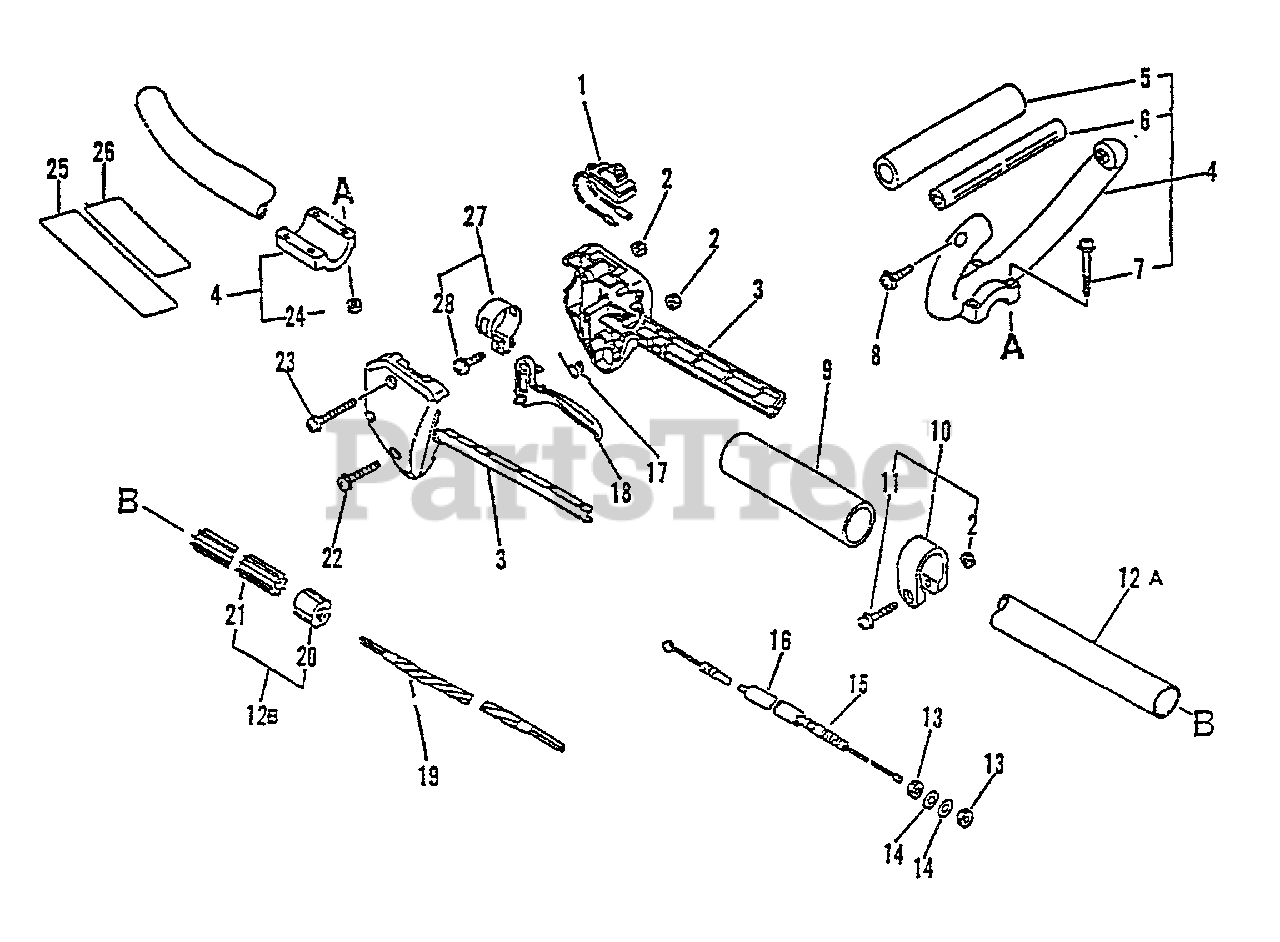

Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

  • Title
1

Echo 16340046830

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$8.99

$

In Stock, Qty 7

0

2

$0.99

$

In Stock, Qty 20+

0

3

Echo 17800352130

CONTROL HANDLE KIT

Note: INCLUDES ITEMS 2, 22 & 23

$4.99

$

In Stock, only 1 left!

0

4

Echo 35120151730

LOOP HANDLE ASSY
(Superseded to P021012410)

Note: INCLUDES ITEMS 5 - 8 & 24

$12.99

$

Usually ships in 2-4 days

0

5

Echo 35121351730

GRIP, HANDLE

$8.49

$

In Stock, Qty 6

0

6

$4.49

$

Usually ships in 2-4 days

0

7

Echo 90024206035

SCREW - 6X35

$1.49

$

Usually ships in 2-4 days

0

8

Echo 90024605030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

9

Echo 35121352130

GRIP, HANDLE

$9.49

$

In Stock, only 2 left!

0

10

Echo 61027252130

CLAMP KIT

Note: INCLUDES ITEMS 2 & 11

$9.99

$

In Stock, only 1 left!

0

11

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

12

Echo 61020652630

MAIN PIPE ASSY

$39.99

$

Usually ships in 2-4 days

0

12A

Echo 61020652630

MAIN PIPE ASSY

Note: Use HOUSING ASY in Ref No. 12

$39.99

$

Usually ships in 2-4 days

0

13

$0.99

$

In Stock, only 1 left!

0

14

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

15

Echo 17800144430

CABLE, THROTTLE

$10.99

$

In Stock, only 1 left!

0

16

Echo 17812752130

TUBE
(Superseded to 17812750330)

$1.49

$

In Stock, Qty 5

0

17

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

18

Echo 17801053030

TRIGGER, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

19

Echo 61001344730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000390)

$16.99

$

In Stock, only 2 left!

0

20

$1.49

$

In Stock, Qty 20+

0

21

Echo C507000260

LINER - FLEXIBLE

$25.99

$

Usually ships in 2-4 days

0

22

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

23

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

24

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

25

Echo 89016054630

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

26

Echo 89017854630

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

27

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: INCLUDES ITEMS 28

$9.49

$

In Stock, only 1 left!

0

28

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0
