LHE-2475 - Lesco Edger (SN: 001001 - 002703) Carburetor Parts Diagram

Edger

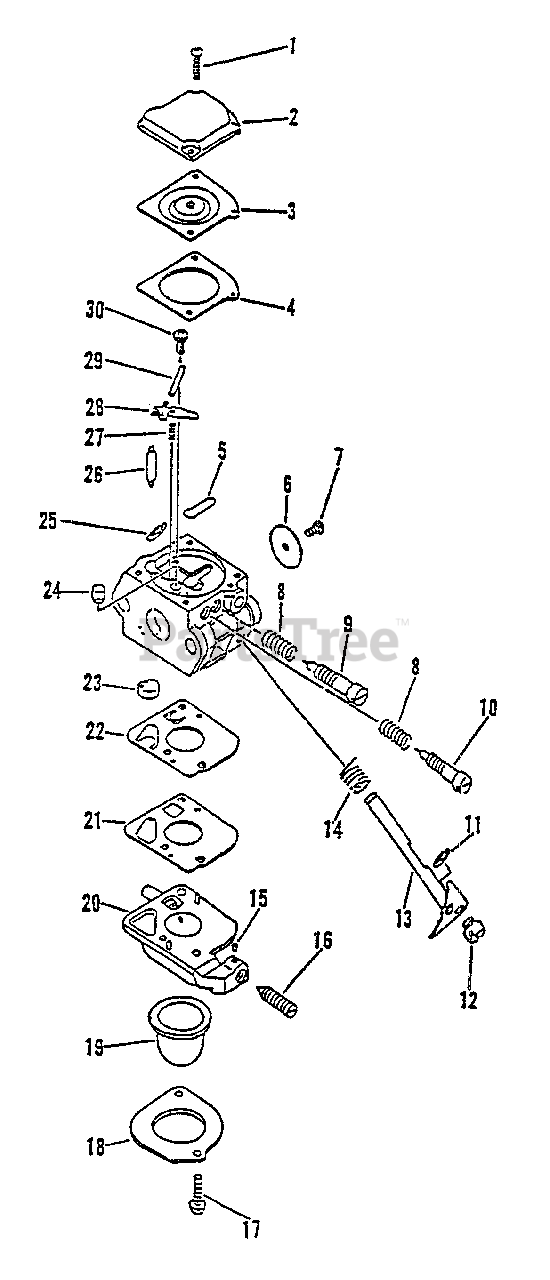

Carburetor Parts Diagram

  • Title

Echo 12520052131

CARBURETOR C1U-K23A
(Superseded to 12520013313)

Note: INCLUDES 1- 30

$78.99

$

In Stock, Qty 20+

0

1

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

2

Echo 12534252130

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM

Note: Included in Rebuild Kit P/N 12530051330 & Gasket/Diaphragm Kit P/N 12530351030

$

$

Not available

4

------------------

GASKET, METERING

Note: Included in Rebuild Kit P/N 12530051330 & Gasket/Diaphragm Kit P/N 12530351030

$

$

Not available

5

------------------

PLUG, WELCH

Note: Included in Rebuild Kit P/N 12530051330

$

$

Not available

6

Echo 12531642030

VALVE, THROTTLE

$2.49

$

In Stock, only 1 left!

0

7

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

8

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

9

Echo 12532051230

NEEDLE - HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

10

Echo 12531851030

NEEDLE - LOW SPEED
(Superseded to Discontinued)

$

$

Not available

11

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

12

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

13

Echo 12531742030

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

14

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

15

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

16

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

17

Echo 12531011610

SCREW, RETAINER

$1.49

$

In Stock, Qty 13

0

18

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 8

0

19

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

20

Echo 12532411610

BASE, PURGE

$21.99

$

In Stock, only 1 left!

0

21

------------------

GASKET, PURGE

Note: Included in Rebuild Kit P/N 12530051330 & Gasket/Diaphragm Kit P/N 12530351030

$

$

Not available

22

------------------

DIAPHRAGM, PURGE

Note: Included in Rebuild Kit P/N 12530051330 & Gasket/Diaphragm Kit P/N 12530351030

$

$

Not available

23

------------------

STRAINER

Note: Included in Rebuild Kit P/N 12530051330

$

$

Not available

24

Echo 12537651030

NOZZLE, CHECK VALVE

$5.99

$

In Stock, only 1 left!

0

25

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

26

------------------

VALVE, NEEDLE

Note: Included in Rebuild Kit P/N 12530051330

$

$

Not available

27

------------------

SPRING

Note: Included in Rebuild Kit P/N 12530051330

$

$

Not available

28

------------------

LEVER, METERING

Note: Included in Rebuild Kit P/N 12530051330

$

$

Not available

29

------------------

PIN

Note: Included in Rebuild Kit P/N 12530051330

$

$

Not available

30

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

Echo 12530051330

REPAIR KIT

$17.99

$

In Stock, only 3 left!

0

Echo 12530351030

DIAPHRAGM/GASKET KIT

$18.99

$

In Stock, Qty 7

0
