LHD-1700 - Lesco Hedge Trimmer (SN: 004338 - 999999) Intake, Exhaust, Air Cleaner Parts Diagram

Hedge Trimmer

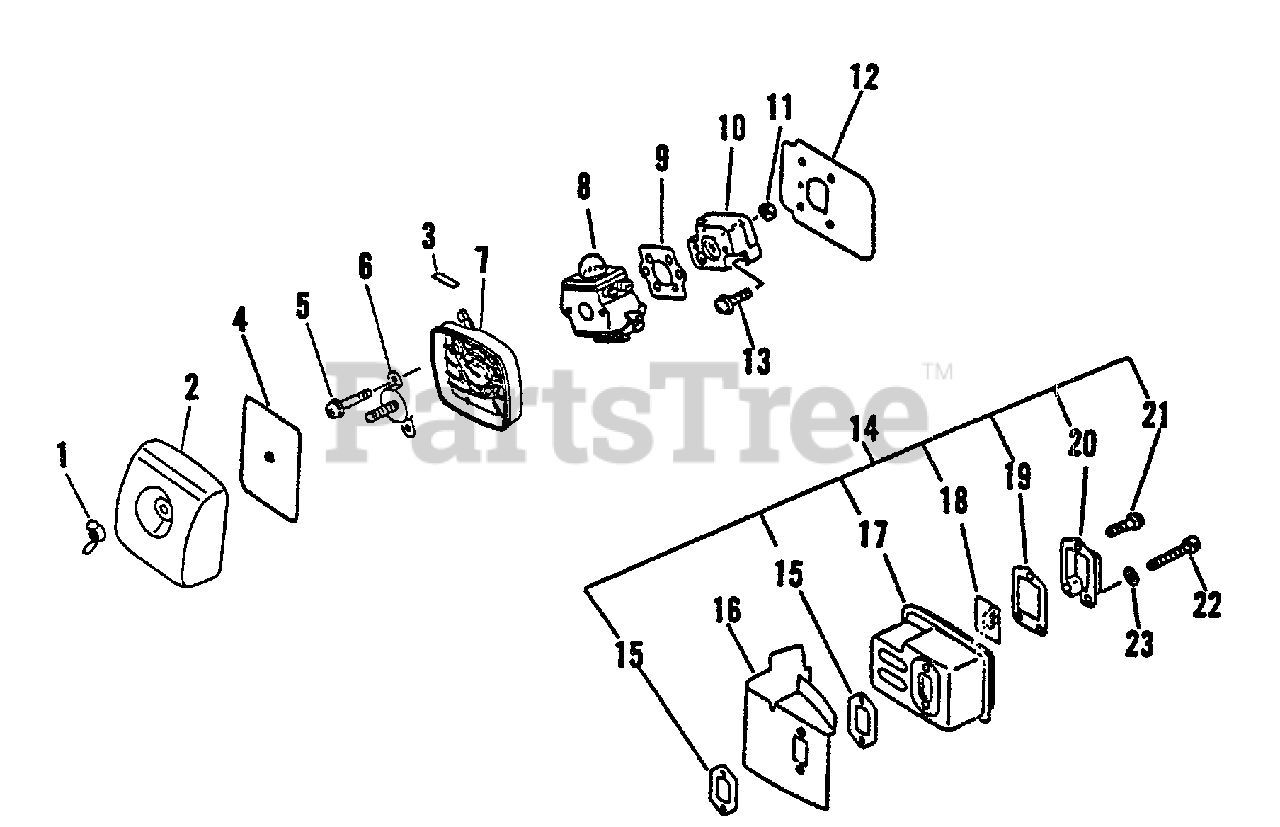

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 90052800005

WINGNUT - 6

$1.49

$

In Stock, Qty 15

0

2

Echo 13031305863

COVER, AIR FILTER - BLACK

$6.49

$

In Stock, Qty 20+

0

3

Echo 89012105360

LABEL - CHOKE

$1.99

$

In Stock, Qty 16

0

4

Echo 13031006560

FILTER, AIR

$3.99

$

In Stock, Qty 9

0

5

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, only 2 left!

0

6

Echo 12901105060

PLATE, PREVENT

$5.99

$

In Stock, Qty 9

0

7

Echo 13030706761

AIR FILTER CASE ASSY
(Superseded to 13030706960)

$19.99

$

In Stock, only 4 left!

0

8

Echo 12520011823

CARBURETOR C1U-K27B
(Superseded to 12520012820)

$92.99

$

In Stock, Qty 7

0

9

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

10

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

11

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, only 1 left!

0

13

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

14

Echo 14580005361

MUFFLER ASSY

Note: Includes ITEMS 17 - 21

$72.99

$

Usually ships in 2-4 days

0

15

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

16

Echo 14587105360

SHIELD, EXHAUST

$9.99

$

Usually ships in 2-4 days

0

17

Echo 14581011520

MUFFLER

$53.99

$

Usually ships in 2-4 days

0

18

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

19

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

20

Echo 14580942030

GUIDE, EXHAUST - OUTER

$7.49

$

In Stock, only 1 left!

0

21

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

22

Echo 90010505050

SCREW - 5X50

$1.49

$

In Stock, only 3 left!

0

23

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0
