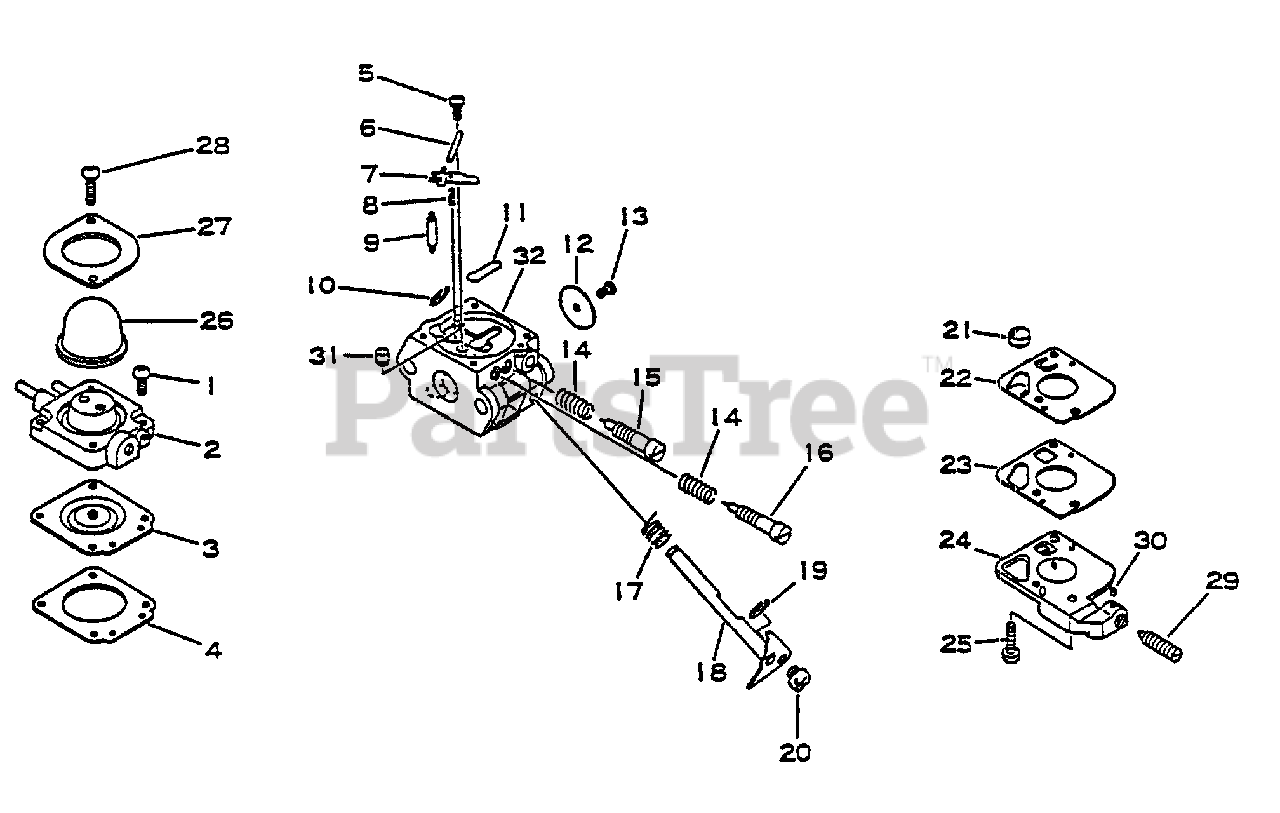

LHD-1700 - Lesco Hedge Trimmer (SN: 004338 - 999999) Carburetor Parts Diagram

Hedge Trimmer

Carburetor Parts Diagram

  • Title

Echo 12520011823

CARBURETOR C1U-K27B
(Superseded to 12520012820)

$92.99

$

In Stock, Qty 7

0

1

Echo 12531005360

SCREW, PURGE BASE

$0.99

$

In Stock, Qty 8

0

2

Echo 12538305360

BASE, PURGE

$21.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM

Note: Included in Gasket/Diaphragm Kit P/N 12530305360 & Gasket Kit P/N 12530005360

$

$

Not available

4

------------------

GASKET, METERING

Note: Included in Gasket/Diaphragm Kit P/N 12530305360 & Gasket Kit P/N 12530005360

$

$

Not available

5

------------------

SCREW

Note: Included in Gasket Kit P/N 12530005360

$

$

Not available

6

------------------

PIN

Note: Included in Gasket Kit P/N 12530005360

$

$

Not available

7

------------------

LEVER, METERING

Note: Included in Gasket Kit P/N 12530005360

$

$

Not available

8

------------------

SPRING

Note: Included in Gasket Kit P/N 12530005360

$

$

Not available

9

------------------

VALVE, NEEDLE

Note: Included in Gasket Kit P/N 12530005360

$

$

Not available

10

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

11

------------------

PLUG, WELCH

Note: Included in Gasket Kit P/N 12530005360

$

$

Not available

12

Echo 12531642030

VALVE, THROTTLE

$2.49

$

In Stock, only 1 left!

0

13

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

15

Echo 12531851330

NEEDLE - MIXTURE
(Superseded to Discontinued)

$

$

Not available

16

Echo 12532042030

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

17

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

18

Echo 12531711820

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

19

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

20

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

21

------------------

STRAINER

Note: Included in Gasket Kit P/N 12530005360

$

$

Not available

22

------------------

DIAPHRAGM, PURGE

Note: Included in Gasket/Diaphragm Kit P/N 12530305360 & Gasket Kit P/N 12530005360

$

$

Not available

23

------------------

GASKET, PURGE

Note: Included in Gasket/Diaphragm Kit P/N 12530305360 & Gasket Kit P/N 12530005360

$

$

Not available

24

Echo 12532442030

BASE, PURGE

$7.99

$

Usually ships in 2-4 days

0

25

Echo 12531042030

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

26

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

27

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 6

0

28

Echo P005000980

SCREW, RETAINER

$0.99

$

In Stock, Qty 20+

0

29

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

30

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

31

Echo 12537642030

NOZZLE, CHECK VALVE

$4.99

$

In Stock, only 1 left!

0

32

------------------

UNKNOWN

$

$

Not available

Echo 12530305360

DIAPHRAGM/GASKET KIT
(Superseded to 12530306560)

$9.49

$

In Stock, only 1 left!

0

Echo 12530005360

REPAIR KIT
(Superseded to 12530006560)

$18.99

$

In Stock, only 1 left!

0

Echo 88900005362

GASKET KIT
(Superseded to 88900006560)

$12.99

$

Usually ships in 2-4 days

0

------------------

GASKET, CRANKCASE

Note: Included in Gasket/Diaphragm Kit P/N 12530305360

$

$

Not available

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

$3.99

$

In Stock, only 4 left!

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 15

0

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

Echo 61041404560

GASKET, GEAR CASE

$1.49

$

In Stock, only 3 left!

0
