LHD-1700 - Lesco Hedge Trimmer (SN: 002838 - 004337) Handles, Ignition Switch, Throttle Parts Diagram

Hedge Trimmer

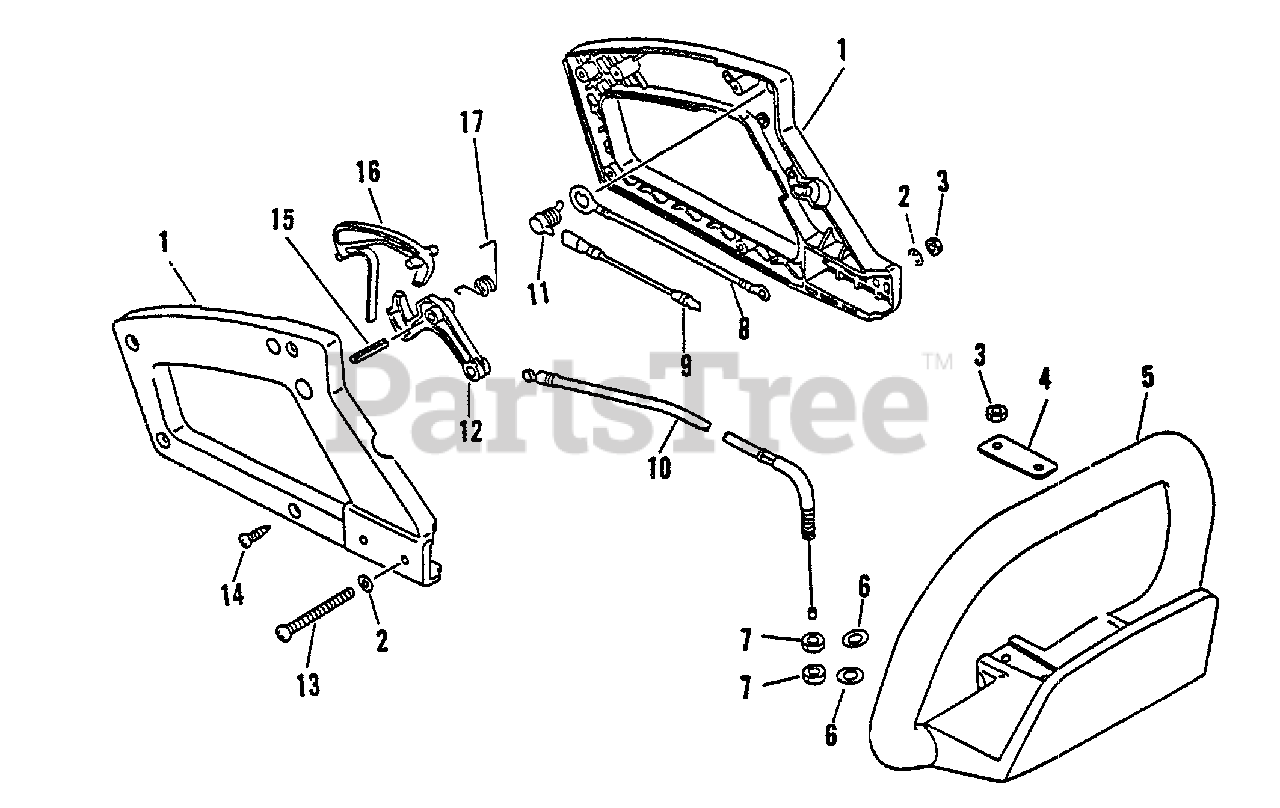

Handles, Ignition Switch, Throttle Parts Diagram

  • Title

1

Echo 35110006560

HANDLE ASSY - REAR
(Superseded to 35110006561)

$34.99

$

In Stock, Qty 12

0

2

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

4

Echo 35161105360

PLATE

$7.49

$

In Stock, only 1 left!

0

5

Echo 35161005360

HANDLE - FRONT

$40.99

$

Usually ships in 2-4 days

0

6

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

7

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 8

0

8

Echo 16201005360

LEAD - GROUND

$2.99

$

Usually ships in 2-4 days

0

9

Echo 16201405360

LEAD - GROUND

$3.99

$

Usually ships in 2-4 days

0

10

Echo 17800105360

CABLE, THROTTLE

$21.99

$

In Stock, only 3 left!

0

11

Echo 16340003460

IGNITION SWITCH ASSY

$8.49

$

In Stock, only 3 left!

0

12

Echo 17801005860

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

13

Echo 90022005050

SCREW - 5X55

$0.99

$

Usually ships in 2-4 days

0

14

Echo 90025504016

SCREW - 4X16

$0.99

$

In Stock, Qty 5

0

15

Echo 90034250025

PIN - SPRING -- 5X25

$1.49

$

In Stock, Qty 10

0

16

Echo 17809005860

LOCKOUT, THROTTLE

$9.99

$

Usually ships in 2-4 days

0

17

Echo 17804315130

SPRING, TRIGGER

$2.49

$

In Stock, Qty 9

0
