LHD-1700 - Lesco Hedge Trimmer (SN: 002838 - 004337) Fuel System Parts Diagram

Hedge Trimmer

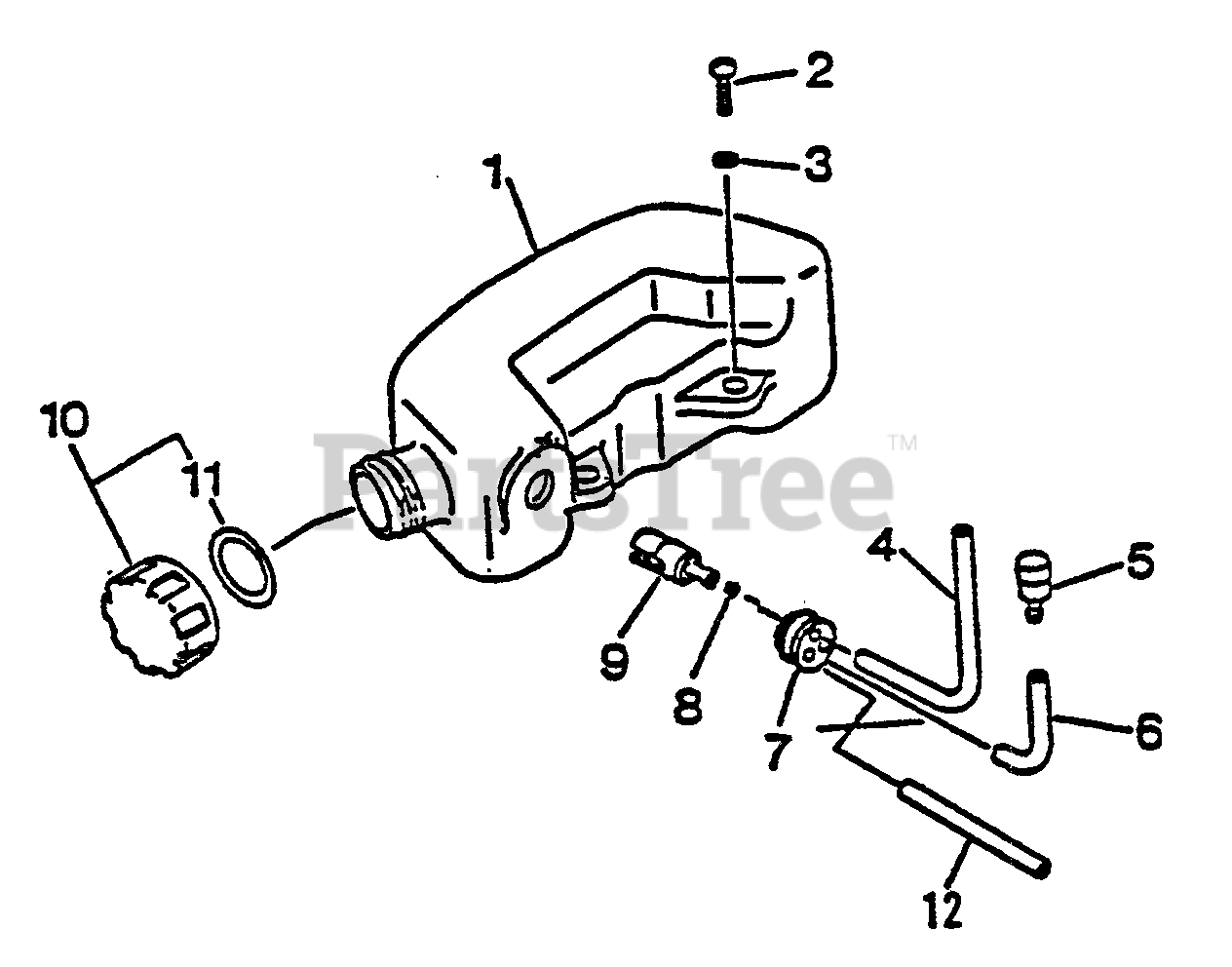

Fuel System Parts Diagram

  • Title
1

Echo 13100505360

TANK, FUEL
(Superseded to 13100505361)

$18.99

$

In Stock, Qty 6

0

2

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

3

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 13201007530

PIPE - 3X5X195 -- BLACK
(Superseded to 13201007531)

Note: RePower BULK OPTION: 90014

$9.99

$

In Stock, only 1 left!

0

5

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 10

0

6

Echo 13271750430

PIPE - 3X6X70 -- CLEAR

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 20+

0

7

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

8

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

9

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

10

Echo 13100440930

CAP ASSY
(Superseded to 13100441030)

Note: Includes ITEM 11

$7.49

$

In Stock, only 4 left!

0

11

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 19

0

12

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 16

0
