LHD-1700 - Lesco Hedge Trimmer (SN: 002838 - 004337) Clutch, Ignition, Starter Parts Diagram

Hedge Trimmer

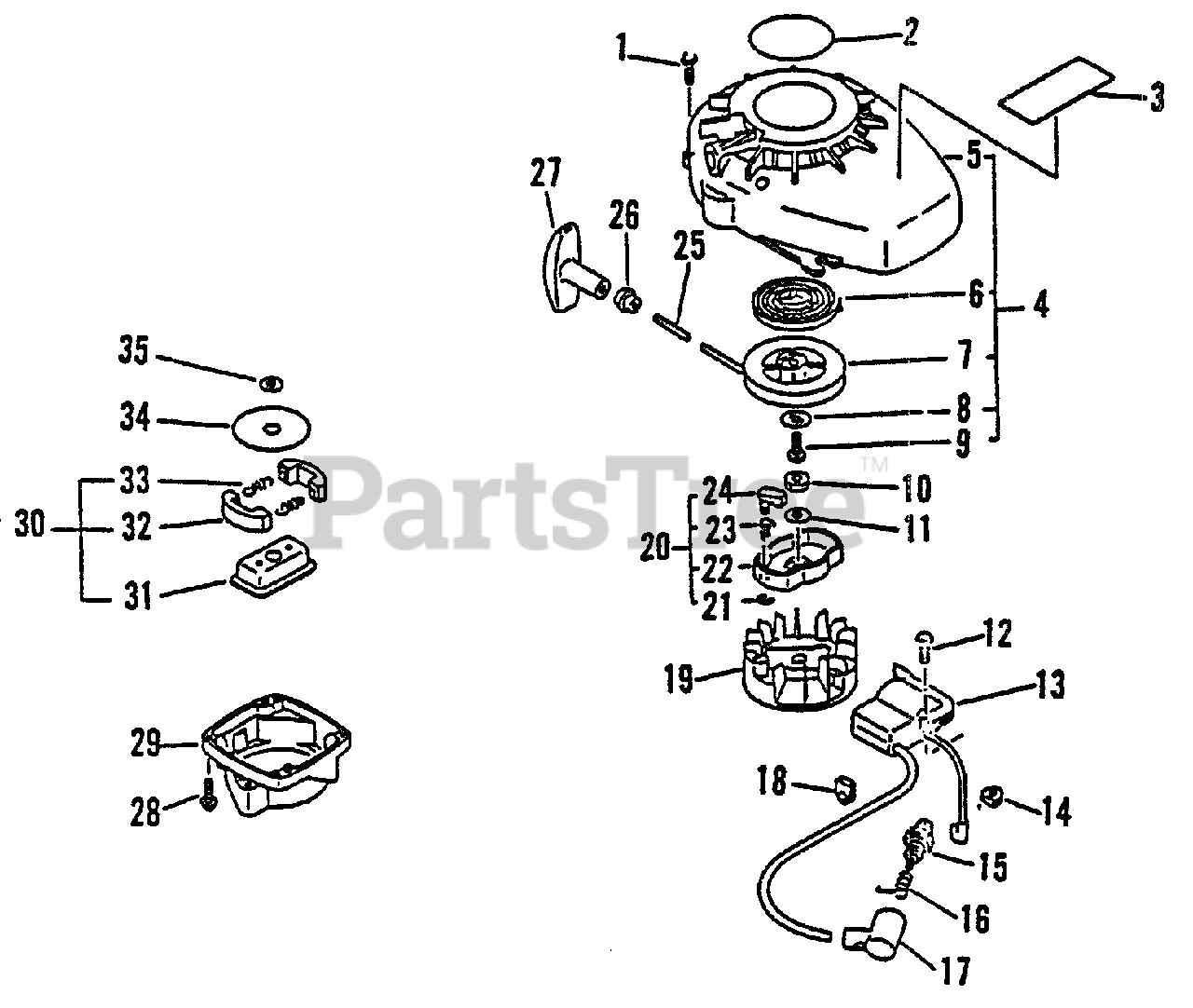

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

2

Echo 89011507960

LABEL - LESCO

$6.49

$

Usually ships in 2-4 days

0

3

Echo 89011207860

LABEL - MODEL LHD-1700
(Superseded to Discontinued)

$

$

Not available

4

Echo 17720007860

STARTER ASSY
(Superseded to 17720007862)

Note: Includes Items 5 - 9, 25 - 27

$90.99

$

Usually ships in 2-4 days

0

5

Echo 10151105360

CASE, STARTER
(Superseded to 10151105362)

$37.99

$

Usually ships in 2-4 days

0

6

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 7

0

7

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$8.99

$

In Stock, Qty 16

0

8

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

9

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

10

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

11

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

12

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

13

Echo 15062611521

COIL, IGNITION
(Superseded to 15662611820)

$

$

Not available

14

Echo 15611404920

GROMMET

$0.99

$

In Stock, only 4 left!

0

15

Echo 15901012330

SPARK PLUG -- BPM-6A
(Superseded to Discontinued)

$

$

Not available

16

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

17

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

18

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 6

0

19

Echo 15080144330

FLYWHEEL
(Superseded to 15680144330)

$113.99

$

Usually ships in 2-4 days

0

20

Echo 17720242030

STARTER PAWL ASSY
(Superseded to 17720244330)

Note: Includes Items 21 - 24

$16.99

$

In Stock, Qty 18

0

21

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

22

Echo 17721042030

CATCHER, PAWL
(Superseded to 17720244330)

$16.99

$

In Stock, Qty 18

0

23

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

24

Echo 17721842030

PAWL, STARTER

$3.49

$

Usually ships in 2-4 days

0

25

------------------

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$

$

Not available

26

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

27

Echo 17722811520

GRIP, STARTER
(Superseded to 17722806530)

$4.99

$

In Stock, Qty 20+

0

28

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

29

Echo 17505505360

CASE, CLUTCH

$48.99

$

Usually ships in 2-4 days

0

30

Echo 17500006531

CLUTCH ASSY
(Superseded to 17500006560)

Note: Includes Items 31 - 33

$28.99

$

In Stock, Qty 9

0

31

Echo 17501604920

HUB, CLUTCH

$12.99

$

In Stock, only 1 left!

0

32

Echo 17501704631

SHOE, CLUTCH

$21.99

$

In Stock, only 2 left!

0

33

Echo 17501806530

SPRING, CLUTCH

$1.99

$

In Stock, only 1 left!

0

34

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

35

Echo 17501405360

WASHER, CLUTCH

$1.99

$

Usually ships in 2-4 days

0
