LHD-1700 - Lesco Hedge Trimmer (SN: 001001 - 002837) Engine, Crankcase, Cover Parts Diagram

Hedge Trimmer

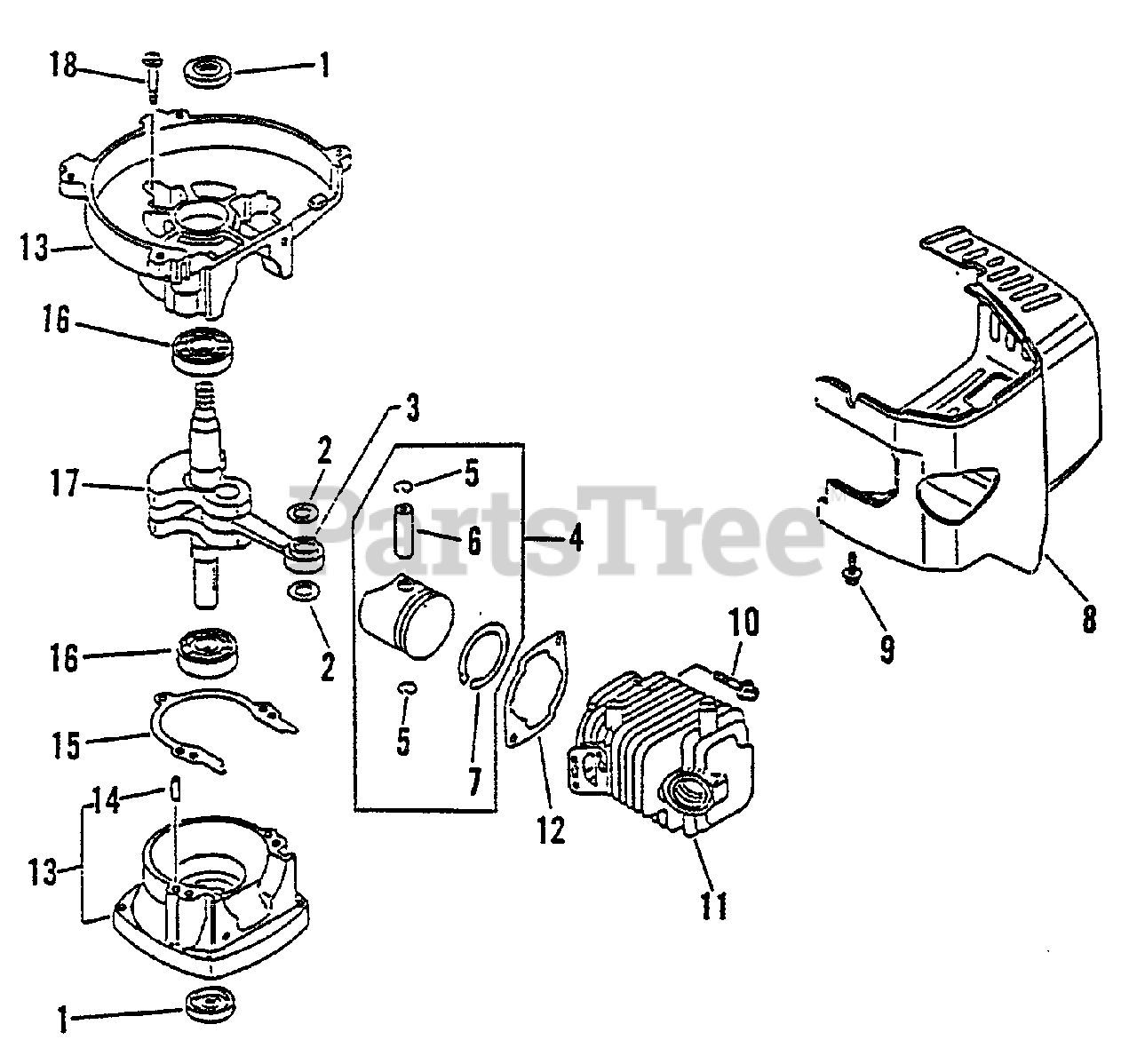

Engine, Crankcase, Cover Parts Diagram

  • Title

1

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

2

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

3

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$9.99

$

In Stock, only 2 left!

0

4

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: Includes Items 5 - 7

$65.99

$

Usually ships in 2-4 days

0

5

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

8

Echo 10150607860

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

9

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

10

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

11

Echo 10101145230

CYLINDER

$127.99

$

Usually ships in 2-4 days

0

12

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

Note: Use Kit P/N 88900005362

$3.99

$

In Stock, only 4 left!

0

13

Echo 10020005360

CRANKCASE KIT
(Superseded to 10020405360)

Note: Includes ITEM 14

$149.99

$

Usually ships in 2-4 days

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

------------------

GASKET, CRANKCASE

Note: Use Kit P/N 88900005362

$

$

Not available

16

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

17

Echo 10010005361

CRANKSHAFT ASSY
(Superseded to 10010005362)

Note: Includes ITEM 3

$

$

Not available

18

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

Echo SB1003

SHORT BLOCK -- SB1003
(Superseded to SB1031)

$

$

Not available

Echo 88900005362

GASKET KIT
(Superseded to 88900006560)

$12.99

$

Usually ships in 2-4 days

0
