LH775-0017 - Kohler Aegis Engine, Made for MTD, 31hp, 23.1kW 05 Ignition/Charging Parts Diagram

Aegis Engine, Made for MTD, 31hp, 23.1kW

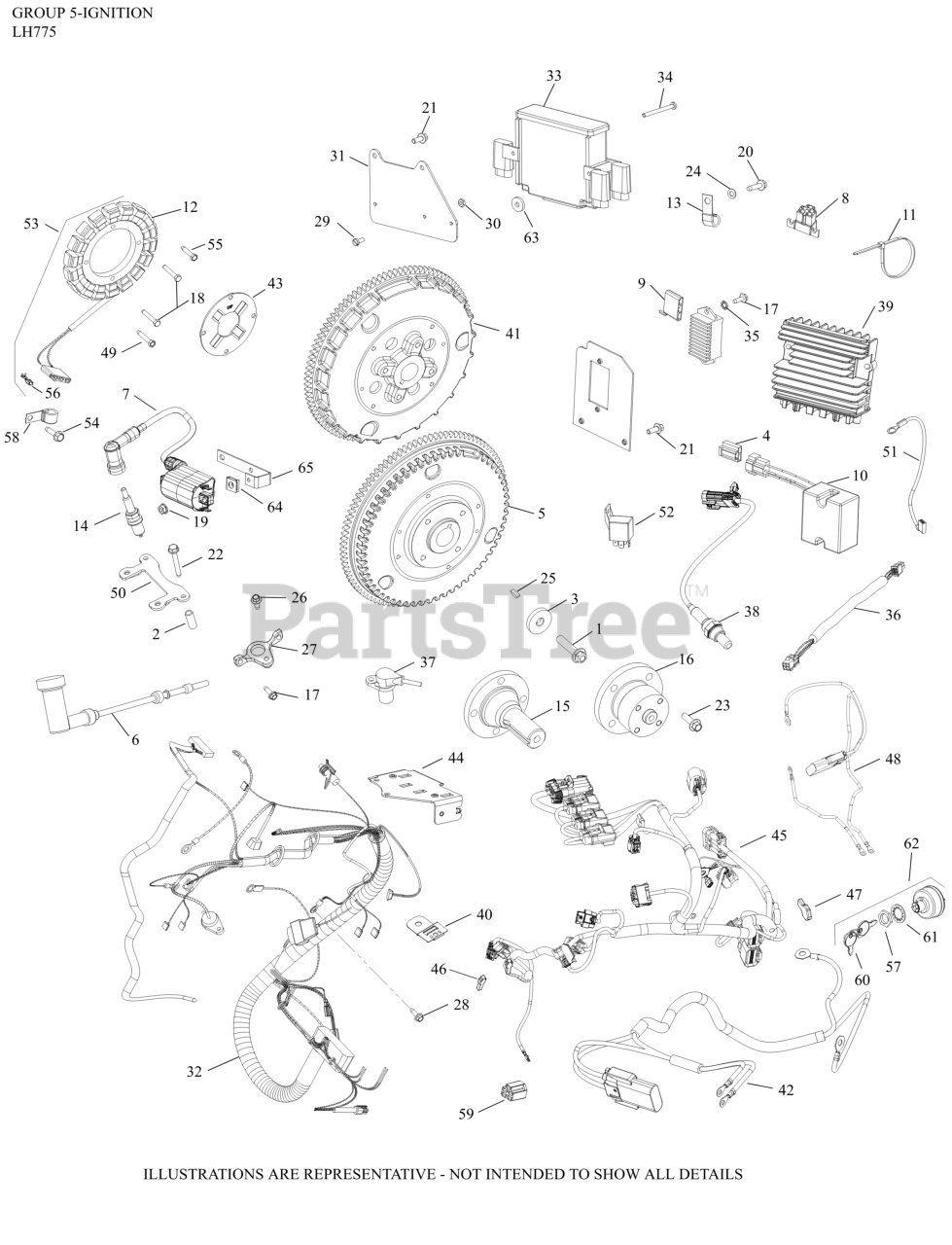

05 Ignition/Charging Parts Diagram

  • Title

1

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45-USE 25 086 361-S
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

2

Kohler 12 112 18-S

SPACER

$

$

Not available

3

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

5

Kohler 24 025 23-S

KIT, FLYWHEEL ASSEMBLY

$283.99

$

Usually ships in 2-5 days

0

6

Kohler 24 131 02-S

BOOT, SPARK PLUG

$57.99

$

Usually ships in 2-5 days

0

7

Kohler 24 519 02-S

COIL, IGNITION

$180.99

$

In Stock, only 1 left!

0

11

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 66 132 01-S

SPARK PLUG

$8.99

$

Usually ships in 2-5 days

0

15

Kohler 66 144 04-S

SHAFT, FRONT DRIVE

$

$

Not available

20

Kohler 25 086 396-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

21

Kohler M-651016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0

22

Kohler M-670045-S

SCREW, THRD FRM M6X1.0X45

$6.49

$

Usually ships in 2-5 days

0

23

Kohler M-839025-S

SCREW, FLG M8X1.25X25

$2.49

$

Usually ships in 2-5 days

0

24

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

25

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

27

Kohler 24 126 131-S

BRACKET, SPEED SENSOR

$10.99

$

Usually ships in 2-5 days

0

28

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

30

Kohler 25 100 18-S

NUT, MACH SCREW #10-32 GRD 2

$3.49

$

Usually ships in 2-5 days

0

32

Kohler 66 176 23-S

HARNESS ASSEMBLY

$695.99

$

Usually ships in 2-5 days

0

33

Kohler 66 584 12-S

MODULE, ENGINE MANAGEMENT (ECU)

$

$

Not available

35

Kohler X-22-9-S

WASHER, INT TOOTH LOCK #10

$3.99

$

In Stock, only 1 left!

0

37

Kohler 24 418 03-S

KIT, SPEED PICK-UP SENSOR

$201.99

$

Usually ships in 2-5 days

0

38

Kohler 24 418 05-S

SENSOR, OXYGEN

$191.99

$

Usually ships in 2-5 days

0

52

Kohler 20 404 01-S

RELAY

$43.99

$

In Stock, only 1 left!

0

54

Kohler 25 086 395-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

64

Kohler 25 154 37-S

CLIP, BAFFLE MOUNTING

$2.49

$

In Stock, Qty 12

0

65

Kohler 66 126 63-S

BRACKET, IGNITION COIL (EFI)

$49.99

$

Usually ships in 2-5 days

0
