LH690-3015 - Kohler Aegis Engine, Made for CPD, 26hp, 19.4kW Cylinder Head/Breather Group 4-66-28 Parts Diagram

Aegis Engine, Made for CPD, 26hp, 19.4kW

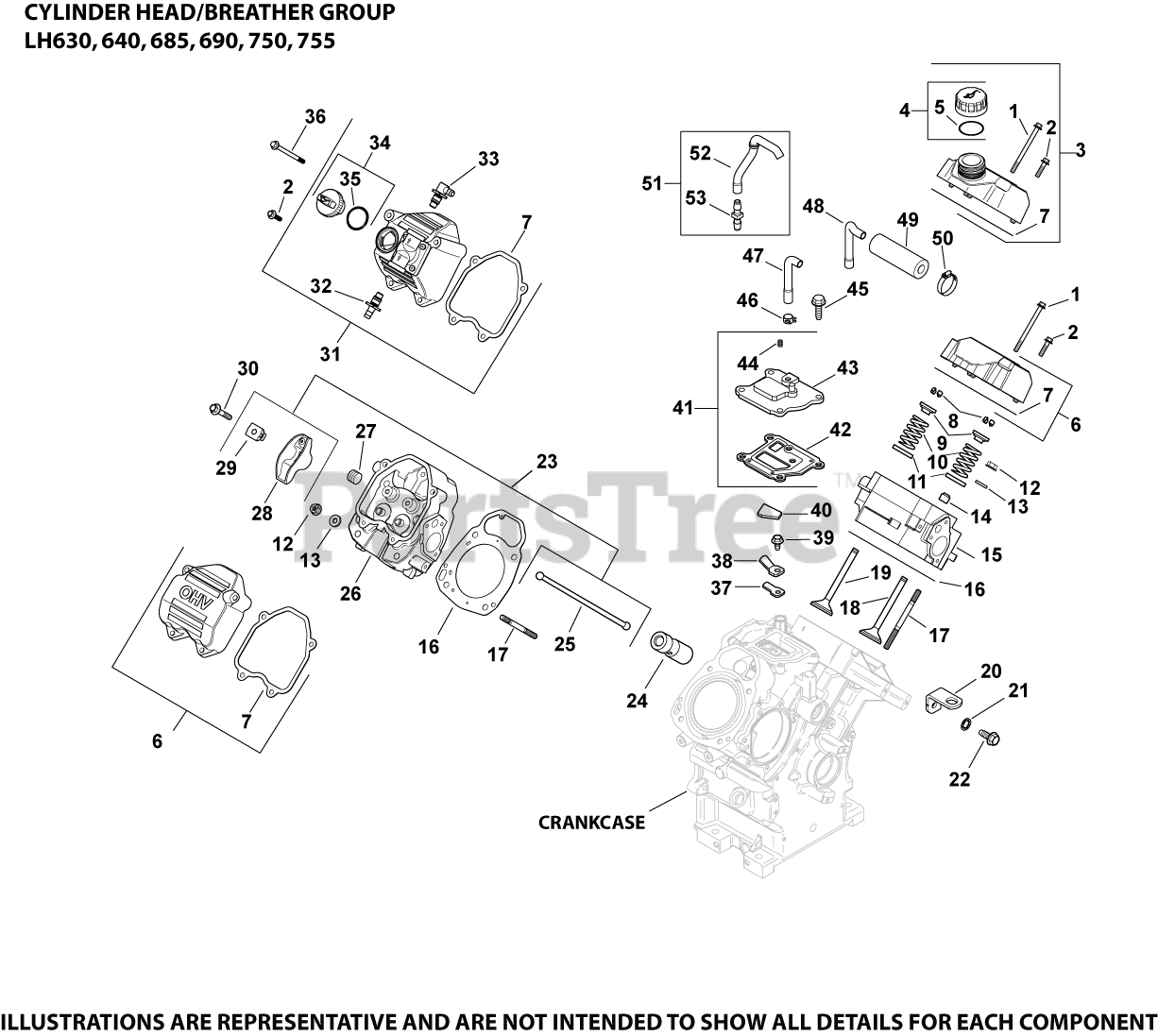

Cylinder Head/Breather Group 4-66-28 Parts Diagram

  • Title

1

Kohler M-651080-S

SCREW, FLG M6X1.0X80

$2.99

$

Usually ships in 2-5 days

0

2

Kohler 25 086 124-S

SCREW, FLG M6X1.0X25

$2.49

$

In Stock, only 3 left!

0

6

Kohler 66 096 11-S

KIT, ROCKER COVER

$36.99

$

In Stock, only 1 left!

0

7

Kohler 66 041 09-S

GASKET, VALVE COVER

$6.49

$

In Stock, Qty 7

0

8

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 8

0

9

Kohler 25 173 28-S

CAP, VALVE SPRING

$8.49

$

In Stock, only 3 left!

0

10

Kohler 24 089 02-S

SPRING, VALVE

$7.99

$

In Stock, only 4 left!

0

11

Kohler 235011-S

RETAINER, SPRING

$6.49

$

In Stock, only 1 left!

0

12

Kohler 24 100 10-S

NUT, FLG M8X1.25

$4.49

$

Usually ships in 2-5 days

0

13

Kohler 220534-S

WASHER, FLAT 5/16"

$5.49

$

In Stock, Qty 5

0

14

Kohler 66 032 05-S

SEAL, VALVE STEM - (#2503214S)
(Superseded to 25 032 14-S)

$11.99

$

In Stock, Qty 20+

0

15

Kohler 66 318 01-S

KIT,CYLINDER HEAD #1

$411.99

$

Usually ships in 2-5 days

0

16

Kohler 66 841 02-S

KIT, CYLINDER HEAD GASKET

$47.99

$

In Stock, only 4 left!

0

17

Kohler 66 072 03-S

STUD

$9.49

$

Usually ships in 2-5 days

0

18

Kohler 24 017 01-S

VALVE, INTAKE (STD)

$30.99

$

In Stock, Qty 15

0

18

Kohler 24 017 02-S

VALVE, INTAKE (.25)

$

$

Not available

19

Kohler 24 016 01-S

VALVE, EXHAUST (STD) - USE 32 016 01-S
(Superseded to 32 016 01-S)

$15.99

$

In Stock, Qty 14

0

19

Kohler 24 016 02-S

VALVE, EXHAUST (.25)
(Superseded to 32 016 02-S)

$15.99

$

In Stock, only 3 left!

0

23

Kohler 24 755 66-S

KIT, VALVE TRAIN

$45.99

$

In Stock, Qty 5

0

24

Kohler 25 351 10-S

LIFTER, VALVE HYDRAULIC - (#2535111S)
(Superseded to 25 351 11-S)

$23.99

$

In Stock, Qty 9

0

25

Kohler 24 411 05-S

ROD, PUSH

$5.49

$

In Stock, Qty 5

0

26

Kohler 66 318 02-S

KIT,CYLINDER HEAD #2

$

$

Not available

27

Kohler 66 139 01-S

PLUG, PIPE

$7.99

$

Usually ships in 2-5 days

0

28

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 1 left!

0

29

Kohler 24 599 02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 8

0

30

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 18

0

31

Kohler 66 559 02-S

KIT, FUEL PUMP/ROCKER COVER

$193.99

$

Usually ships in 2-5 days

0

32

Kohler 25 294 09-S

KIT, STRAIGHT FITTING

$6.49

$

In Stock, only 1 left!

0

33

Kohler 25 294 11-S

KIT, 90 DEG. FITTING

$11.99

$

In Stock, only 2 left!

0

34

Kohler 24 227 02-S

CAP ASSY, OIL FILL (YELLOW)

$7.99

$

In Stock, Qty 6

0

35

Kohler 24 153 09-S

O-RING-USE 24 153 32-S
(Superseded to 24 153 32-S)

$2.49

$

In Stock, only 4 left!

0

36

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$2.49

$

In Stock, Qty 20+

0

37

Kohler 24 402 03-S

REED, BREATHER
(Superseded to 24 402 06-S)

$3.49

$

In Stock, only 1 left!

0

38

Kohler 66 018 04-S

RETAINER, REED

$4.99

$

In Stock, only 4 left!

0

39

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 3 left!

0

40

Kohler 24 050 11-S

FILTER, BREATHER

$2.49

$

Usually ships in 2-5 days

0

41

Kohler 24 033 01-S

KIT, BREATHER ASSEMBLY

$31.99

$

In Stock, only 1 left!

0

42

Kohler 24 041 67-S

GASKET, BREATHER

$13.99

$

In Stock, Qty 20+

0

43

Kohler 24 096 86-S

COVER, BREATHER -USE 24 033 01-S
(Superseded to 24 033 01-S)

$31.99

$

In Stock, only 1 left!

0

44

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

45

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

46

Kohler 25 237 08-S

CLAMP, BAND SPRING HOSE-(#2523737S)
(Superseded to 25 237 37-S)

$2.49

$

In Stock, Qty 11

0

47

Kohler 24 326 91-S

HOSE, BREATHER

$6.99

$

Usually ships in 2-5 days

0

50

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0
