LH690-3015 - Kohler Aegis Engine, Made for CPD, 26hp, 19.4kW Crankcase Group 2-66-37 Parts Diagram

Aegis Engine, Made for CPD, 26hp, 19.4kW

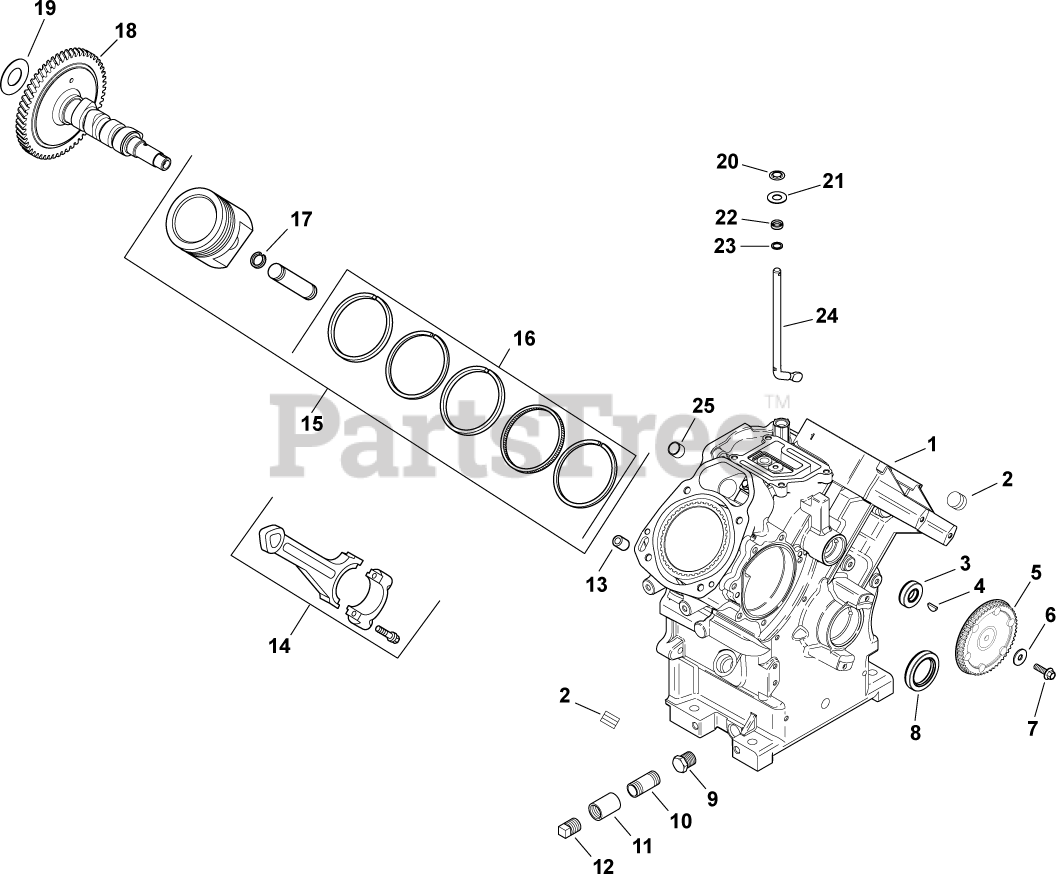

Crankcase Group 2-66-37 Parts Diagram

  • Title

1

CRANKCASE ( USE SHORT BLOCK)

$

$

Not available

2

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

3

Kohler 66 032 07-S

SEAL, CAMSHAFT

$

$

Not available

4

Kohler X-42-2-S

KEY, 3/32" X 3/8"

$3.99

$

In Stock, only 1 left!

0

5

Kohler 66 093 01-S

SPROCKET, CAMSHAFT

$34.99

$

In Stock, only 1 left!

0

6

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

7

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, Qty 6

0

8

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

9

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

13

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

14

Kohler 24 067 30-S

ROD ASSY,CONNECTING USE 24 067 34-S
(Superseded to 25 067 04-S)

$59.99

$

In Stock, only 4 left!

0

15

Kohler 24 874 42-S

PISTON W.RINGS, STYLE A STD
(Superseded to 24 874 54-S)

$250.99

$

In Stock, only 3 left!

0

2487443-S

Kohler 24 874 43-S

PISTON W/RINGS (STYLE A)(.08) - RING SET 24 108 19-S USE 24 874 55-S
(Superseded to 24 874 55-S)

$

$

Not available

2487444-S

Kohler 24 874 44-S

PISTON W/RINGS (STYLE A)(.25) - RING SET 24 108 20-S - USE 24 874 56-S
(Superseded to 24 874 56-S)

$289.99

$

Usually ships in 2-5 days

0

2487445-S

Kohler 24 874 45-S

PISTON W/RINGS (STYLE A)(.50) - RING SET 24 108 21-S

$289.99

$

Usually ships in 2-5 days

0

16

Kohler 24 108 18-S

RING SET (STYLE A)(STD) 1.5MM TOP RING THICKNESS USE PISTON ASSY PER SPEC - Discontinued
(Superseded to 24 108 19-S)

$

$

Not available

17

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

18

Kohler 66 012 01-S

KIT, CAMSHAFT

$247.99

$

Usually ships in 2-5 days

0

19

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

Usually ships in 2-5 days

0

1242208-S

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

1242209-S

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

1242210-S

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, only 1 left!

0

1242211-S

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

1242212-S

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

1242213-S

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

20

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

21

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

22

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 6

0

23

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

24

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

25

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

6643103-S

Kohler 66 431 03-S

SLEEVE

Note: NOT ILLUSTRATED

$5.99

$

Usually ships in 2-5 days

0

6610001-S

Kohler 66 100 01-S

NUT

Note: NOT ILLUSTRATED

$19.99

$

Usually ships in 2-5 days

0
