LH690-0017 - Kohler Aegis Engine, Made for OD&G, 26hp, 19.4kW 02 CrankCase Parts Diagram

Aegis Engine, Made for OD&G, 26hp, 19.4kW

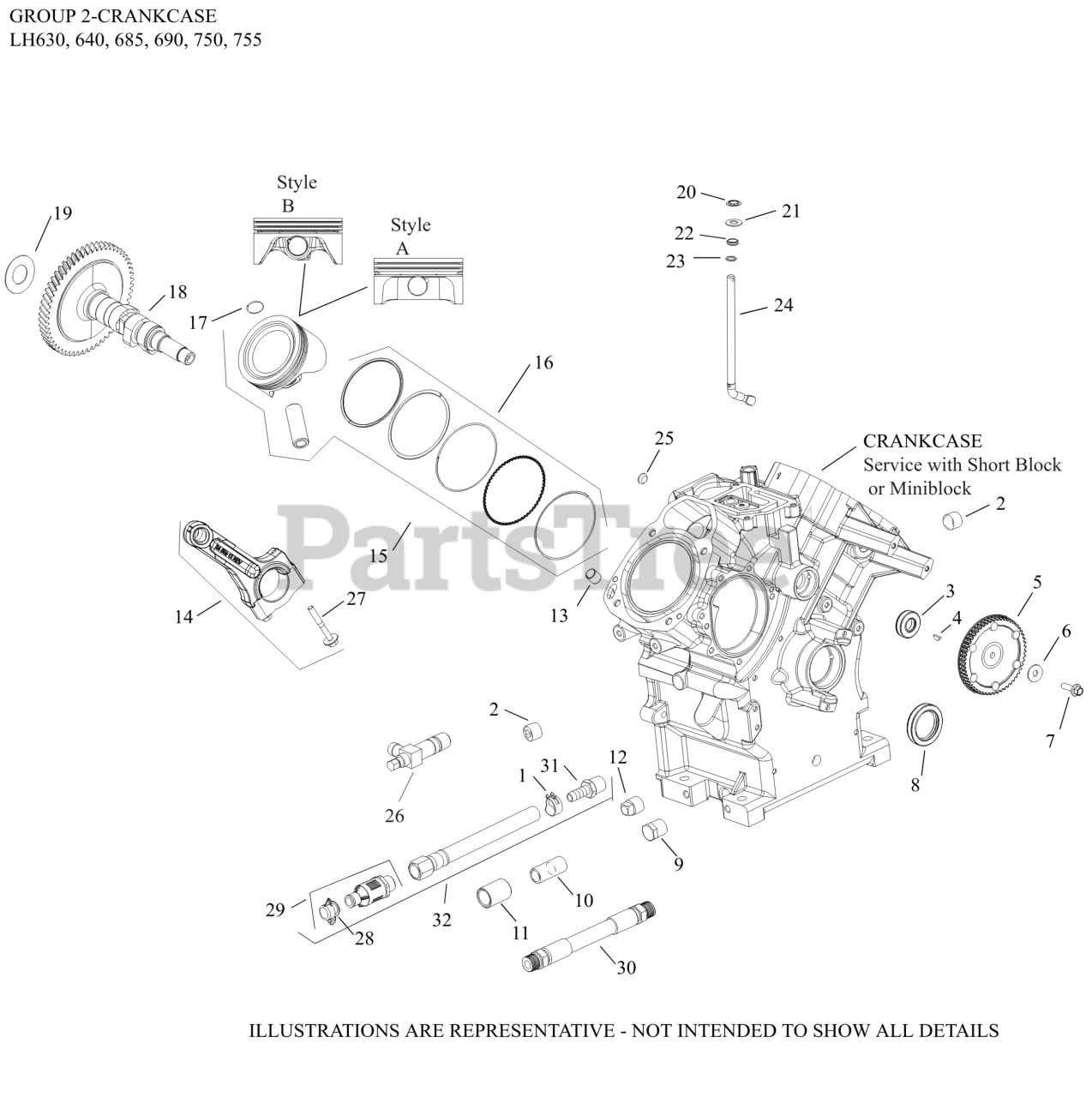

02 CrankCase Parts Diagram

  • Title

2

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

3

Kohler 66 032 07-S

SEAL, CAMSHAFT

$

$

Not available

4

Kohler X-42-2-S

KEY, 3/32" X 3/8"

$3.99

$

In Stock, only 1 left!

0

5

Kohler 66 093 01-S

SPROCKET, CAMSHAFT

$34.99

$

In Stock, only 1 left!

0

6

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

7

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, Qty 6

0

8

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

13

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

14

Kohler 24 067 28-S

ROD, ASSY CON (STD)-USE 24 067 30-S
(Superseded to 25 067 04-S)

$59.99

$

In Stock, Qty 6

0

14

Kohler 24 067 29-S

ROD, ASSY CON(.25mm) -USE 24 067 31-S
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

15

Kohler 24 874 42-S

KIT,PISTON (STD) STYLE A -(#2487454S)
(Superseded to 24 874 54-S)

$250.99

$

In Stock, only 3 left!

0

15

Kohler 24 874 43-S

KIT,PISTON (.08) STYLE A-USE 24 874 55-S
(Superseded to 24 874 55-S)

$

$

Not available

15

Kohler 24 874 44-S

KIT,PISTON (.25) STYLE A - (#2487456S)
(Superseded to 24 874 56-S)

$289.99

$

Usually ships in 2-5 days

0

15

Kohler 24 874 45-S

KIT, PISTON (.50) STYLE A

$289.99

$

Usually ships in 2-5 days

0

15

Kohler 24 874 54-S

KIT, PISTON (STD) STYLE B

$250.99

$

In Stock, only 3 left!

0

15

Kohler 24 874 55-S

KIT, PISTON (.08) STYLE B-(#DSC)

$

$

Not available

15

Kohler 24 874 56-S

KIT, PISTON (.25) STYLE B

$289.99

$

Usually ships in 2-5 days

0

15

Kohler 24 874 57-S

KIT, PISTON (.50) STYLE B

$289.99

$

Usually ships in 2-5 days

0

16

Kohler 24 108 18-S

USE PISTON ASSY PER SPEC - DISC
(Superseded to 24 108 19-S)

$

$

Not available

16

Kohler 24 108 19-S

RING SET (.08) STYLE A - (#DSC)
(Superseded to 24 874 43-S)

$

$

Not available

16

Kohler 24 108 20-S

RING SET (.25) STYLE A - DISC
(Superseded to 24 874 44-S)

$289.99

$

Usually ships in 2-5 days

0

16

Kohler 24 108 21-S

RING SET (.50)STYLE A-(#2410829S)
(Superseded to 24 108 29-S)

$146.99

$

Usually ships in 2-5 days

0

16

Kohler 24 108 26-S

RING SET (STD) STYLE B

$150.99

$

Usually ships in 2-5 days

0

16

Kohler 24 108 27-S

RING SET (.08) STYLE B

$146.99

$

Usually ships in 2-5 days

0

16

Kohler 24 108 28-S

RING SET (.25) STYLE B

$146.99

$

Usually ships in 2-5 days

0

16

Kohler 24 108 29-S

RING SET (.50) STYLE B

$146.99

$

Usually ships in 2-5 days

0

17

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

18

Kohler 66 012 01-S

KIT, CAMSHAFT

$247.99

$

Usually ships in 2-5 days

0

19

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

Usually ships in 2-5 days

0

19

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

19

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

19

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, only 1 left!

0

19

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

19

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

20

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

21

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

22

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 7

0

23

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

24

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

27

Kohler 25 086 452-S

KIT, ROD BOLTS-(#25086677S)
(Superseded to 25 086 677-S)

$2.49

$

In Stock, only 3 left!

0

27

Kohler 25 086 677-S

KIT, ROD BOLTS

$2.49

$

In Stock, only 3 left!

0
