LH690-0002 - Kohler Aegis Engine, Basic Version, 26hp, 19.4kW 09 Engine Controls Parts Diagram

Aegis Engine, Basic Version, 26hp, 19.4kW

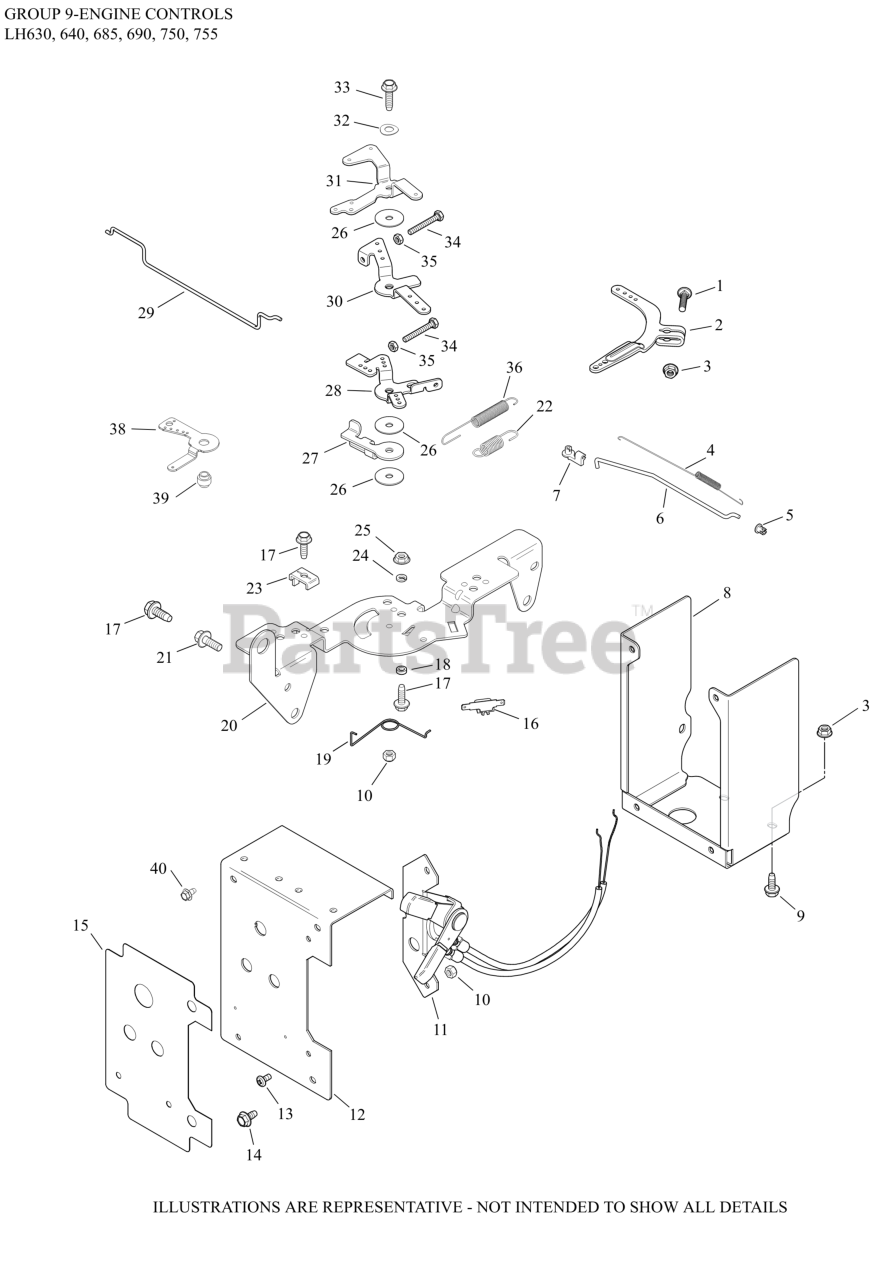

09 Engine Controls Parts Diagram

  • Title

1

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

2

Kohler 24 090 57-S

LEVER, GOVERNOR - (#2409069S)
(Superseded to 24 090 69-S)

$8.99

$

In Stock, only 1 left!

0

3

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 7

0

4

Kohler 24 089 01-S

SPRING, LINKAGE

$6.49

$

In Stock, only 4 left!

0

5

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 19

0

6

Kohler 24 079 01-S

LINKAGE, THROTTLE

$3.99

$

In Stock, Qty 7

0

7

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 13

0

9

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 15

0

10

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 2 left!

0

16

Kohler 25 452 13-S

TERMINAL

$14.99

$

In Stock, only 1 left!

0

17

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

19

Kohler 24 089 03 -S

SPRING, CHOKE RETURN

$

$

Not available

20

Kohler 24 126 263-S

BRACKET, CONTROL

$10.99

$

In Stock, only 1 left!

0

22

Kohler 24 089 46-S

SPRING, GOVERNOR (BLACK)

$8.99

$

In Stock, only 2 left!

0

23

Kohler 12 237 01-S

CLAMP, CABLE-(#2523753S)
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

24

Kohler X-20-1-S

WASHER, SPRING LOCK 1/4"

$3.99

$

In Stock, only 1 left!

0

25

Kohler M-541050-S

NUT, FLG M5X.8

$2.99

$

In Stock, Qty 10

0

26

Kohler 24 468 01-S

WASHER, FLAT 5.5 MM

$2.49

$

In Stock, only 2 left!

0

27

Kohler 24 090 65-S

LEVER, THROTTLE ACTUATOR

$5.49

$

In Stock, only 1 left!

0

28

Kohler 24 090 03-S

LEVER, THROTTLE CONTROL

$13.99

$

In Stock, only 1 left!

0

29

Kohler 24 079 21-S

LINKAGE, CHOKE
(Superseded to 24 079 66-S)

$2.49

$

In Stock, Qty 5

0

31

Kohler 24 090 05-S

LEVER, CHOKE

$5.49

$

In Stock, only 2 left!

0

32

Kohler 41 468 03-S

WASHER, SPRING 1/4"

$3.49

$

In Stock, only 2 left!

0

33

Kohler 25 086 399-S

SCREW, THD FRM-USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

34

Kohler M-401030-S

SCREW, CAP M4X.7X30

$3.49

$

In Stock, Qty 9

0

35

Kohler M-446030-S

NUT, M4X0.7

$2.49

$

In Stock, only 4 left!

0

36

Kohler 24 089 51-S

SPRING, THROTTLE LIMITER

$5.49

$

In Stock, only 1 left!

0

37

Kohler 24 090 69-S

LEVER, GOVERNOR ASSEMBLY

$8.99

$

In Stock, only 1 left!

0
