LH685-3016 - Kohler Aegis Engine, Made for Walker Mfg., 23hp Ignition/Electrical 5-66-19 Parts Diagram

Aegis Engine, Made for Walker Mfg., 23hp

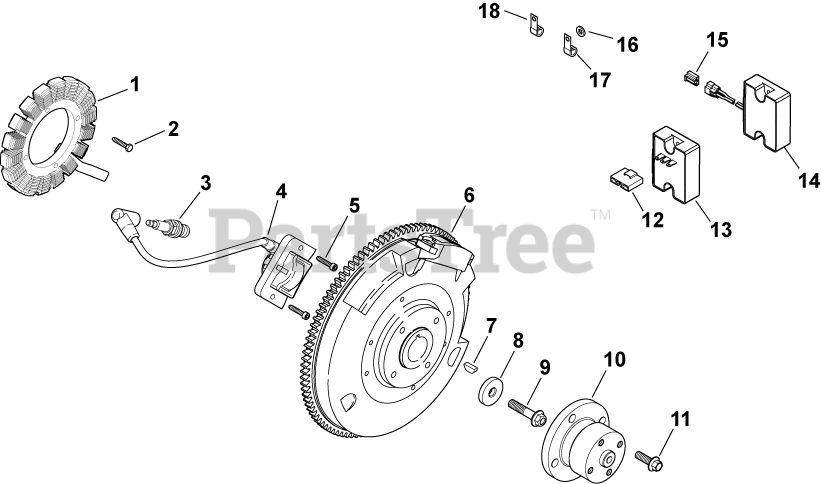

Ignition/Electrical 5-66-19 Parts Diagram

  • Title

1

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

Note: (INCLUDES 2, 12, 25 155 06-S , 25 452 01-S, 25 452 06-S)

$194.99

$

In Stock, only 1 left!

0

2

Kohler 25 086 29-S

SCREW, WSH HD TAP #10-24X1"

$3.99

$

Usually ships in 2-5 days

0

3

Kohler 66 132 01-S

SPARK PLUG

$8.99

$

Usually ships in 2-5 days

0

4

Kohler 28 584 01-S

MODULE, #2 CYLINDER-USE 66 584 09-S
(Superseded to 66 584 09-S)

$64.99

$

In Stock, only 2 left!

0

5

Kohler M-561025-S

SCREW, SKT THD FRM M5X0.8X25

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 66 025 02-S

FLYWHEEL ASSEMBLY-USE 24 025 20-S
(Superseded to 24 025 20-S)

$235.99

$

Usually ships in 2-5 days

0

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 6

0

8

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

9

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

10

Kohler 66 144 09-S

SHAFT, FRONT DRIVE

$

$

Not available

11

Kohler M-839025-S

SCREW, FLG M8X1.25X25

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

Note: (USE WITH 25 403 07-S)

$24.99

$

In Stock, only 1 left!

0

13

Kohler 25 403 07-S

REGULATOR/RECTIFIER

Note: (USE BEFORE S/N 3418300011)

$

$

Not available

14

Kohler 25 403 09-S

REG-RECTIFIER (25 AMP)-USE 25 403 23-S
(Superseded to 25 403 23-S)

Note: (USE AFTER S/N 3418300001)

$156.99

$

Usually ships in 2-5 days

0

15

Kohler 236473-S

CONNECTOR

Note: (USE WITH 25 403 09-S)

$7.49

$

Usually ships in 2-5 days

0

16

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

17

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

18

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 4 left!

0

2515506-S

Kohler 25 155 06-S

CONNECTOR

Note: NOT ILLUSTRATED

$8.49

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0

2545206-S

Kohler 25 452 06-S

TERMINAL

Note: NOT ILLUSTRATED

$6.49

$

Usually ships in 2-5 days

0

X-22-5-S

Kohler X-22-5-S

WASHER, INT TOOTH LOCK 5/16"

Note: NOT ILLUSTRATED

$3.99

$

Usually ships in 2-5 days

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2545404-S

Kohler 25 454 04-S

TIE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

6651801-S

Kohler 66 518 01-S

LEAD

Note: NOT ILLUSTRATED

$11.99

$

Usually ships in 2-5 days

0

6617612-S

Kohler 66 176 12-S

HARNESS, WIRING ASSEMBLY

Note: NOT ILLUSTRATED

$54.99

$

Usually ships in 2-5 days

0
