LH685-3016 - Kohler Aegis Engine, Made for Walker Mfg., 23hp Crankcase Group 2-66-27 Parts Diagram

Aegis Engine, Made for Walker Mfg., 23hp

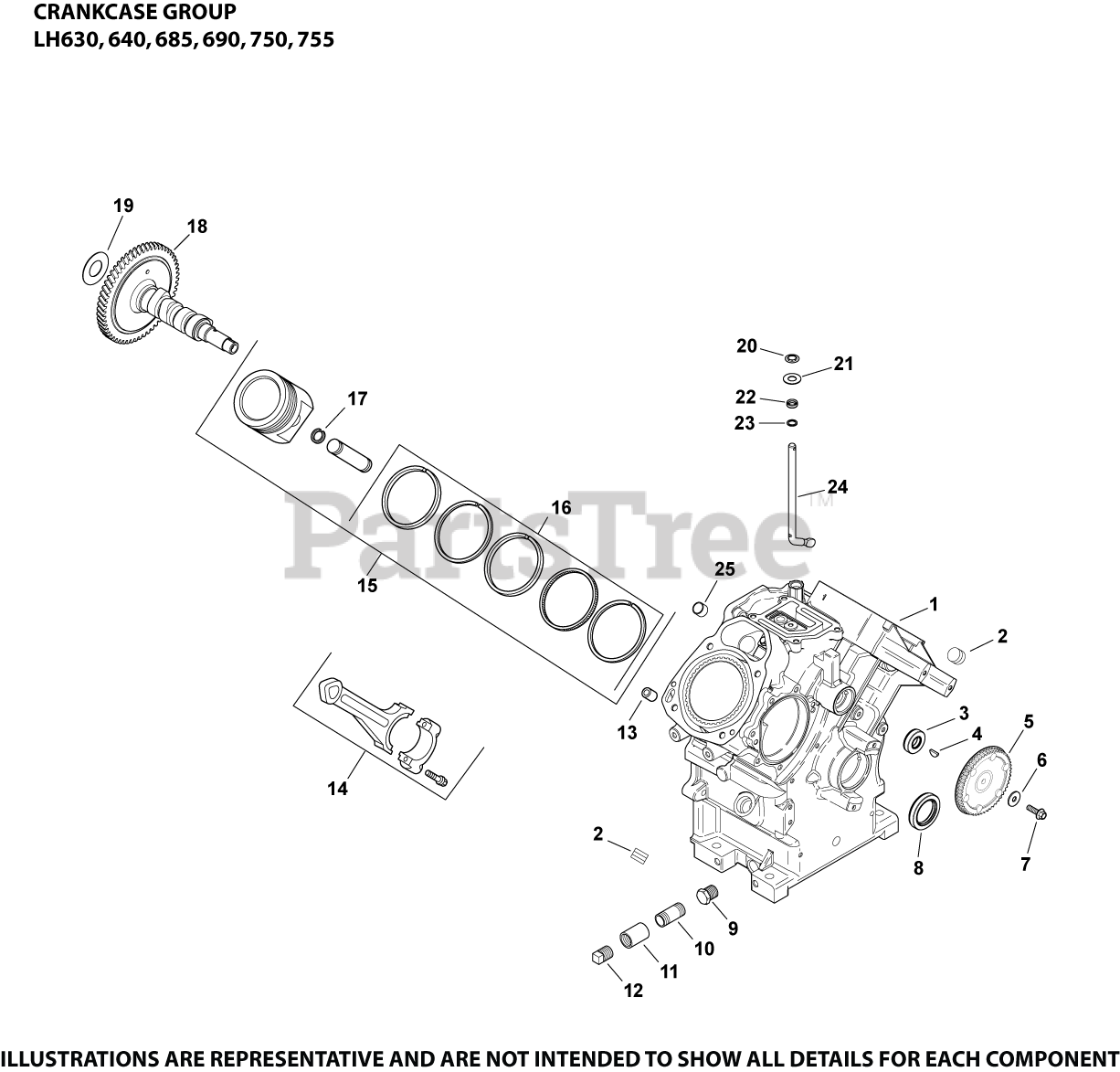

Crankcase Group 2-66-27 Parts Diagram

  • Title

1

CRANKCASE

Note: (USE SHORT BLOCK)

$

$

Not available

2

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

3

Kohler 66 032 07-S

SEAL, CAMSHAFT

$

$

Not available

4

Kohler X-42-2-S

KEY, 3/32" X 3/8"

$3.99

$

In Stock, only 1 left!

0

5

Kohler 66 093 01-S

SPROCKET, CAMSHAFT

$34.99

$

In Stock, only 1 left!

0

6

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

7

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, Qty 6

0

8

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

10

Kohler 12 136 07-S

NIPPLE, PIPE
(Superseded to 12 136 06-S)

$6.49

$

Usually ships in 2-5 days

0

11

Kohler 25 249 01-S

COUPLING, PIPE

$21.99

$

Usually ships in 2-5 days

0

12

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, only 3 left!

0

13

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

14

Kohler 24 067 28-S

ROD, ASSY CONNECTING (STD)-(#2406730S)
(Superseded to 25 067 04-S)

$59.99

$

In Stock, Qty 6

0

14

Kohler 24 067 29-S

ROD ASSY, CONNECTING U/S (.010”) (.25 mm) -USE 24 067 31-S
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

15

Kohler 24 874 42-S

PISTON W.RINGS, STYLE A STD
(Superseded to 24 874 54-S)

$250.99

$

In Stock, only 3 left!

0

15

Kohler 24 874 43-S

PISTON W/RINGS (STYLE A)(.08) - RING SET 24 108 19-S USE 24 874 55-S
(Superseded to 24 874 55-S)

$

$

Not available

15

Kohler 24 874 44-S

PISTON W/RINGS (STYLE A)(.25) - RING SET 24 108 20-S - USE 24 874 56-S
(Superseded to 24 874 56-S)

$289.99

$

Usually ships in 2-5 days

0

15

Kohler 24 874 45-S

PISTON W/RINGS (STYLE A)(.50) - RING SET 24 108 21-S

$289.99

$

Usually ships in 2-5 days

0

16

Kohler 24 108 18-S

RING SET (STYLE A)(STD) 1.5MM TOP RING THICKNESS USE PISTON ASSY PER SPEC - Discontinued
(Superseded to 24 108 19-S)

$

$

Not available

16

Kohler 24 108 19-S

RING SET (STYLE A) (.08) 1.5MM TOP RING THICKNESS -DISCONTINUED
(Superseded to 24 874 43-S)

$

$

Not available

16

Kohler 24 108 20-S

RING SET (STYLE A)(.25)1.5MM TOP RING THICKNESS - USE 24 874 44-S
(Superseded to 24 874 44-S)

$289.99

$

Usually ships in 2-5 days

0

16

Kohler 24 108 21-S

RING SET (STYLE A)(.50)1.5MM TOP RING THICKNESS
(Superseded to 24 108 29-S)

$146.99

$

Usually ships in 2-5 days

0

17

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

18

Kohler 66 012 01-S

KIT, CAMSHAFT

$247.99

$

Usually ships in 2-5 days

0

19

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

Usually ships in 2-5 days

0

19

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

19

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

19

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, only 1 left!

0

19

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

19

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

20

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

Usually ships in 2-5 days

0

21

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

22

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 7

0

23

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

24

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$41.99

$

Usually ships in 2-5 days

0

25

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, only 2 left!

0

2535714-S

Kohler 25 357 14-S

Lubricant, Camshaft/Lifter (0.25 oz.)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!
